Single - Stranded Wire Pulling Grips / Optical Fiber Cable Pulling Grips
Single - Stranded Wire Pulling Grips / Optical Fiber Cable Pulling Grips
Single - Stranded Wire Pulling Grips / Optical Fiber Cable Pulling Grips
Single - Stranded Wire Pulling Grips / Optical Fiber Cable Pulling Grips
Single - Stranded Wire Pulling Grips / Optical Fiber Cable Pulling Grips
Single - Stranded Wire Pulling Grips / Optical Fiber Cable Pulling Grips
Single - Stranded Wire Pulling Grips / Optical Fiber Cable Pulling Grips
Single - Stranded Wire Pulling Grips / Optical Fiber Cable Pulling Grips
Specifications
Brand Name :
Linkai
Model Number :
17141D
Certification :
ISO CE
Place of Origin :
NINGBO CHINA
MOQ :
10pcs
Price :
Get the latest
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
10000pcs/week
Delivery Time :
5-8 days
Packaging Details :
Wooden case packing
Model :
17141D
Type :
Mesh sock grip
Feature :
Single stranded
MOQ :
10PCS
License :
ISO CE
Optical cable diameter :
7-22mm
Description

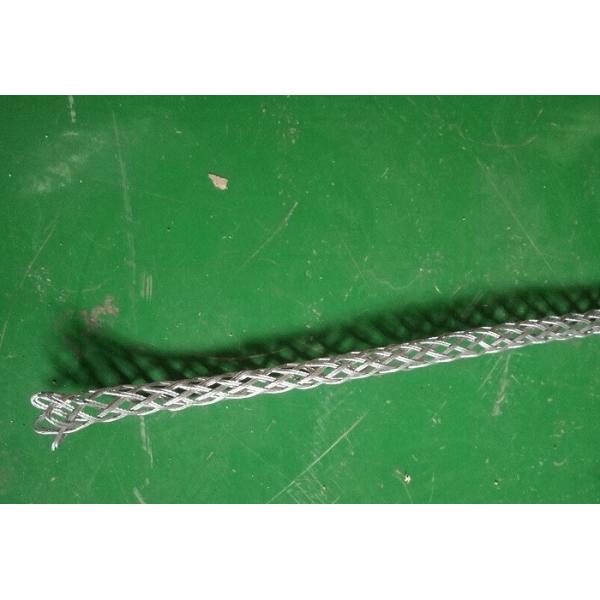

Single - Stranded Wire Pulling Gripper Optical Cable Pulling Gripper

OPGW Construction Mecsh Cable Sock Grips Application

This mesh cable gripper is used for the construction of APGW and ADSS,ADSS means all-dielectric self-suppoting optical fiber cable, OPGW refers to the optical power ground wire.

Operation Method:

OPGW Construction Mesh Cable Sock Grips Single Thimble Cable Mesh Sock Grip

1. Start the lacing from the eye end or anchoring end of the cable grip.

2.Thread the lace from through the first two loops of the split and pull.

3. Don not pull the lace too tight at this stage, leave a space between adjoin-ing loop roughly equal to the width.

4. As you continue the length, pull the open side of the grip, as wide apart as required.

5. Try to achieve an even and net lace-up as this assists with the strength of the grip when pulling.

6. Finally tie the end of the lace, once or twice round the end of the grip, twisting the end together securely, Excess lace can be cut off.

Item No Optical Cable Diameter(mm) Rated Load(kn) Length(mm)
17141D 7-11 3 200-270
17142D 11-15 4 270-350
17143D 15-17 4 270-350
17144D 17-22 5 300-400
