Specifications
Brand Name :
Linkai
Model Number :
DKT,JKD
Certification :
ISO CE
Place of Origin :
NINGBO
MOQ :
5pcs
Price :
Get the latest
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
20000pcs/month
Delivery Time :
5-8work days
Packaging Details :
Wooden case
Name :
Cable protective bend
Feature :
Galvanized
Weight :
light
Structure :
Plante with or withnot
Apply :
for single roller
Use :
Protect conductor
Description

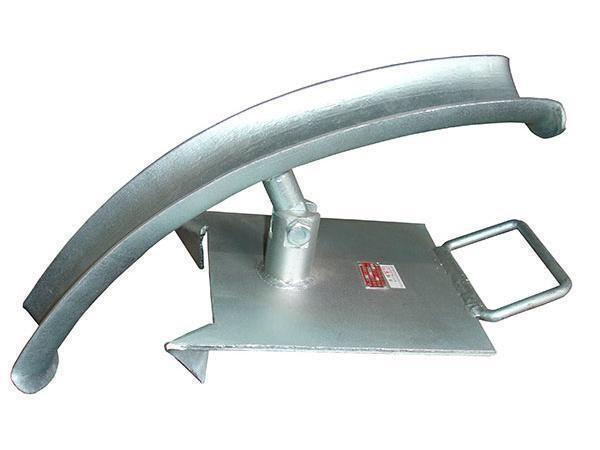

Cable Protection Bend Plate, Curved Cable Entrance Protective Sleeve

This cable protection bend plat plays a vital role in safeguarding the cable and pulling rope at the cable pithead. It is constructed from galvanized steel.

Technical Parameters

Item Number 21305 21307 21306 21308
Model JKD80 JKD100 JKD130 JKD150
Curvature Radius (mm) R400 R400 R500 R500
Maximum Through Diameter (mm) Φ80 Φ100 Φ130 Φ150
Weight (kg) 5 5.2 6.0 6.5

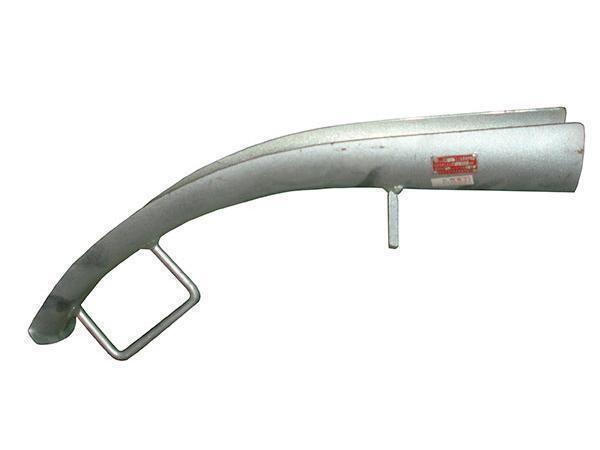

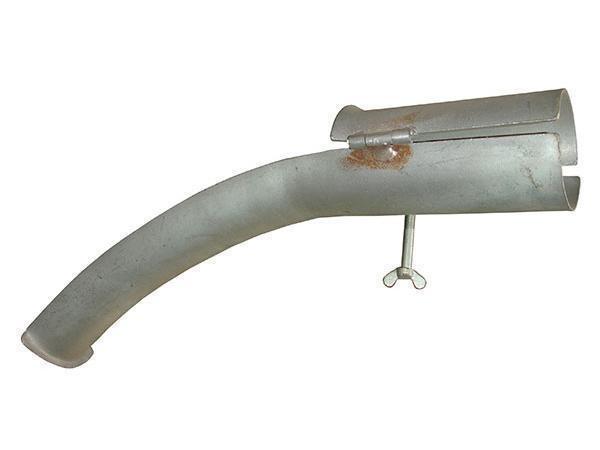

Curved Cable Entrance Protective Sleeve

This curved cable entrance protective sleeve can effectively avoid the damage to cable when entering the tube. The flare tube end comes with a turning angle of 30°.

Main Specifications

Item Number Specification Diameter of Applicable Tube End (mm) Weight (kg)
21316 DKT90W Φ90 1.35
21317 DKT100W Φ100 1.75
21318 DKT130W Φ130 3
21319 DKT150W Φ150 3.8

Our cable protective bend is made of galvanized steel material. It is extensively applicable to the protection of cable and pulling rope at the cable hole.

Main Specifications

Item Number 21321 21322 21322A 21325 21326
Structural Style A A A B B
Diameter of Tube (mm) Φ100 Φ130 Φ150 Φ100 Φ130
Curvature Radius (mm) R400 R450 R450 R400 R450
Weight (kg) 3.2 5.2 5.9 3.4 6
