Specifications
Brand Name :
LINGKAI
Model Number :
SLX
Certification :
ISO
Place of Origin :
NINGBO CHINA
MOQ :
5 SETS
Price :
get the latest
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
500 sets/month
Delivery Time :
3-10 days
Packaging Details :
wooden case packing
Bearing :
Jap,Germany
Application :
Pull conductors/OPGWpower cables
Rated load :
MAX 32 T
Name :
Line Stringing Swivels
Description

Swivel Joints are used for pulling conductors or OPGW cable on overhead transmission line,

or pulling underground power cable. It is always used with socket grips for pulling conductors, OPGW or power cables.

Swivel Joints Of Transmission Line Stringing Accessories

Line Stringing Swivels

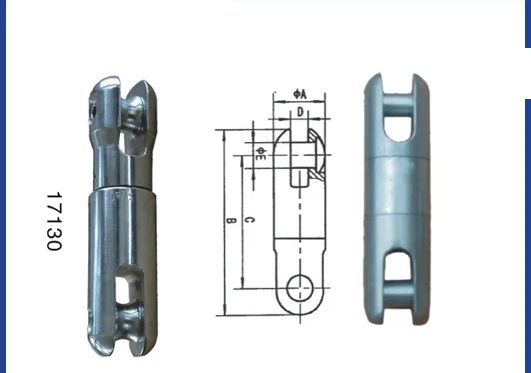

Item No. Model Dimension of Connector (mm) Rated Load (KN) Weight (kg)
A B C D E
17121 SLX-0.5 19 61 40 8 9 5 0.2
17122 SLX-1 30 100 72 12 13 10 0.4
17123 SLX-2 35 120 90 14 14 20 0.55
17124 SLX-3 37 129 92 16 16 30 0.65
17125 SLX-5 42 154 115 18 17 50 1.5
17126 SLX-8 57 220 165 24 22 80 2.4
17127 SL130 62 248 192 26 24 130 3.5
17128 SL180 75 294 222 26 26 180 7.2
17129 SL250 85 331 251 30 30 250 10.6
17130 SL250Y 80 323 243 30 30 250 8.0
17130A SL320 85 346 264 38 30 320 9.7

Application: It is used to pull conductors.

Constructed with ball bearings inside, to eliminate the torque force which stringing conductors.
The swivel joints are suitable to connect the pulling rope to the mesh sock joints mounted on the conductor.

They are made of high tensile galvanized alloy steel.

The special design can afford the high radial loads, which often happened during the passage of the pulleys.
