Specifications
Brand Name :
Lingkai
Model Number :
508mm
Certification :
ISO CE
Place of Origin :
NINGBO
MOQ :
20 sets
Price :
get the latest
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
1000sets/month
Delivery Time :
5-15 working days
Packaging Details :
exported packing
Packing :
container, plywood...
material of sheave :
nylon or aluminum alloy
conductor diameter :
up to 25mm
Width of sheave :
75mm or 100mm
inner diameter of sheave :
408mm
Outer diameter of sheave :
508mm
Description

508 X 75 Three Nylon Wheels Bundled Conductor Pulley Overhead Stringing Tools

The 508MM Overhead Conductor Stringing Blocks (Running out blocks) are used for overhead transmisson line conductor or OPGW stringing. The sheave of blocks is made in aluminum alloy lined with neoprene or high strength MC Nylon.

Application: It is suitable to string single, two or three, four stranded aluminum and ACSR conductors on tangent structures. Compression sleeves, swivel connectors, and pulling rope connectors can pass through the groove. The sheave is made in aluminum alloy or high strength nylon. The size 508X75 mm aluminum alloy sheave can be lined with neoprene.

Note:

1. Clevis fitting are optional, please specify when ordering. Customized blocks could be supplied on request. The data in the model means the outer diameter of sheave X width of sheave (mm).

2. All the sheaves are mounted on ball bearings. The frame of blocks is made in galvanized steel.

508MM Overhead Transmission Line Cable Stringing Blocks

Item No. Model ACSR Size Range (mm²) Working Load (KN) Weight (kg) Material of Sheave
10101 SHD508 300-400 20 18 Aluminum alloy
10104 SHDN508 300-400 20 16 MC Nylon
10104A SHDN508X100 300-400 20 17 MC Nylon
10102 SHS508 300-400 40 61 Central steel or Nylon sheave, Side sheave Aluminum lined with neoprene
10105 SHSLN508 300-400 40 47
10107 SHSQN508 300-400 40 43 Nylon, optional can be lined with neoprene
10107A SHSQN508X100 400 40 46
10108 SHWQN508 300-400 60 70
10108A SHWQN508X100 300-400 60 76

Aluminum sheave is die casted with high stregnth and light weight.

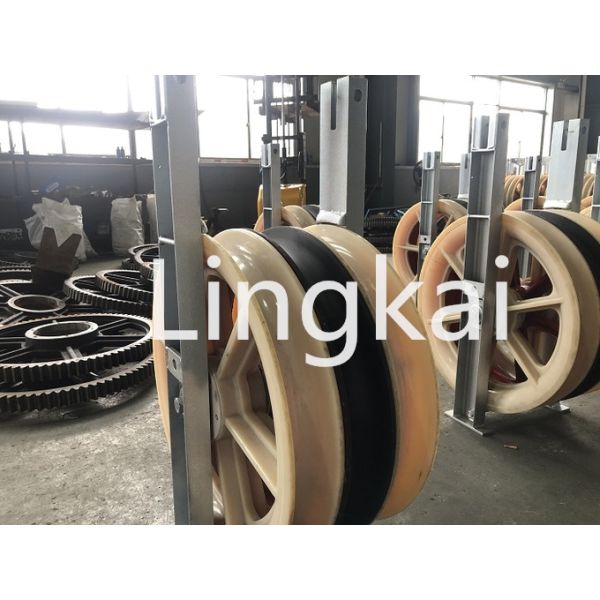

508X75mm 3 Nylon Wheels Bundled Overhead Conductor Stringing Blocks

508X75mm 3 Nylon Wheels Bundled Overhead Conductor Stringing Blocks
