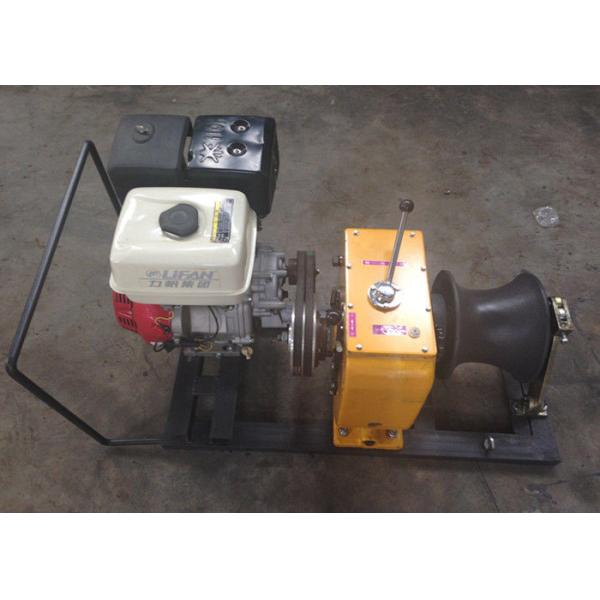

Petrol Driven 5 Ton High Speed Winch / Gasoline Powered Portable Capstan Winch
Petrol Driven 5 Ton High Speed Winch / Gasoline Powered Portable Capstan Winch
Petrol Driven 5 Ton High Speed Winch / Gasoline Powered Portable Capstan Winch
Petrol Driven 5 Ton High Speed Winch / Gasoline Powered Portable Capstan Winch
Specifications
Brand Name :
Linkai
Model Number :
JJM5b
Certification :
ISO
Place of Origin :
NINGBO CHINA
MOQ :
1set
Price :
Get the latest
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
100sets/day
Delivery Time :
3-5 work days
Packaging Details :
wooden case
Model :
JJM-5B
Engine :
Honda 390
Driven :
petrol
Force pulling :
5T
Type :
Cable Pulling winch
Apply :
Pulling rope
Description

5 Ton Gasoline Powered Capstan Winch Gearbox Honda Engine Cable Pulling Winch

Application

5 Ton Gasoline Powered Capstan Winch Gearbox is used for tower erection,pole setting,stringing wire in electrical power line construction.

It is mainly used for erecting air high-voltage transmission lines and the laying of underground cables, gasoline engine powered winch automatic clamp brake and clutch transmission chain brake two kind of braking device, in the opposite direction are positive, the braking action.

Gasoline Winch can be modified as per requirement, such as changing curve capstan into straight even cylindrical shape and coming with steel rope.

Features

1)Speedy and Efficient

2)Safe and Reliable

3)Compact structure

4)Widely used

5)Light weight

Technical Data

Model Gear Pulling Force(KN) Pulling Speed(m/min) Dimensions(mm) Weight(kg)
JJM-5B Fast 9 24 1100*525*600 180
Mid 15 14
Mid 30 9
Slow 50 5
