15mm Anti Twist Steel Wire Rope For Stringing Conductor In Overhead Transmission Line
15mm Anti Twist Steel Wire Rope For Stringing Conductor In Overhead Transmission Line
15mm Anti Twist Steel Wire Rope For Stringing Conductor In Overhead Transmission Line
15mm Anti Twist Steel Wire Rope For Stringing Conductor In Overhead Transmission Line
Specifications
Brand Name :
Lingkai
Model Number :
Anti-twisting wire rope
Certification :
ISO
Place of Origin :
Ningbo China
MOQ :
1000 M
Price :
get the latest
Payment Terms :
T/T, Western Union
Supply Ability :
100000 M/month
Delivery Time :
15 days
Packaging Details :
Steel drum packing
Packing :
Steel drum
ANTI TWIST WIRE ROPE :
15 mm
Standard Length :
1000 meters optional
lubrication :
Optional
Diameter of strand :
3.3 mm
Rated load :
143 KN
Description

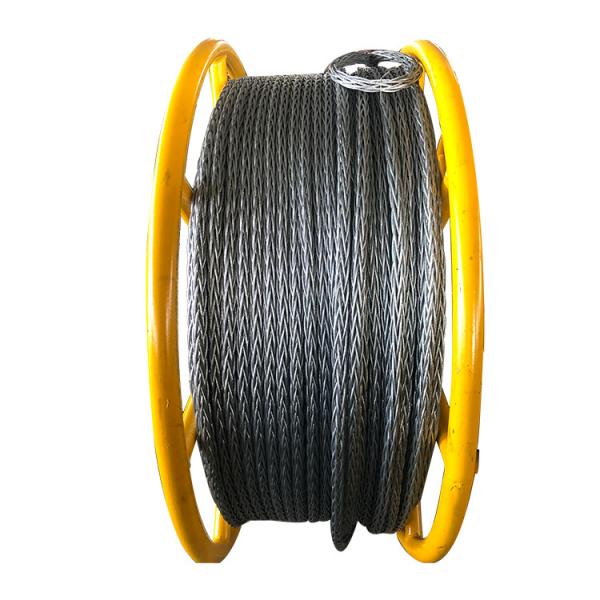

15mm Anti-Twist Steel Wire Rope For Stringing Conductor In Overhead Transmission Line

12 Strands Anti twisting braided steel wire rope

Item No. Nominal diameter Breaking Load (KN) Single strand diameter (mm) Normal T/S (N/mm²) Net Weight (kg/1000m)
18201A 9mm 50 kN 2.0mm 1960 250
18202A 10mm 70 kN 2.3mm 1960 356
18203A 11 mm 85 kN 2.5mm 1960 410
18204A 12 mm 100 kN 2.8mm 1960 510
18205A 13 mm 115 kN 3.0mm 1960 620
18206A 14 mm 130 kN 3.2mm 1960 710
18207A 15mm 143 kN 3.3mm 1960 770
18208A 16mm 160 kN 3.5mm 1960 800
18209A 18mm 206 kN 4.0mm 1960 1060
18210A 19mm 236 kN 4.3mm 1960 1210
18211A 20mm 266 kN 4.5mm 1960 1310
18212A 22 mm 316 KN 4.8 mm 1960 1500
18213 23 mm 342 KN 5.0 mm 1960 1650
18213A 24 mm 360 KN 5.2 mm 1960 1800
18214A 26 mm 400 KN 5.4 mm 1960 1950
18215A 28 mm 462 KN 6.0 mm 1960 2020

Anti twisting steel rope is specially braided from 12 strands of high strength, high flexible galvanized steel wire. The braided steel strand has high flexibility, complete stability to rotation under tension force.

It can homogeneously distribute the pressure between the elementary wires. The special rope can increase efficiency during the overhead transmission line stringing work. The rope is packed in steel drum which can be installed directly on the reel winder of puller.
