Aluminum Alloy Working Platform For Tower Conductor Joints Compression
Aluminum Alloy Working Platform For Tower Conductor Joints Compression
Aluminum Alloy Working Platform For Tower Conductor Joints Compression
Aluminum Alloy Working Platform For Tower Conductor Joints Compression
Aluminum Alloy Working Platform For Tower Conductor Joints Compression
Aluminum Alloy Working Platform For Tower Conductor Joints Compression
Aluminum Alloy Working Platform For Tower Conductor Joints Compression
Aluminum Alloy Working Platform For Tower Conductor Joints Compression
Specifications
Brand Name :
LINGKAI
Model Number :
KL16M, KL8M, LP4M
Certification :
ISO
Place of Origin :
NINGBO
MOQ :
2 SETS
Price :
GET THE LATEST
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
2000 SETS/MONTH
Delivery Time :
3-8 WORK DAYS
Packaging Details :
plywood board, plastic...
Description of Product :
Aluminum alloy working platform
Main type :
Simple type, Assemble type
Suspension type :
with side hanging point and central suspension plate
Max. Length of work platfor :
16 meters
Cross section :
350X450
Max. Working Load :
3 KN
Description

Aluminum Alloy Working Platform For Compression Of Conductor Joints On Tower

Working Platforms are used for conductor compression and sagging on tower. They are made of aluminum alloy, can be assembled with different length. The whole equipment include accessories wire ropes and connection parts.

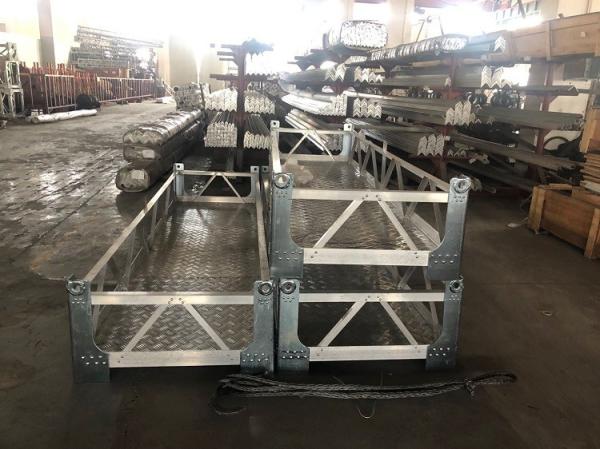

Frame Style Working Platform (Aluminum alloy)

Item No.: 22251

Technical data:

- Rated load (KN): 1.5

- Length (m): 4

- Hoisting points: 4

Application: Used on strain poles for clipping-in conductors or aerial compression joining operations etc.

Section dimension (mm): 350 x 450

Weight (kg): 32

Note: More load required, more suspension ropes are needed. The platform should be tested before use.

Aluminium Alloy Working Platform KL16m

Item No.: 22252

Technical data:

- Rated load (KN): 3

- Length (m): 16 (4+4+4+4)

- Hoisting points: 5

Application: It is used on tower for clipping-in conductors or aerial compression joining operations etc.

Section dimension (mm): 350 x 450

Weight (kg): 192

Note: More load required, more suspension ropes are needed. The platform should be tested before use.

We also designed and produced a few kinds of aluminum ladders for working on transmission line tower:

XT-2 Ladders for Working in Tagged-out Position

Item No. Rated load (KN) Length (m) Weight (kg) Suspension points
22221 1.5 2 9 4
22222 2 x 2 20 8
22223 2 x 2.5 22 8

Application: It is ideal for situations that the linemen are required to work from the ladders in a tagged position, such as clipping-in conductors. It is made from aluminum alloy.

Aluminum Alloy Working Platform For Tower Conductor Joints Compression
