25kn Conductor Lifting Tools For Stringing Bundled Conductors
25kn Conductor Lifting Tools For Stringing Bundled Conductors
25kn Conductor Lifting Tools For Stringing Bundled Conductors
25kn Conductor Lifting Tools For Stringing Bundled Conductors
25kn Conductor Lifting Tools For Stringing Bundled Conductors
25kn Conductor Lifting Tools For Stringing Bundled Conductors
Specifications
Brand Name :
Lingkai
Model Number :
ST25R ST50R ST50S ST100S
Certification :
ISO
Place of Origin :
NINGBO
MOQ :
2sets
Price :
get the latest
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
5000 sets.month
Delivery Time :
3-8 work days
Packaging Details :
Wooden case packing
Model :
ST25R ST50R ST50S ST100S
Working load :
25KN, 50KN, 100KN
Weight :
13-97 kgs
Number of conductors :
2, 3, 4, 6
Description :
Conductor Lifting Tools Hooks
Packing :
plywood case
Description

Conductor Lifters are used for lifting bundled conductors in sagging operation after stringing. We design and produce different types of lifting tools according to different working load and bundled conductors

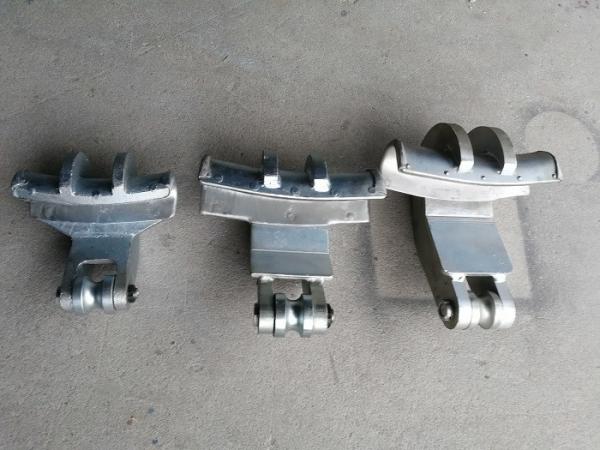

Conductor Lifting Plate Hooks

Item No. Model Work load (KN) Lining Length (mm) Lining Width (mm) Weight (kg)
19101 ST8 8 60 36 1
19102 ST12 12 120 48 2.5
19103 ST25 25 200 40 7
19104 ST40 40 260 50 10.5
19105 ST60 60 265 60 12

Application: Lifting hooks are used for lifting conductors on transmission line. Customer can use it to assemble different conductor lifter according to their requirement.

Note: Groove of hook is covered with an aluminum lining to eliminate damage to the conductor.

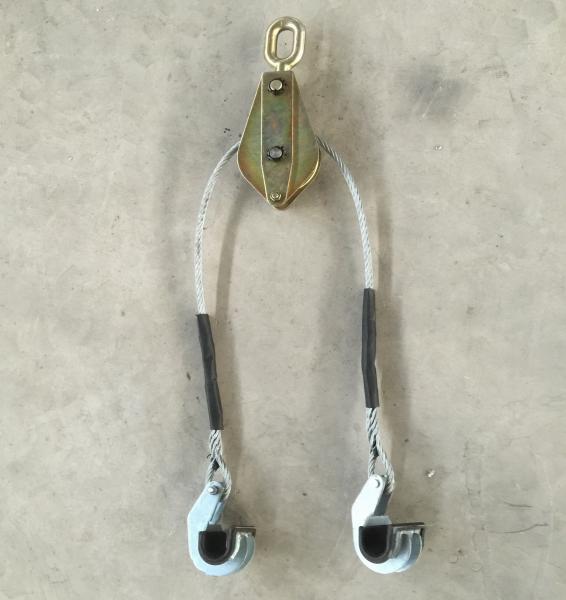

Lifting Tools for Bundled Conductors

Item No. Model Work load (KN) Lining Length (mm) Weight (kg)
19112 ST25R 2 x 12 120 13
19113 ST50R 2 x 25 200 26
19114 ST80R 2 x 40 260 40

Application: Conductor Lifting Tools are used for lifting 2 bundled conductors on transmission line in sagging operation or maintenance operation.

Note: Groove of hook is covered with an aluminum lining to eliminate damage to the conductor

Lifting Tools for 4 Bundled Conductors

Item No. Model Work load (KN) Lining Length (mm) Weight (kg)
19115 ST50S 4 x 12 120 35
19116 ST100S 4 x 25 200 67
19117 ST160S 4 x 40 260 97

Application: Conductor Lifting Tools are used for lifting four bundled conductors on transmission line in sagging operation or maintenance operation.

Note: Groove of hook is covered with an aluminum lining to eliminate damage to the conductor.
