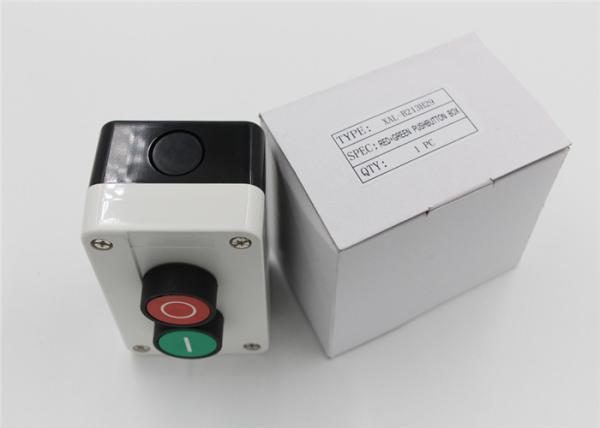

Anti - Shock Push Button Electrical Switch Push Button On Off Switch Insulation Resistance

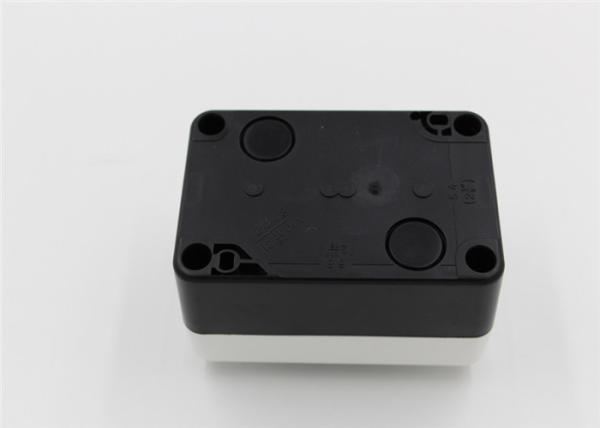

Anti - Shock Push Button Electrical Switch Push Button On Off Switch Insulation Resistance
Anti - Shock Push Button Electrical Switch Push Button On Off Switch Insulation Resistance
Anti - Shock Push Button Electrical Switch Push Button On Off Switch Insulation Resistance
Anti - Shock Push Button Electrical Switch Push Button On Off Switch Insulation Resistance
Anti - Shock Push Button Electrical Switch Push Button On Off Switch Insulation Resistance
Specifications
Brand Name :
OEM
Model Number :
XAL-B213H29
Certification :
CE,RoHS,TUV
Place of Origin :
ZHEJIANG,CHINA
MOQ :
500PCS
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
3000 Piece/Pieces per Day
Delivery Time :
15days after received payment
Packaging Details :
1pcs Inner Package box; 100pcs/CTN;
Protection Level :
IP65
Max. Current :
16A
Max. Voltage :
380V
Input Voltage :
DC 6V,12V,24V,48V; AC 110V,220V,380V
Button color :
Green+Red
Switch Contact :
1N/O+1N/C
Operation type :
Self-locking
Material :
ABS+Brass+Composite silver contact
Description

XB2 Series Push Button Switch Red/Green/Yellow/White/Blue/Black Color

Technical Specification:

  1. Operating temperature:-25C-55C(no freezing)The average value in 24 hrs no more than＋35℃
  2. Operating humidity:45～85％rh; 45～85％rh(no condensation)
  3. Contact resistance: ≤30mΩ
  4. Life---Mechanical: Momentary:＞2000000 times: alternate, selector＞1000000 times: key-lock, emergency＞1000000 times
  5. Life---Electrical: ＞500000tmes
  6. Terminal: Screw terminal, connecting ability:min:1x0.5mm2 max:1x2. 5mm2 or 2x1.5 mm2(with or without connecting link)
  7. Operation: 80gf-2200gf, according to the quantity of switch units Operation travel: About 5. 5mmm (For push button type)
  8. Pollution Degree: 3 degree

Switch Rating:

Ui Nominal Insulation Voltage(Ui) 440V
Thermal Current(Ith) 10A Temperature no more than rated current
Rated Voltage(V) 24V 48V 110V 220V 380V 500V
Working Current AC
50/60Hz		 AC-12 10A 10A 10A 6A 6A 6A
AC-15 10A 10A 6A 3A 1.8A 1.4A
DC DC-12 8A 4A 2.2A 1.1A 1.1A 1.1A
DC-13 4A 2A 1.1A 0.6A 0.6A 0.6A
Contact Material Silver Alloy


Lamp Specifications:

Power Type AC/DC LED Light-emitting diodes
Rated Voltage AC/DC 6V AC/DC 12V AC/DC 24V
AC 110V AC 220V AC 380V
Lamp Life 40,000 Hours
Lamp Color R/G/Y/W/B/b


The Installation Hole Size:
Anti - Shock Push Button Electrical Switch Push Button On Off Switch Insulation Resistance

Push Button Type A B C
Normal Type,Key-Lock ≥50mm ≥40mm 22mm
Selector Switch Type ≥55mm ≥40mm
Mushroom Type ≥50mm ≥50mm

Model Specification:
Contact Structure:
10 ---1NO;
01 ---1NC;
11 ---1NO1NC;
22 ---2NO2NC;
33 ---3NO3NC;
44 ---4NO4NC;
Normal Closed and Normal open can be combined at will;


Express selector and key-lock operation position:
21 ---Two Position maintain type
22 ---Two Position momentary type
31 ---Three Position maintain type
33 ---Three Position momentary type

Color: Red/Green/Yellow/White/Blue/black

Protective degree: FP IP67; No letter means IP40

Normal working conditions:

1.Environment Temperature:-25℃~+55℃
2.Air Relative Humidity:≤98%
3.Normal work when the vibration frequency is 2~80Hz,the acceleration is 0.79g
4.Pollution grade is three,and installed sort is Ⅲ,protection grade is above IP65.
5.Altiude:≤2000m.
6.Mechanical Life: Momentary:＞2000000 times: alternate, selector＞1000000 times: key-lock, emergency＞1000000 times.
7.Shock Resistance: mushroom button 8g,buttons and LED 15g(40Hz<Frequency<500Hz)
8.Workability of contact point:AC-15:A600 or Ue=240V and Le=3A
DC-13:Q600 or Ue=250V and Le=0.27A comply IEC60947-5-1
9.Rated insulation voltage: Ui=440V,pollution degree 3,comply to IEC60947-5-1,Ui=600V


Further information:

1. Plastics materials: all raw materials are brand-new and second-hand materials are forbidden. Furthermore some of them are supplied by super branding companies like DSM, Mitsubishi.

2. There is just one level of quality as A in MEIHENG and we are aim to provide the excellent articles to our clients and help them gain more market shares.

3. ODM: we are providing ODM services to the super companies (more than 15) who are top-10 electrical industrial companies in their country. Just show us your ideas and we will present a solution.

FAQ

A. How's the delivery time?
Depend on your quantity, usually within 20days after receiving deposit

B. Would you accept OEM/ODM service?
Glad to say that there is planning department, technical department and mould tooling center in
our factory. For the OEM & ODM, it is ok for us if your brand, market shares are great.
