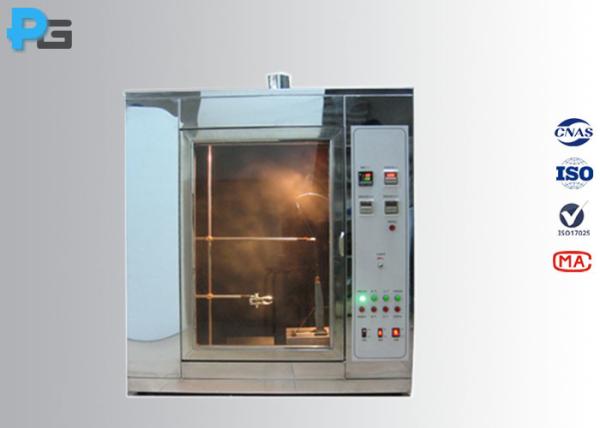

Needle Flame Electrical Safety Test Equipment IEC60695-11-5 With CNAS Certification
Needle Flame Electrical Safety Test Equipment IEC60695-11-5 With CNAS Certification
Needle Flame Electrical Safety Test Equipment IEC60695-11-5 With CNAS Certification
Needle Flame Electrical Safety Test Equipment IEC60695-11-5 With CNAS Certification
Specifications
Brand Name :
PEGO GROUP
Model Number :
PG-NF
Certification :
Third-Lab Calibration Certificate
Place of Origin :
China
MOQ :
1 set
Price :
USD3500~4000
Payment Terms :
T/T, Western Union
Delivery Time :
15 working days
Packaging Details :
woodencase
Standard :
IEC60695-11-5
Warranty :
1 year
Power :
220V/60Hz
Size :
1000mm(W)*650mm(D)*1300mm (H)
Description

IEC60695-11-5 Needle Flame Tester for electronic Appliance with CNAS Certificate

1. Introduction

Needle flame tester is designed according to IEC60695-11-5(IEC60695-2-2). It is applicable to ignition hazard test, combustibility test of electronic industry and home electronic appliance. The equipment specifies a needle-flame test to simulate the effect of a small flame which may result from fault conditions, in order to assess product and material’s ignition risk and fire retardance by a simulation technique the fire.

The Needle Flame Tester consists of a dia.0.9mm needle burner that tilts to 45 degree from the vertical and is fueled with butane gas. The fire hazard of the specimen is assessed by measuring the burning duration of the specimen, and any ignition of the wrapping tissue and white pine board below the specimen.

The shell and important parts of the equipment are made by stainless steel, sculpt daintily, endure smoke corrupt, high automatism, high reliability of key parts of apparatus, numeric shows. Fixture could be adjusted. Test procedure could be controlled automatically.

2. Specification

Burner

Φ 0.5mm ± 0.1mm, outer dia.: ≤Φ 0.9mm

Length: 35mm, made by stainless steel.
Burner angle 450 or 900
Application time 0-999.9s±0.1s adjustable (normally 30s)
Burning duration 0-999.9s±0.1s auto record, manual pause
Flame height 12mm ± 1mm (with height gauge)
Burn gas 95% butane gas
Temperature range 0-10000C
Flame requirement rising time from 100℃±2℃ to 700℃±3℃ should within 23.5s±1s
Thermocouple Φ0.5mm K type thermocouple
Experimental background black background
Test period auto control
Standard IEC60695-11-5 (IEC60695-2-2), GB/T51669.5, GB4706.1
Working dimension 0.5CBM, made by stainless steel
Equipment size 1000mm(W)*650mm(D)*1300mm (H)
Power supply AC220±10%, 50Hz, 0.3KVA
