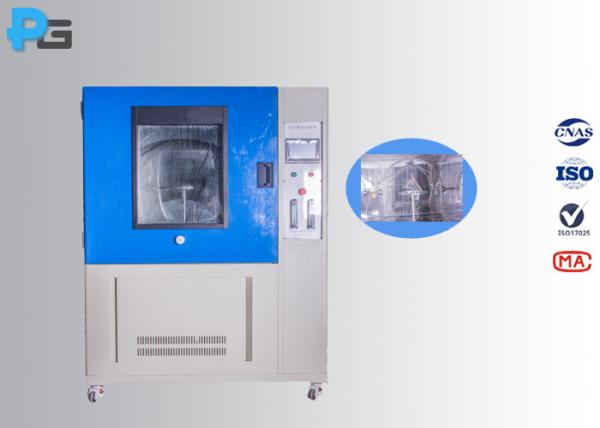

Spray Proof Environment Test Equipment 1 -20 R / Min Turntable Speed For Auto Parts
Spray Proof Environment Test Equipment 1 -20 R / Min Turntable Speed For Auto Parts
Spray Proof Environment Test Equipment 1 -20 R / Min Turntable Speed For Auto Parts
Spray Proof Environment Test Equipment 1 -20 R / Min Turntable Speed For Auto Parts
Specifications
Brand Name :
PEGO
Model Number :
JISD0203
Certification :
Third-Lab Calibration Certificate
Place of Origin :
China
MOQ :
1 set
Price :
USD12000~USD18000
Payment Terms :
T/T, Western Union, MoneyGram
Delivery Time :
30 working days
Packaging Details :
woodencase
Standard :
JIS D0203
Material :
stainless steel
Application :
auto parts
Working power :
380V/50Hz
Type :
box type
Shippment :
by sea
Description

JISD0203 Auto Parts Sprayproof and Jet - Proof Test Machine for S1 / S2 / R1 /R2 Testing

1. Introduction

The IP waterproof test machine is designed according to the IP code no. IPX3/4/4K of IEC60529:1989+A1:1999 and ISO20653 standard. It’s also met the requirements of R1, R2, S1, and S2 of JIS D0203 standard.

2. Features:

1). It’s suitable to the IPX3, IPX4, IPX4K waterproof test, and JIS D0203 R1/R2/S1/S2 spray water test.

2). The shell of the equipment is made by high quality steel plate, and the inner chamber of the equipment and the turntable is made of SUS304# stainless steel.

3).Box-type structure with water tank, a transparent window in the door and LED light installed the cabbinet wich easy to observe the test.

4). The flow and pressure of IPX3/4 tube and JIS nozzle are manual controlled on the panel

5). Turntable driven: speed and angle can be set on the LCD screen

6). Adopt Taiwan Weilun 7 inch screen and Panasonic PLC

7). R1, R2, S1, S2 can work alone or at the same time, IPX3 and IPX4 can work independently

3. Parameters:

Working Chamber Size 1000*1000*1000mm (L*D*H)
Dimension 1500*1380*2000mm (L*D*H)
Turntable Diameter ￠400mm
Turntable Load Weight 50KG
Lifting height 450-750 mm
Turntable Speed 1 -20r/min
Turntable Angle 0° or 15° (Horizontal)
Test Time 0-999 min
Weight About 250kg
Parameters of IPX3/4
Rube Radius 400mm
Tube Flow

IPX3=1.1L/min; IPX4=1.8L/min

IPX4K=15L/min(0-18L/min adjustable)
Pressure IPX3=80Kpa, IPX4=80Kpa; IPX4K=400Kpa (0-500Kpa adjustable)
Aperture of drop (mm) IPX3-4=0.4mm, IPX4K=0.8mm
Aperture interval 50mm
Tube inner diameter 15mm
Tube angle 120º (IPX3), 350º (IPX4) or custom setting
Tube speed Back and forth at 1200: 4s; back and forth at 3600:12s
Parameter of JIS D0203 R1/R2
Rain nozzle Strictly designed according to the figure of JIS D0203 standard
Pressure R1=0.01MPa, R2=0.03MPa
Nozzle number 2pcs
Spray water time range 0～99h59m, settable
Tube rotates around the shaft 1～23r/min, adjustable
Parameter of JIS D0203 S1/S2
Spray Nozzle Strictly designed according to the figure of JIS D0203 standard
Pressure S1=0.1MPa, S2=0.3MPa
Nozzle diameter Φ1.2mm
Nozzle number 40pcs
Spray water time range 0～99h59m, settable
Tube rotates around the shaft 1～23r/min, adjustable
Electric Parameter
Power supply 220V
Power supply of specimen 220V
Power 1.0KW
Safety protection function Leakage protection, water shortage protection, short circuit protection

Pictrues:

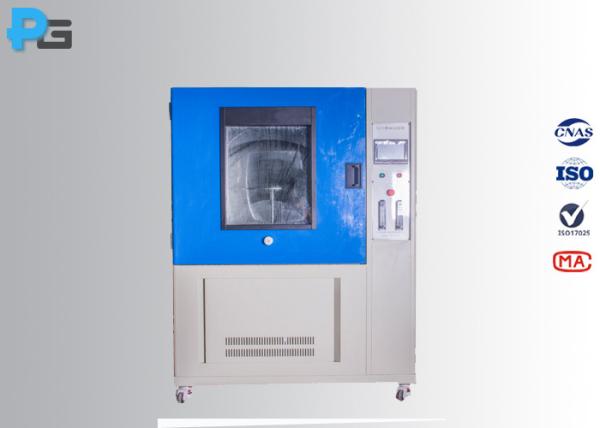

Spray Proof Environment Test Equipment 1 -20 R / Min Turntable Speed For Auto Parts
