IEC60695-2-10 High Precision Electrical Safety Test Equipment 1000℃ Glow Wire Test Apparatus
IEC60695-2-10 High Precision Electrical Safety Test Equipment 1000℃ Glow Wire Test Apparatus
IEC60695-2-10 High Precision Electrical Safety Test Equipment 1000℃ Glow Wire Test Apparatus
IEC60695-2-10 High Precision Electrical Safety Test Equipment 1000℃ Glow Wire Test Apparatus
Specifications
Brand Name :
PEGO
Model Number :
ZRS-2
Certification :
Third-lab calibration certificate
Place of Origin :
China
MOQ :
1 set
Price :
USD3100-USD4500/set
Payment Terms :
T/T, Western Union, MoneyGram
Delivery Time :
15 working days
Packaging Details :
each packed in a wooden case, 115*75*144cm
Standard :
IEC60695-2-10
Material :
Stainless Steel
Thermocoupler :
0.5mm, K type
Glow wire temperature :
500~1000℃±2℃
Weight :
140KG
Condition :
New
Power :
Electronic
Function :
Fire testing equipment
Description

IEC60695-2-10 High Precision Electrical Safety Test Equipment 1000℃ Glow Wire Test Apparatus

1. Introduction

The glow wire test apparatus is designed according to IEC60695-2-10, UL746 and GB/T5169.10. The specific material and sharp heating wire is heated to specific temperature (550 ℃~960 ℃) for 1 min by max current, then vertical burns the EUT with certain pressure (1.0N) for 30s, then check if the test specimen and bedding material are burning, and count the burning time to judge the dangerousness of the specimen. Generally it is applied to test flammability, GWIT and GWFI of lighting lamps, electronic products and household appliances The equipment is applicable to flame resistance test of all levels of QC departments and corresponding enterprises.

2. Parameter

Glow wire temperature

500~1000℃±2℃

Glow time

0-999.9s±0.1s (auto record)

Burning time

0-999.9s±0.1s (auto record)

Flame Chilling time

0-999.9s±0.1s (auto record)

Thermocouple

Φ0.5mm, K type

Glow wire

Φ4mm nichrome wire

Pressure on test specimen

1N±0.2N

Depth

7mm±0.5mm

Test speed

14mm/s

Temperature Monitor

A thermocouple is placed at a distance of 100 mm between the glow wire device and the back panel of the cabinet, and an external temperature display instrument is provided

Flame Height

Measuring with a steel ruler

Thermal radiation baffle

Automatic masking

Standard Silver Foil

Thickness:0.06mm

Purity:≥99.8%

Area: 2mm2

Ignition mat

White pine board with thickness of 10mm is covered with a layer of 12~30g/m2 wrapping tissue, 200±5mm below the sample.

3. Standards and Clauses

- IEC60695-2-10 "Fire Hazard Testing - Part 2-10: Glowing/hot-wire based test methods - Glow-wire apparatus and common test procedure"

- IEC60695-2-11 "Fire Hazard Testing -Part 2-11: Glowing/hot-wire based test methods - Glow-wire flammability index (GWFI) test method for materials"

- IEC60695-2-12 "Fire Hazard Testing - Part 2-12: Glowing/hot-wire based test methods - Glow-wire flammability index (GWFI) test method for materials"

- IEC60695-2-13 "Fire Hazard Testing - Part 2-13: Glowing/hot-wire based test methods - Glow-wire ignition temperature (GWIT) test method for materials"

4. Structure:

The glow wire test apparatus is controlled by single chips and push buttons, the chamber is made of coating metal sheet, the test apparatus is built-in air exhaust, and the front panel is transparent for easy observation of the experimental process.

5. Pictures:

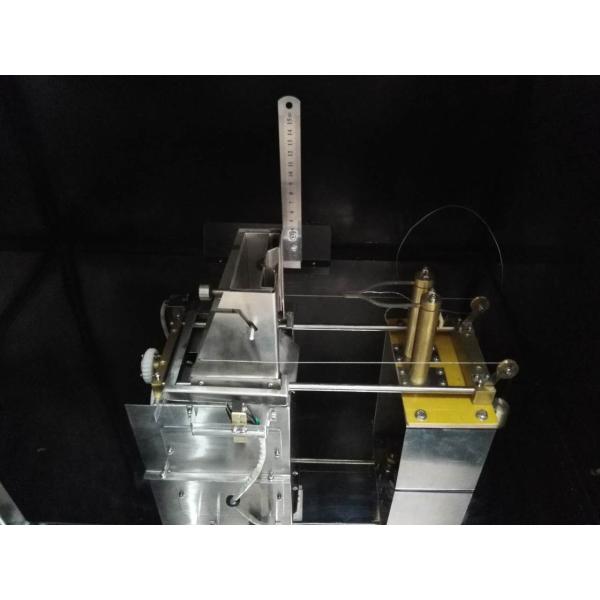

IEC60695-2-10 High Precision Electrical Safety Test Equipment 1000℃ Glow Wire Test Apparatus

IEC60695-2-10 High Precision Electrical Safety Test Equipment 1000℃ Glow Wire Test Apparatus
