UL746A High Current ARC 32.5A Ignition Test Apparatus PLC Control
UL746A High Current ARC 32.5A Ignition Test Apparatus PLC Control
UL746A High Current ARC 32.5A Ignition Test Apparatus PLC Control
UL746A High Current ARC 32.5A Ignition Test Apparatus PLC Control
Specifications
Brand Name :
PEGO GROUP
Model Number :
PG-DYR
Certification :
Third-Lab Calibration Certificate
Place of Origin :
China
MOQ :
1 set
Price :
USD5500~USD6000
Payment Terms :
T/T, Western Union, MoneyGram
Delivery Time :
20 working days
Packaging Details :
woodencase
Standard :
UL746A, IEC60947.1
Test current :
32.5A
Test power factor :
COSφ0.5
Control system :
PLC
Warranty :
12 months
Name :
ARC Ignition Test Apparatus
Description

UL746A High Current ARC Ignition Test Apparatus 32.5A / COSφ0.5 PLC Control

1. Introduction:

The high current arc ignition test apparatus is designed according to IEC60950-1:2001 clause 4.7.3.6, BS/EN60950-1:2001, BS7002:2001, GB4943-2001 and UL746A, IEC60947.1:1999, GB/T14048.1-2000, IEC730.1:1993, GB14536.1-1998 and etc.. It’s used to measure and assess solid insulating material against to resistance to ignition from arcing electrical sources.

A power 240V(AC)/60Hz is to be supplied to the test electrodes (fixed electrode and movable electrode), a series (inductive-resistive) air core impedance is to be provided to yield a short circuit current of 32.5A and a power factor of 0.5. The sample is be to positioned with the electrodes making initial contact on the surface of the sample, the circuit is to be energized and the cyclic arcing started. The timing of arcs is to be adjusted to a rate of 40 arcs/min, the rate of electrode separation is to be 254±25mm/s, the test is to be continued until ignition of the sample occurs, a hole is burned through the sample, or until a total of 200 cycles has elapsed. The high-current ignition performance level is to be assigned base on the mean number of arcs to caused ignition.

2. Parameters:

Control mode PLC
Station 1 station
Electrodes

1). Material: copper (fixed electrode), stainless steel (movable electrode )

2). Size: 3.2mm in diameter, 152mm overall length and 300 chisel (fixed electrode), 3.2mm in diameter, 152mm overall length, 600 conical (movable electrode)
Electrode included angle 45° to the horizontal
Test voltage 240V
Arc ignition current 32.5A±5%A (adjustable)
Arc ignition power factor COSφ0.5±0 (adjustable)
Arc ignition speed 254mm/s±25mm/s
Arc ignition frequency 40 arcs/min (adjustable)
Arc times 200 times (1~9999 times, digital display, presettable)
Sample size 127mm*12.7mm*(2~12)mm
Power supply 220V/50Hz, 10kVA

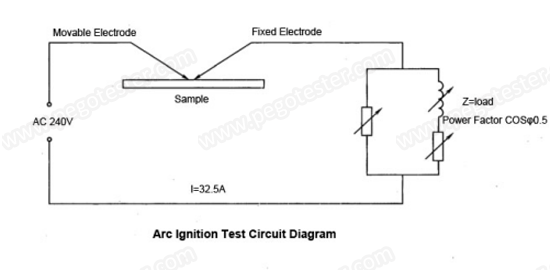

3. Test Circuit

UL746A High Current ARC 32.5A Ignition Test Apparatus PLC Control
