IPX9K High Pressure and Temperature Water Ingress Protection Test Chamber ISO20653 For Auto Parts
IPX9K High Pressure and Temperature Water Ingress Protection Test Chamber ISO20653 For Auto Parts
IPX9K High Pressure and Temperature Water Ingress Protection Test Chamber ISO20653 For Auto Parts
IPX9K High Pressure and Temperature Water Ingress Protection Test Chamber ISO20653 For Auto Parts
Specifications
Brand Name :
PEGO GROUP
Model Number :
PG-IP9K
Certification :
Third-Lab Calibration Certificate
Place of Origin :
China
MOQ :
1 set
Price :
USD8000~USD15000
Payment Terms :
Western Union, T/T, MoneyGram, paypal
Delivery Time :
30 working days
Packaging Details :
woodencase
Standarrd :
ISO20653 figure 8 and 9
Material :
SUS304
Type :
test chamber
Working Power :
220V/50Hz
Shippment :
by sea
Warranty :
12 months
Description

ISO20653 IPX9K Ingress Protection test chamber High Temperature High Pressure for Auto Parts

1. Introduction

IPX9K testing is the most strictly IP rating, it is applied to test all auto parts besides the passenger compartment. The reference standards includes ISO20653 and DIN40050-9.IPX9K fan jet and jet distribution for test device to verify protection against high pressure/steam jet cleaning. It is applied to electrical equipment in road vehicles, motors, electric components and auto parts to do the waterproof test. After the test, the user can judge if the performance of the product can meet the requirements or not, and then do the re-designing and improvement.

The Test chamber is controlled by touch screen and PLC, the test procedure can be observed via transparent viewing window, the water applied to test can be recycled, and the equipment has protection device if leakage, water break and short circuit.

2. Features

1). high-quality steel plate, coating with stoving varnish.

2). The chamber inner and support are made by SUS304# stainless steel.

3). Adopts 7 inch touch screen and PLC core control component, easy to operation and auto control.

4). Adopts high quality stepping motor, set the speed and angle by touch screen.

5). IPD temperature control, set the temperature by touch screen.

6). Test time: 0-999min adjustment, auto stop.

7). Communication function optional, can work with PC to save the data.

3. Specification

Model IPX9K
Inner size L1000*D1000*H1000mm (depends on the specimen)
External size L1400*D1180*H1850mm
Test time 30S for each position
Jet angle 0°30°60°90°
Numbers of jet 4
Diameter of turntable 400mm
Lifting mode of turntable Fixed type
Spray distance 100-200mm (manual control)
Water pressure 8000-10000Kpa
Water flow 14～16L / min
Temperature 250C (room temperature), 80±5℃
Test time 120s (30s/position)
Rotational Speed 4～10r/min(adjustable)
Bear weight 50kg
Protection device Leakage, water break, short circuit
Power(V) 380V/50Hz
Sample Power (V) 220V
Power(KW) 10

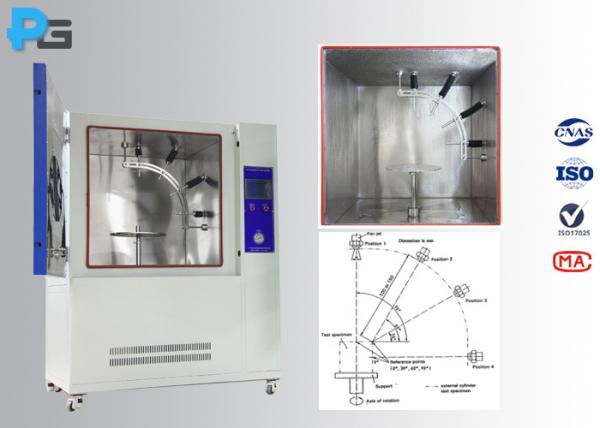

4. Picture:

IPX9K High Pressure and Temperature Water Ingress Protection Test Chamber ISO20653 For Auto Parts

5. Comparsion between test chamber and standard ISO20653

Item Standard requirement (ISO20653) IPX9K test chamber
Temperature requirement 80±5℃ 250C (room temperature)~ 80±5℃
Pressure requirement 8000~10000Kpa 8000-10000Kpa
Jet angle 00, 300, 600, 900 0°30°60°90°
Quantity of nozzles 4 4
Turntable speed 5±1r/min 5r/min
Delivery rate 4L/min~16L/min 14～16L / min
Test time 30s/angle *4 30S for each position
schematic diagrams IPX9K High Pressure and Temperature Water Ingress Protection Test Chamber ISO20653 For Auto Parts IPX9K High Pressure and Temperature Water Ingress Protection Test Chamber ISO20653 For Auto Parts
