Specifications
Brand Name :
PEGO
Model Number :
PG-CSV
Certification :
Third-lab Calibration Certificate
Place of Origin :
China
MOQ :
1set
Price :
USD1000-USD1500/set
Payment Terms :
T/T, Western Union, MoneyGram
Delivery Time :
15 working days
Packaging Details :
Each packed in a carton box
Reference :
GB21456 Annex A
Material :
Q235 steel having a maximum carbon contents of 0.08%
Size :
140mm, 200mm, 220mm, 280mm
Usage :
to test energy efficiency of household induction cookers
OEM :
YES
Warranty :
1 Year
Description

PG - CSV Electrical Test Instruments Low Carbon Steel Vessels Meet the Requirements of GB21456 Annex A

1. Standard:

GB21456-2014 Annex A

2. Introduction

The standard pan is designed according to annex A, GB21456-2014, it is applied to evaluate the energy efficiency and energy efficiency grades. The pan and the lid are made of Q235 having a maximum carbon content of 0.08%, and the thickness of the lid (t) is 1mm, the bottom of the pan can not convex outward, and the maximum concavity at the bottom is 0.6% times the effective diameter. The surface of the pan and the lid should be smooth and polished to prevent rust.

3. Features:

1) The vessels are made of Q235, having a maximum carbon content of 0.08%

2) Vessels' body and the cover surface should be smoothly, and sand rust surface treatment.

3) Thickness of the cover is 1mm, body thickness “t” of the vessel please check the figures

4) The base of the vessel shall not be convex. The concavity of be base of the vessel shall not exceed 0.006d.

4. Parameter

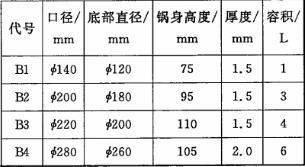

Size of vessels
Figure No. A/mm B/mm H/mm t/mm Volume/L
B1 Φ140 Φ120 75 1.5 1
B2 Φ200 Φ180 95 1.5 3
B3 Φ220 Φ200 110 1.5 4
B4 Φ280 Φ260 105 2.0 6

Size of lids
Figure No. A/mm B/mm C/mm t/mm
B1 Φ82 Φ126 Φ146 1.0
B2 Φ142 Φ186 Φ206 1.0
B3 Φ162 Φ206 Φ226 1.0
B4 Φ222 Φ266 Φ286 1.0

. Picture:

Q235 PG CSV Induction Cooker Vessels Carbon Steel Vessels GB21456 Annex A
