Blankets Mechanical Strength Test Apparatus IEC60335-2-17 Figure BB.1 To BB.3
Blankets Mechanical Strength Test Apparatus IEC60335-2-17 Figure BB.1 To BB.3
Specifications
Brand Name :
Pego Group
Model Number :
PG-BMS
Certification :
Third-Lab Calibration Certificate
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
100 sets/months
Delivery Time :
15 working days
Packaging Details :
woodencase
Standard :
IEC60335-2-31 clause 21.102 and Annex BB.1 to BB.3
Application :
for testing the mechanical strength of blankets
Control mode :
button control+meter
Working voltage :
220V/50Hz
Driving sprocket speed :
33r/min
Warranty :
12 Months
Description

IEC60335-2-17 Figure BB.1 to BB.3 Equipment for the mechanical strength test of blankets

1. Introduction

The blankets mechanical strength test apparatus is designed according to IEC60335-2-17 clause 21.102 and Annex BB.1 to BB.3. It’s used for mechanical strength test by simulating the actual use of the blanket. Pulling the blanket by the driving bar, the driving sprocket operating at a speed of 33r/min. Rotated the blanket 1000 times with an end attached to the driving bar and then turned through 90° and rotated another 1000 times.

2. Parameters

Control method button control+meter
Maximum size of blanket under test 2100*2000mm
Lifting device Double sprocket cylinder lifts
Driving sprocket speed 33rpm/min
hardwood cylindrical Ø65mm*140mm(L)
Force of cylindrical on drum 5.1N
Size of rotating drum Ø160*2000mm
Rubber spheres R30mm, hardness: 40-50HR
Horizontal angle of arms 25°
Square bar 25*25*2000mm
Weight of blanket 6kg/m or total mass 6.5kg
Test time 0-9999 (settable) normally 1000 times
Diameter of sprocket 230mm
Power supply AC 220V/50Hz
Dimension 2500*800*2500mm (L*D*H)

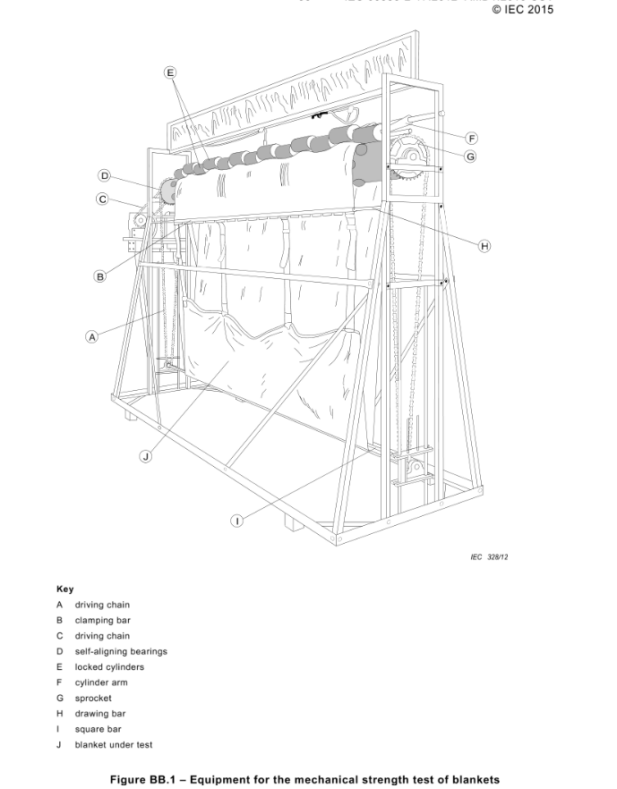

3. Drawings

Blankets Mechanical Strength Test Apparatus IEC60335-2-17 Figure BB.1 To BB.3
