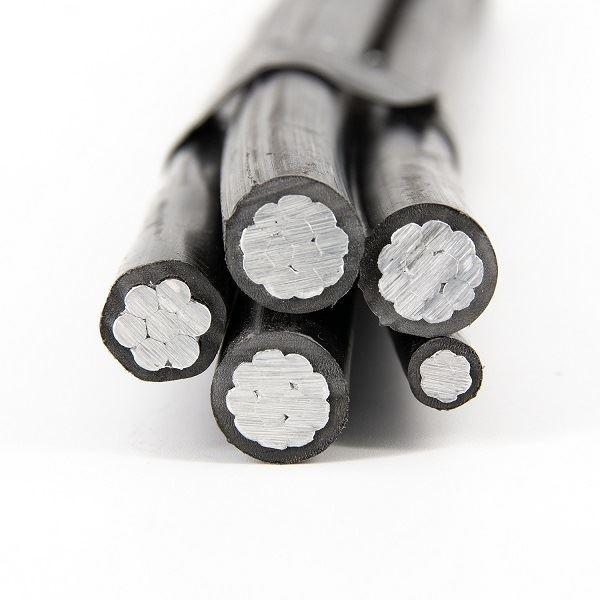

NFC 33209 Overhead Secondary Distribution Lines Aerial Bundle Cable For 600V

Application:

The cladding-wire is mainly used for 600V secondary overhead distribution lines. It is not an electrically insulated conductor and is generally considered a bare conductor.
The aluminum conductor is 1350-H19 aluminum, 6201-T81 aluminum or ACSR conductor, concentric twisted and covered with polyethylene, high density polyethylene (HDPE) or crosslinked polyethylene (XLPE) to resist weather.

Standards:

NFC 33-209

Characteristics:

1.The long-term allowable working temperature of cable conductor should not exceed 90℃.
2.The installation temperature of the cable shall be no less than -20 °C.

Construction:

1.Phase conductor: Aluminum conductor
2.Neutral conductor: Aluminum alloy conductor
3.Public lighting: Aluminum conductor
4.Testing conductor: Copper conductor
5.Insulation: XLPE

Applicable conditions:

1. Long-term allowable working temperature of cable conductor: PVC and polyethylene insulation should not exceed 70℃; cross-linked polyethylene insulation should not exceed 90℃.
2. The laying temperature of the cable is not lower than -20℃.
3. The allowable bending radius of the cable: if the cable outer diameter (D) is less than 25mm, it should be no less than 4D; if the cable outer diameter (D) is 25mm and above, it should be no less than 6D.

Certificates:

International: IEC 60502, IEC 60228
Other standards such as BS,DIN and ICEA upon request

Product parameter:

FAQ:

Q1. Are you trading company or manufacturer ?

A: We are professional manufacture with our own independent export rights.

Q2. What if I don’t find the type and size of cable I need on this page?

A: Don't worry. Contact us and send us your requirements, we will help you choose the correct cable you need. It is better if you have the following information: cable voltage, conductor material, insulation and outer sheath material, armor type. Otherwise, you can provide us with cable installation environment, application requirements, etc.

Q3. Can you produce according to the samples ?

A: Yes, we can produce by your samples or technical drawings.

Q4. How long is you delivery time ?

A: Depends on your quantity, normally 1-3 weeks.
