AAC/XLPE ABC Naked Overhead Electrical Cables Insulated Aluminum Conductor
AAC/XLPE ABC Naked Overhead Electrical Cables Insulated Aluminum Conductor
AAC/XLPE ABC Naked Overhead Electrical Cables Insulated Aluminum Conductor
AAC/XLPE ABC Naked Overhead Electrical Cables Insulated Aluminum Conductor
Specifications
Place of Origin :
Hebei, China
Brand Name :
Nuoxing
Model Number :
JKLY
Packaging Details :
Standard export packing with wooden drum or steel wooden drum
Supply Ability :
10000 Kilometer/Kilometers per Month
MOQ :
100 Meters
Price :
$1.00 - $100.00/Meters
Payment Terms :
T/T, L/C, Western Union
Delivery Time :
10-20 days
Product Name :
ABC Naked Aluminium Overhead Cables
Insulation Material :
XLPE
Type :
Low Votage
Application :
Construction
Conductor Material :
Aluminum
Jacket :
PVC
Certificate :
ISO9001/ISO14001 /OHSAS18001/CCC
Rated Voltage: :
0.6/1KV
Description

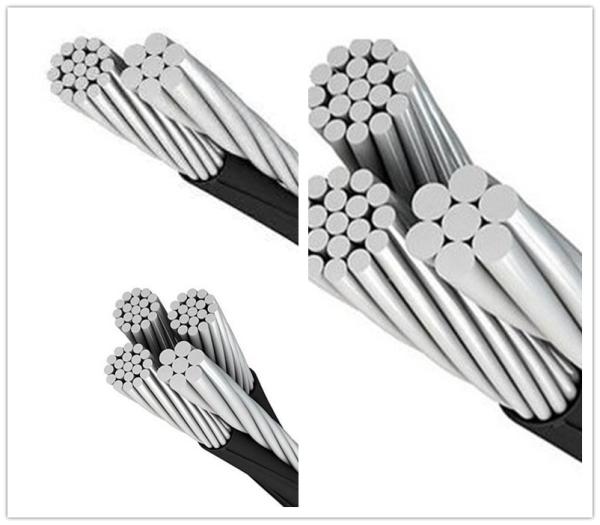

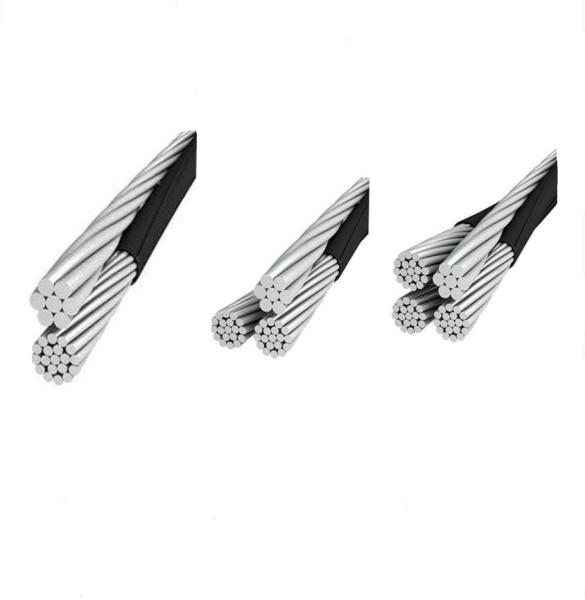

Insulated Aluminum Conductor AAC/XLPE Single Core ABC Naked Overhead Electricity Cables

Application:

Aluminium overhead cables are extensively used in overhead power transmission line and used in city streets and green area, overhead lines closing to the building , the urban construction site and transformer wiring occasion etc.. It improves the safety and reliance of electrified wire netting.

Applicable conditions:


1. The rated voltage U0/U is 0.6/1KV.
2. Long-term allowable working temperature of cable conductor: PVC and polyethylene insulation should not exceed 70℃; cross-linked polyethylene insulation should not exceed 90℃.
3. The laying temperature of the cable is not lower than -20℃.
4. The allowable bending radius of the cable: if the cable outer diameter (D) is less than 25mm, it should be no less than 4D; if the cable outer diameter (D) is 25mm and above, it should be no less than 6D.

Product parameter:

Product name Aluminium Overhead Cables
Certifications ISO9001/ISO14001 /OHSAS18001/CCC
Standard GB, IEC, BS, ASTM
Rated voltage 0.6/1KV
Test voltage 4 KV
Phase Conductor Stranded Aluminum Wires
Insulation Cross-linked polyethylene (XLPE)
Neutral AAC AAAC ASCR
Laying temperature min. -20
Operating temperature -30 to +80
OEM Available

AAC/XLPE ABC Naked Overhead Electrical Cables Insulated Aluminum ConductorAAC/XLPE ABC Naked Overhead Electrical Cables Insulated Aluminum ConductorAAC/XLPE ABC Naked Overhead Electrical Cables Insulated Aluminum Conductor

FAQ:


Q1. Are you trading company or manufacturer ?

A: We are professional manufacture with our own independent export rights.

Q2. What if I don’t find the type and size of cable I need on this page?

A: Don't worry. Contact us and send us your requirements, we will help you choose the correct cable you need. It is better if you have the following information: cable voltage, conductor material, insulation and outer sheath material, armor type. Otherwise, you can provide us with cable installation environment, application requirements, etc.

Q3. Can you produce according to the samples ?

A: Yes, we can produce by your samples or technical drawings.

Q4. How long is you delivery time ?

A: Depends on your quantity, normally 1-3 weeks.
