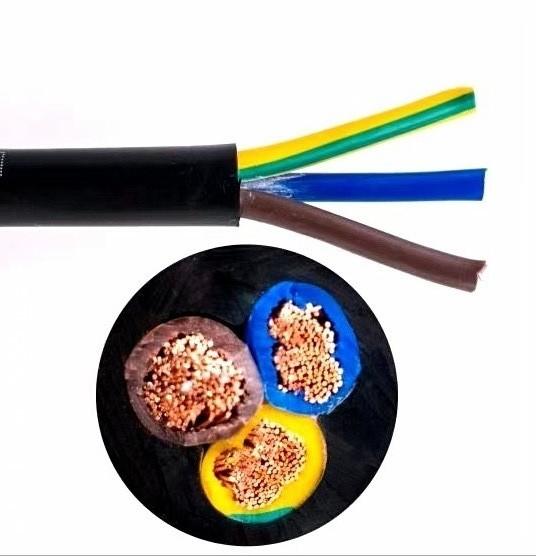

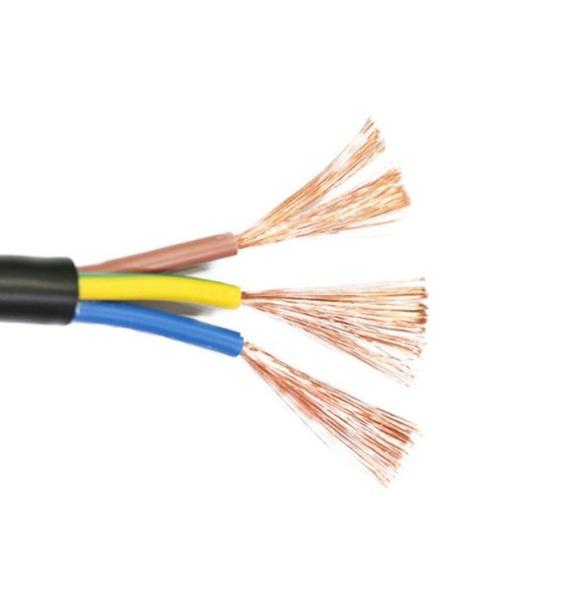

300/500V 6mm2 Fire Resistant Control Cable Copper Core CE/ISO9001
300/500V 6mm2 Fire Resistant Control Cable Copper Core CE/ISO9001
300/500V 6mm2 Fire Resistant Control Cable Copper Core CE/ISO9001
300/500V 6mm2 Fire Resistant Control Cable Copper Core CE/ISO9001
Specifications
Brand Name :
Nuoxing
Model Number :
RVV
Certification :
CE/CCC/ISO9001
Place of Origin :
China
MOQ :
1000
Price :
1-100
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000 km per month
Delivery Time :
10-20 days
Packaging Details :
standard export packing in wooden drums or boxes
Product Name :
Copper Core Material Fire Resistant Control Cable
Conductor material :
Copper
Insulation :
PVC
Rated voltage :
300V/500V
Jacket :
PVC
Guideline :
GB 5023、IEC60227、HD VDE21.5 S3
Description

300/500 V Copper Core Material Fire Resistant Control Cable With CE/ISO9001

Definition:


RVV wire is the full name of copper core PVC insulated PVC sheathed flexible wire, also known as lightweight PVC sheathed flexible wire, commonly known as soft sheathed wire, is a kind of sheathed wire.
Rated voltage 300V/500V, the number of cores from 2 to 24 cores according to the national standard, two or more cores stranded into a cable, the outer layer to the right stranded. Widely used in instruments, meters, building intercom, monitoring and surveillance installation.

Number of cores:


2×0.50, 3×0.50, 4×0.50, 5×0.50, 6×0.50, 7×0.50, 8×0.50, 10×0.50, 12×0.50, 18×0.50, 25×0.50, 36×0.50.
2×0.75, 3×0.75, 4×0.75, 5×0.75, 6×0.75, 7×0.75, 8×0.75, 10×0.75, 12×0.75, 18×0.75, 25×0.75, 36×0.75.
2×1.0, 3×1.0, 4×1.0, 5×1.0, 6×1.0, 7×1.0, 8×1.0, 10×1.0, 12×1.0, 18×1.0, 25×1.0, 36×1.0.
2×1.5, 3×1.5, 4×1.5, 5×1.5, 6×1.5, 7×1.5, 8×1.5, 10×1.5, 12×1.5, 18×1.5, 25×1.5, 36×1.5.
2×2.5, 3×2.5, 4×2.5, 5×2.5, 6×2.5, 7×2.5, 8×2.5, 10×2.5, 12×2.5, 18×2.5, 25×2.5, 36×2.5.
2×4.0, 3×4.0, 4×4.0, 5×4.0, 7×4.0.
2×6.0, 3×6.0, 4×6.0, 5×6.0, 7×6.0.
2×10.0, 3×10.0, 4×10.0, 5×10.0.
3×16.0, 4×16.0, 5×16.0.
4×25.0, 5×25.0.
4×36.0, 5×36.0.
Notes:
① There is also a larger rated voltage 450/750V, 600/1000V RVV cable.
② There are more core wire colors.
③ Other special places use RVV cable products (high and low temperature resistance, corrosion resistance, cutting resistance, etc.).
④ The product model outside the CCC catalog is RVV, without CCC certification.

Specificaiton:

Product name Fire Resistant Control Cable
Certifications CE/CCC/ISO
Standard IEC60502-1
Rated Voltage 300V/500V
Conductor material Copper
Insulation Material PVC
Armoured Material None/Steel Tape/Steel wire
Jacket Material PVC
Number of cores 2-5 cores, 7-36 cores
Section area 0.5-6 mm²

300/500V 6mm2 Fire Resistant Control Cable Copper Core CE/ISO9001

Fire Resistant Control Cable
