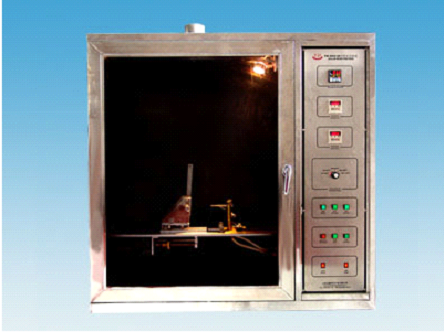

0.8N - 1.2N Glow Wire Test Equipment For Plastic Parts / Non-Metallic Insulation Parts
0.8N - 1.2N Glow Wire Test Equipment For Plastic Parts / Non-Metallic Insulation Parts
Specifications
Brand Name :
Kinte
Model Number :
WH-8901B (ZRS-3)
Certification :
Certificate of conformity of quality management system certification
Place of Origin :
Guangdong,China (Mainland)
MOQ :
1set
Price :
customized
Supply Ability :
customized
Delivery Time :
customized
Packaging Details :
customized
Description

0.8N - 1.2N Glow Wire Test Equipment For Plastic Parts / Non-Metallic Insulation Parts​

Overview:

Electrical parts or parts in the failure or overload conditions, may reach high temperatures or

ignite their nearby parts, glow-wire test Simulation of hot components or overload resistance of

the heat source or ignition source in a short time caused by heat Stress, the use of simulation

technology to assess the risk of fire. Glow wire test for electrical and electronic products,

household electrical appliances used in plastic parts and non-metallic insulation parts, such as:

switch shell; relays, sockets ... ....


Model number

According to the standard box volume m3

Dimensions

skills requirement

Remarks

WH-8901B

IEC60695, IEC335 related standards 0.5


In this case,1000 (W) × 600 (D) × 1260 (H)

1, Glowing wire temperature adjustable in the range of 500 ~ 10000 ℃, the temperature

tolerance: 500 ~ 750 ℃ ± 10 ℃;750 ~ 1000 ℃ ± 15 ℃, temperature measuring instrument

accuracy ± 0.5 level. Temperature measurement using 0.5 ~ 0.55 mm, ¢ 1mm nickel-chromium

armored (K type) imported thermocouple.

2, glowing wire on the sample exert force 0.8N ~ 1.2N

3 and limit the penetration depth to at least 7 mm

(Ta) 0 ~ 99 minutes and 99 seconds adjustable, generally according to standard requirements

set to 30 seconds, and have measured the ignition duration (Ti) and flame out time (Te) of the

Timer; time error ± 1S.

5, the instrument is simple, temperature measurement system is stable and reliable, 0.8N - 1.2N Glow Wire Test Equipment For Plastic Parts / Non-Metallic Insulation Parts
