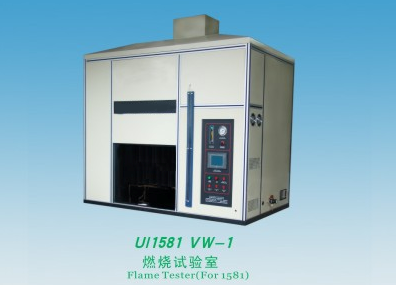

Electric Wire Flame Test Chamber 1000Ml / M Flow Range For Finished Wire / Cord
Electric Wire Flame Test Chamber 1000Ml / M Flow Range For Finished Wire / Cord
Specifications
Brand Name :
Kinte
Model Number :
Ul-1581 Vw-1
Certification :
Certificate of conformity of quality management system certification
Place of Origin :
Guangdong,China (Mainland)
MOQ :
1 set
Payment Terms :
L/C, T/T
Supply Ability :
Customized
Delivery Time :
Customized
Packaging Details :
Customized
Description

Electric Wire Flame Test Chamber 1000Ml / M Flow Range For Finished Wire / Cord​

Scope: applicable to finished wire or cord in the specified conditions to inhibit the spread of

flame has the ability, and its use of the cable: that is, power, communication and so on. Main

components:

1, ignition control system

2, the collection tower and smoke devices

3, gas flow control system

4, temperature control system

5, the extension of the combustion control system

6, horizontal and vertical burning stent


Main Specifications

1, the combustion chamber: 4m³ volume of stainless steel wall, equipped with tempered glass

windows, exhaust fan, foot switch.

2, burner: standard test flame has a nominal height of 125mm, the following 500w (1700Btu / h)

standard speed heat release.

3, temperature control system: A: K-type thermocouple, with a diameter of 0.5mm stainless steel

to do the jacket.

4. The diameter of the mouth: 0.90 ± 0.03mm, nozzle length: 1.60 ± 0.05mm. B: Thermometer

and K-type thermocouple match, the reading of up to 800 ℃ or more.

5, high-precision flame control system: the flame burning time through the optical control system

to measure the flame burning time, timing device 0 ~ 999.9s

6, flow meters, pressure gauges, pressure relief valve:

A, fluid pressure gauge / pressure gauge Measuring 800mm water, and 5mm increments

B, flowmeter rotor test table in accordance with the D3195 standard calibration. And a gas table,

or with a precision of at least 2% of the flow table. Flow range: 1000ml / M.

C, gas relief valve: 1, the gas flow can be adjusted to 10 pounds per cubic inch.

Electric Wire Flame Test Chamber 1000Ml / M Flow Range For Finished Wire / Cord
