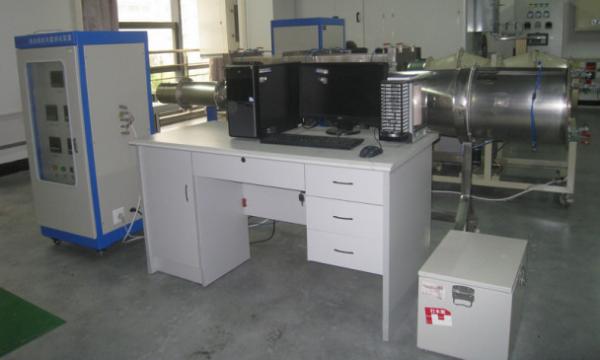

0.1-25 M ³ / Min Range Hood Performance Testing Equipment 3% Wind Measurement Error
0.1-25 M ³ / Min Range Hood Performance Testing Equipment 3% Wind Measurement Error
0.1-25 M ³ / Min Range Hood Performance Testing Equipment 3% Wind Measurement Error
0.1-25 M ³ / Min Range Hood Performance Testing Equipment 3% Wind Measurement Error
Specifications
Brand Name :
Kinte
Model Number :
FL-1
Certification :
Certificate of conformity of quality management system certification
Place of Origin :
Guangdong,China (Mainland)
MOQ :
1 Set
Price :
customized
Payment Terms :
L/C, T/T
Supply Ability :
customized
Delivery Time :
customized
Packaging Details :
customized
Description

0.1-25 M ³ / Min Range Hood Performance Testing Equipment 3% Wind Measurement Error​

● Overview:

This device is applicable to the air performance test of the free air intake type (B type) ventilation

fan and the range hood. Its performance accords with the national standard GB / T 17713-2011

"Range Hood" and GB / T 14806 "Household and Similar Use Exchange ventilation fan and its

governor "requirement. This device is equivalent to the air performance test of the free-breathing

(Type B) ventilators in IEC 60665 "AC Ventilators and Their Governors for Household and Similar

Purposes" of the International Electrotechnical Commission.

● Test principle:

By measuring the gas flow through the orifice plate after the static pressure reducing cylinder,

converted to air volume. In the experiment, the air pressure was measured by changing the

diameter of the orifice plate, and the air performance curve of the hood or the fan was obtained

through the computer data processing.

● Test items

The maximum static pressure (zero air volume static pressure value), the maximum air volume

(zero static pressure air volume value), the provisions of the air volume static pressure, the

provisions of the air flow when the main motor input power, the provisions of the air volume of the

total pressure efficiency η% .

● technical indicators

① air volume measurement range 0.1-25m ³ / min;

② cylinder static pressure measurement range 0-500Pa;

③ wind measurement error ± 3%.

0.1-25 M ³ / Min Range Hood Performance Testing Equipment 3% Wind Measurement Error0.1-25 M ³ / Min Range Hood Performance Testing Equipment 3% Wind Measurement Error
