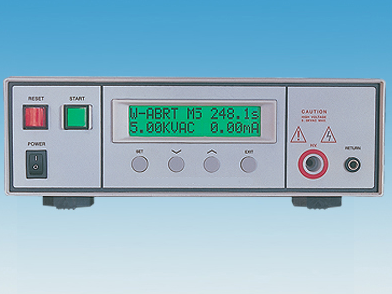

0.01mA Dielectric Voltage Withstand Test Equipment , AC Withstand Voltage Tester

The main parameters:

1, the input characteristics: single-phase 47 ~ 63HZ, 115 / 230V ± 15% (optional), 3A fuse

2, AC voltage test: Rated output: 5KV / 12mA

3, the output frequency: 60 / 50Hz (optional)

4, the output waveform: sine wave distortion <2%, the crest factor of 1.3 to 1.5

5, the upper limit setting: Range: 0.10 ~ 12.00mA, resolution: 0.01mA, accuracy: ± (2% of the set

value +2 words) * 1

6, Lower limit setting: Range: 0 ~ 12.00mA, Resolution: 0.01mA, Accuracy: ± (2% of setting value

+ 2 words) * 1

7, the voltage setting: Resolution: 10V, Accuracy: ± (2% set value +5 V) Voltage regulation: ± (1%

set value +5 V) No load to full load

8, the rise time: Range: 0,1 ~ 999.9s, resolution: 0.1s

9, the test time: Range: 0,0.2 ~ 999.9S, resolution 0.1S, (0 = continuous test)

10, arc detection: can set the sensitivity: 0 ~ 9

11, the voltmeter: Range: 0.00 ~ 6.00KV, resolution: 0.01KV Accuracy: ± (2% of the reading +1

words)

12, ammeter: Range: AC 0.10 ~ 12.00mA, DC 0.02 ~ 5.00mA Accuracy: ± (2% of the reading +1

words) Resolution: 0.01mA

13, programmable logic remote control: Input: Test, Reset Output: Pass, Fail, Test-in-Process,

14, the test results Expression: buzzer, LCD display and reading, remote control status output

15, memory group: 5 groups of test conditions memory, each group has 4 test mode selection

(W, I, W ~ I linked I ~ W linkage)

16, the keyboard security lock: keyboard security lock to prevent misuse of the operator or

program to modify the wrong

17, liquid crystal display: 16X2 dot matrix, anti-white backlight

18, correction: the use of software correction, from the front panel type

19, the use of the environment: Temperature: 0 ~ 40 ℃, relative humidity <80% RH

20, Size: 89mm high x80mm wide x370mm deep

21, Weight: 9kg
