Specifications
Brand Name :
AIP
Model Number :
AIP89XX
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
50 sets per month
Delivery Time :
45 working days
Packaging Details :
Wooden case
Product :
Small Fan Motor Testing Machine
Test object :
Small fan motor
Test parameters :
IR/ Surge/ AC Hipot/ DC Resistance/ Rotation
Test time :
8s
Station :
2 test stations
Warranty :
12 months
Description

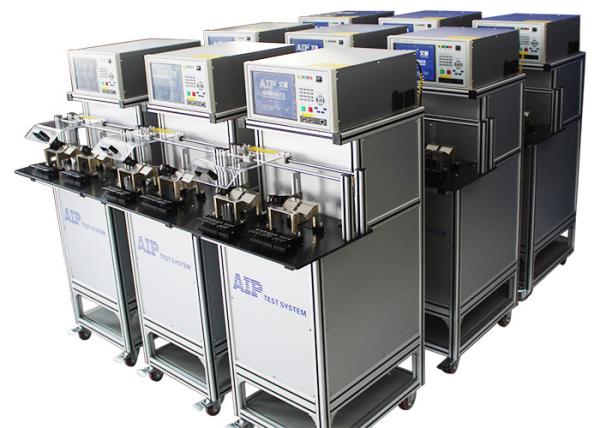

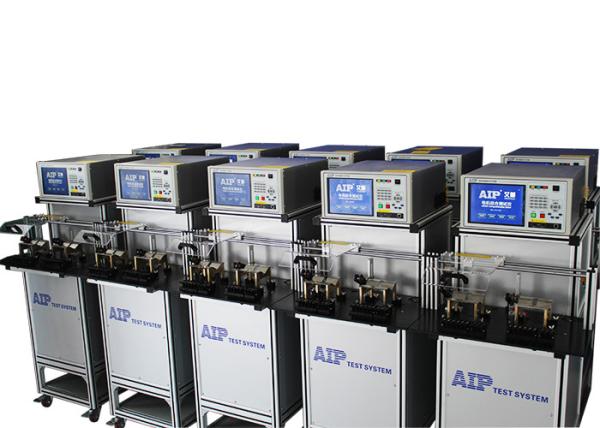

Small Fan Motor Testing Machine, IR/ Surge/ AC Hipot/ DC Resistance/ Rotation

1. Test object: small fan motor

2. Testing machine introduction
The low power motor testing machine adopts Linux operating system to control the software. It has both the stability of Linux system and friendly interface of Windows system, which can be used to perform the electrical parameters test for the motor of EV, small fan, air conditioner, vacuum cleaner, power tools etc.

3. Technical parameters
3.1 Insulation Resistance:

output voltage setting range/precisionDC 500V/1000V ±(2%×setting value+10V)
insulation resistance testing range/precision

1～500MΩ
≤100MΩ:±(3%×setting value+0.5MΩ) ；>100 MΩ:±(5%×setting value+5MΩ)

insulation resistance alarm setting rangeMax: 0～500MΩ; Min: 1～100MΩ
test time range/resolution0.5～999s 0.1s/step

3.2 Surge:

output voltage setting range/precision500～3000V ±(3%×setting value+8V)
sampling frequency100MHz
waveform comparisonarea, area difference, corona and phase 3 waveforms displayed in the testing interface

3.3 AC Hipot:

Output voltage setting range and precisionAC 500～3000V ±(2%×setting value+10V)
breakdown current testing range/precision0.10～20.00mA ±(2%×setting value+0.05 mA)
Hipot current presetting alarm rangeMax:0.10～20.00mA；Min:0.00～20.00mA
Hipot current/resolution±(2% display value+0.05 mA)；0.01 mA
test time range/resolution0.5～999.9s 0.1s/step
Arc detection0~9 level

3.4 DC Winding resistance :

testing range and precision10.0mΩ～2KΩ ±(0.3%×display value+3 words) temperature compensation can be set.
test time range/resolution

0.5～20s 0.1s/step

temperature compensation functionYes
temperature probe/rangeDS18b20 -10.0℃~+50.0℃
precision±0.5°C(range: -10℃~+50℃)

3.5 Direction of rotation

rotation mode: Hall/MAC/inductance
rotationCW, CCW, still

3.6 Low voltage start:

voltage testing range and precisionAC:30～500V ±(0.5%×display value+1 words)
current testing range and precisionAC:0.02～5.0A ±(0.5%×display value+2 words)
power testing range and precision0.6-1500W ±(0.5%×display value+5 words)

output voltage setting range/precision500～3000V ±(3%×setting value+8V)
sampling frequency100MHz
waveform comparisonarea, area difference, corona and phase 3 waveforms displayed in the testing interface

3.7 No-load:

voltage testing range and precisionAC:30～500V ±(0.5%×display value+1 word)
current testing range and precisionAC:0.02～5.0A ±(0.5%×display value+2 words)
power testing range and precision0.6-1500W ±(0.5%×display value+5 words)

3.8 Stall

voltage testing range and precisionAC:30～500V ±(0.5%×display value+1 word)
current testing range and precisionAC:0.02～5.0A ±(0.5%×display value+2 words)
power testing range and precision0.6-1500W ±(0.5%×display value+5 words)


4. Configuration list

No.NameUnitQuantity
1Master unitSet1
2Test modulesSet1
3Test softwareSet1
4Channel switch unitSet1
5Cabinet and power supply deviceSet1
6Test benchSet1
