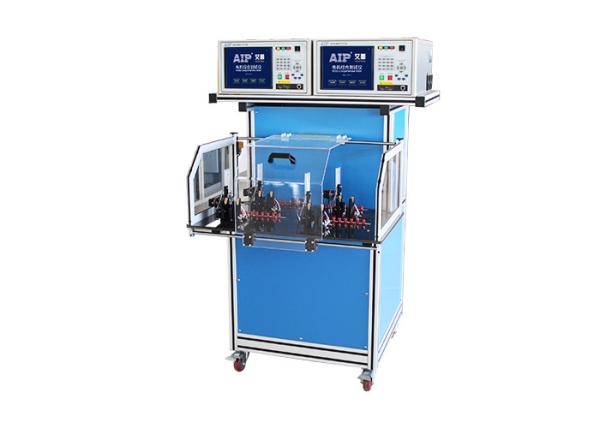

Four Stations Motor Testing Machine For Air Conditioner Outdoor Unit Motor
Four Stations Motor Testing Machine For Air Conditioner Outdoor Unit Motor
Four Stations Motor Testing Machine For Air Conditioner Outdoor Unit Motor
Four Stations Motor Testing Machine For Air Conditioner Outdoor Unit Motor
Four Stations Motor Testing Machine For Air Conditioner Outdoor Unit Motor
Four Stations Motor Testing Machine For Air Conditioner Outdoor Unit Motor
Specifications
Brand Name :
AIP
Model Number :
AIP89XX
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
50 sets per month
Delivery Time :
45 working days
Packaging Details :
Wooden case
Product :
Motor Testing Machine For Air Conditioner Outdoor Unit Motor
Application :
Motor Factory Acceptance Test
Test station :
Four stations
Port :
USB, RS232, 485, CAN, Ethernet
Software upgrading :
support remote control
MES connection :
Yes
Description

Motor Testing Machine For Air Conditioner Outdoor Unit Motor / Motor Factory Test

I. Product introduction
1. Station: two stations
2. Integrated design make the testing machine can be moved easily. The test bench can be changed as different motor specification.
3. Both the touch screen and button can be used to operate the machine.
4. Standard equipped with self-diagnosis and remote control function, which makes the software upgrading and maintenance easier.
5. Motor reference pictures
Four Stations Motor Testing Machine For Air Conditioner Outdoor Unit Motor

II. Technical parameters:

2.1 AC Hipot:

Output voltage setting range and precision AC 500～3000V ±(2%×setting value+10V)
breakdown current testing range/precision 0.10～20.00mA ±(2%×setting value+0.05 mA)
Hipot current presetting alarm range Max:0.10～20.00mA；Min:0.00～20.00mA
Hipot current/resolution ±(2% display value+0.05 mA)；0.01 mA
test time range/resolution 0.5～999.9s 0.1s/step
Arc detection 0~9 level

2.2 Surge:

output voltage setting range/precision 500～3000V ±(3%×setting value+8V)
sampling frequency 100MHz
waveform comparison area, area difference, corona and phase 3 waveforms displayed in the testing interface

2.3 Insulation Resistance:

output voltage setting range/precision DC 500V/1000V ±(2%×setting value+10V)
insulation resistance testing range/precision

1～500MΩ
≤100MΩ:±(3%×setting value+0.5MΩ) ；>100 MΩ:±(5%×setting value+5MΩ)
insulation resistance alarm setting range Max: 0～500MΩ; Min: 1～100MΩ
test time range/resolution 0.5～999s 0.1s/step

2.4 DC Winding resistance:

testing range and precision 10.0mΩ～2KΩ ±(0.3%×display value+3 words) temperature compensation can be set.
test time range/resolution

0.5～20s 0.1s/step
temperature compensation function Yes
temperature probe/range DS18b20 -10.0℃~+50.0℃
precision ±0.5°C(range: -10℃~+50℃)

2.5 Low voltage start:

voltage testing range and precision AC:30～500V ±(0.5%×display value+1 words)
current testing range and precision AC:0.02～5.0A ±(0.5%×display value+2 words)
power testing range and precision 0.6-1500W ±(0.5%×display value+5 words)

2.6 No-load:

voltage testing range and precision AC:30～500V ±(0.5%×display value+1 word)
current testing range and precision AC:0.02～5.0A ±(0.5%×display value+2 words)
power testing range and precision 0.6-1500W ±(0.5%×display value+5 words)

2.7 Stall

voltage testing range and precision AC:30～500V ±(0.5%×display value+1 word)
current testing range and precision AC:0.02～5.0A ±(0.5%×display value+2 words)
power testing range and precision 0.6-1500W ±(0.5%×display value+5 words)

2.8 Direction of rotation

rotation mode: Hall/MAC/inductance
rotation CW, CCW, still


III. Configuration list

No. Name Specification Unit
1 Master unit Customized Set
2 Test bench Customized clamps Set
3 Cabinet unit Easy to be moved with foot wheels Set
4 Test software Save the test requirements, data and control the test process Set


Four Stations Motor Testing Machine For Air Conditioner Outdoor Unit Motor
