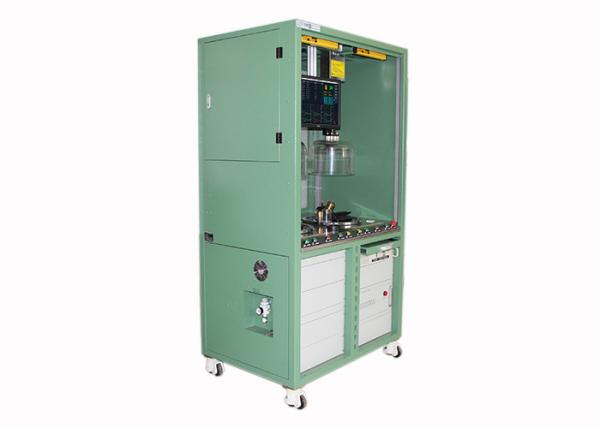

Compressor Stator Vacuum Testing Machine , High Sensitivity Digital Surge Tester
Compressor Stator Vacuum Testing Machine , High Sensitivity Digital Surge Tester
Compressor Stator Vacuum Testing Machine , High Sensitivity Digital Surge Tester
Compressor Stator Vacuum Testing Machine , High Sensitivity Digital Surge Tester
Compressor Stator Vacuum Testing Machine , High Sensitivity Digital Surge Tester
Compressor Stator Vacuum Testing Machine , High Sensitivity Digital Surge Tester
Compressor Stator Vacuum Testing Machine , High Sensitivity Digital Surge Tester
Compressor Stator Vacuum Testing Machine , High Sensitivity Digital Surge Tester
Specifications
Brand Name :
AIP
Model Number :
AIP89XX
Place of Origin :
China
MOQ :
1 set
Price :
negotiable
Payment Terms :
L/C, T/T
Supply Ability :
50 sets per month
Delivery Time :
45 work days
Packaging Details :
wooden package
color :
green (customized)
sevice :
24 hours online support
weight :
200kg
height :
1405mm
station :
two stations
warranty :
1 year
Description

Compressor Stator Vacuum Testing Machine, High Sensitivity Surge Tester

1. Test item and introduction

1.1 Test item: AC Hipot, insulation resistance, surge, DC resistance and rotation

1.2 Features: original negative pressure technology, vacuum degree can be set freely (0~-90KPa). The winding or coil imperfection can easily be found under the condition of negative pressure.

1.3 Tested object: compressor motor stator

Compressor Stator Vacuum Testing Machine , High Sensitivity Digital Surge Tester

2. Technical specification

2.1 Surge

working ambient

comparatively vacuum

output voltage setting range / precision

500～5000V ±(3%×display value+8V)

waveform comparison

area, area difference, corona and phase

waveforms displayed in the testing interface

2.2 AC Hipot

Output voltage setting range and precision

AC 500～5000V ±(2%×setting value+10V)

breakdown current testing range / precision

0.10～20.00mA ±(2%×display value+0.05 mA)

Hipot current presetting alarm range

Max:0.10～20.00mA；Min:0.00～20.00mA

Hipot current / resolution

±(2% display value+0.05 mA)；0.01 mA

test time range / resolution

0.5～999.9s 0.1s/step

2.3 DC Winding resistance

testing range and precision

10.0mΩ～20KΩ ±(0.3%×display value+3 words) temperature compensation can be set.

test time range / resolution

0.5～999s 0.1s/step

temperature compensation function

Yes

temperature probe / range

DS18b20 -10.0℃~+50.0℃

test precision

±0.5°C(range: -10℃~+50℃)

2.4 Insulation Resistance

output voltage setting range / precision

DC 500V/1000V ±(2%×setting value+10V)

insulation resistance testing range / precision

1～500MΩ

≤100MΩ:±(3%×setting value+0.5MΩ) ；>100 MΩ:±(5%×setting value+5MΩ)

insulation resistance alarm setting range

Max: 0～500MΩ; Min: 1～100MΩ

test time range / resolution

0.5～999s 0.1s/step

2.5 Direction of rotation

Rotation mode:

rotation

CW, CCW, still

3. Performance description

  • All the testing items can be enabled or disabled.
  • The number of the motor model that can be selected is more than 1000.
  • The threshold value of each types of motor can be entered and saved for a long time. For the inductance and resistance, the system has the function of setting, displaying and judging the unbalanced degree.
  • Two options are available if NG appears: “continue to test” and “stop the test”. If NG appears when testing the winding resistance, the test can be stopped after testing the three windings.
  • The testing results are stored in the data base, together with the barcode information and test result.
  • The testing data can be exported via the USB interface.
  • User permission setting avoids the parameter change by misoperation.
  • Testing software setting and standby interface introduction
