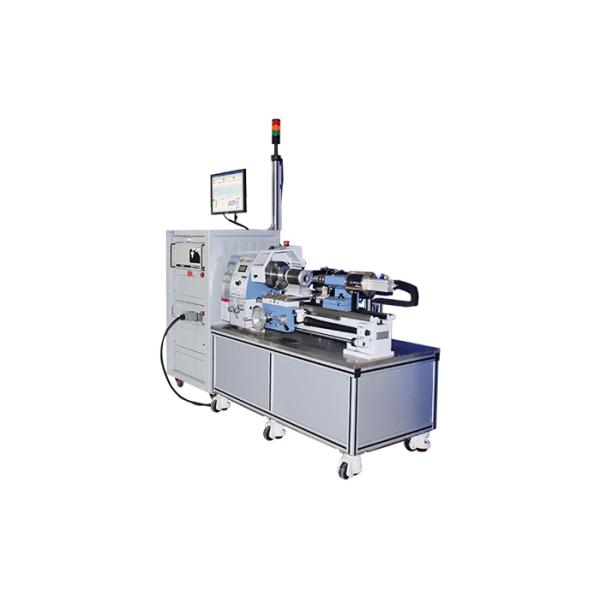

Full Function Rotor Testing Machine For Conducting Bar And End Ring Test
Full Function Rotor Testing Machine For Conducting Bar And End Ring Test
Full Function Rotor Testing Machine For Conducting Bar And End Ring Test
Full Function Rotor Testing Machine For Conducting Bar And End Ring Test
Full Function Rotor Testing Machine For Conducting Bar And End Ring Test
Full Function Rotor Testing Machine For Conducting Bar And End Ring Test
Specifications
Brand Name :
AIP
Model Number :
AIP89XX
Place of Origin :
China
MOQ :
1 set
Price :
negotiation
Payment Terms :
L/C, T/T
Supply Ability :
50 sets per month
Delivery Time :
45 work days
Packaging Details :
wooden case
Warranty :
12 months
Test :
broken bar, thin bar, porosity
Power supply: :
customized as the national grid
Color :
grey (customized)
MES connection :
Yes
Monitor :
19” LCD
Description

Full Function Rotor Testing Machine / Conducting Bar And End Ring Test

1. Introduction

  • Test object: motor rotor
  • Test: the quality of the conducting bar and end ring

2. Technical specification

Test object

The conducting bar and end ring

Display mode

19” LCD

Parameter save

Software save

Test mode

Continuous mode / single mode

Dimension range

Outer diameter: 20-100mm

Inner diameter: 4-29mm

Lamination thickness:100mm(max)

Judgement parameter

The quantity of conducting bar, minimum amplitude, maximum amplitude, comprehensive value

Control mode

Auto/manual

Working ambient

Temperature 0～40℃,humility≤90％RH

3. Feature

  • The machine can be applied to both laboratory and production line to test conducting bar and end ring.
  • Rotor testing machine tests the conducting bar and ending ring separately with two special sensors.
  • Put the rotor on the station and conduct the test automatically. Three rotor size parameters can be input in the setting interface, and two sensors can reach the set position automatically. The machine eliminates the error of manual adjustment for the sensor height, distance and angle, and the test repeatability and stability will be highly improved.
  • Output the test result, record the data, and display the quantity of conducting bar, broken bar and thin bar automatically.
  • The machine, developed as to user habit and focus is more humanized and easier to be operated.
  • Full function: test the broken bar, thin bar, porosity, sand hole and residue caused by manufacturing process or bad material.

4. Reference pictures

Full Function Rotor Testing Machine For Conducting Bar And End Ring Test
