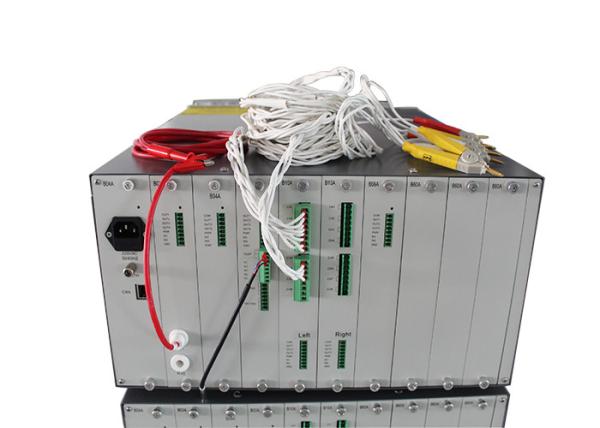

4 In 1 Stator Testing Machine For Single/Three-Phase Motor Stator
4 In 1 Stator Testing Machine For Single/Three-Phase Motor Stator
4 In 1 Stator Testing Machine For Single/Three-Phase Motor Stator
4 In 1 Stator Testing Machine For Single/Three-Phase Motor Stator
4 In 1 Stator Testing Machine For Single/Three-Phase Motor Stator
4 In 1 Stator Testing Machine For Single/Three-Phase Motor Stator
Specifications
Brand Name :
AIP
Model Number :
AIP89XX
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Supply Ability :
50 sets per month
Delivery Time :
45 days after receiving advance payment
Packaging Details :
Wooden package
Product name :
4 in 1 Stator Testing Machine
Application :
Stator production line
Weight :
25KG
Power Supply :
Customized
Temperature compensation :
Yes
Warranty :
12 months
Description

4 in 1 Stator Testing Machine , IR/Hipot/Surge/Winding Resistance

1. Product introduction

The stator tester can be used to test the stator of both single-phase and three-phase motor. It can be applied to test the electrical parameters of stator in EV, fan, air conditioner, power tool etc.

2. ​Test item:

surge, winding resistance, insulation resistance, AC Hipot

3. Main features

Test Hipot, insulation resistance, surge, winding resistance at one stop with once wire connection.

The testing machine is featured with high precision, quick test, easy to operate, modular design, intelligent design, multiple interfaces.

4. Technical parameters

Test item winding resistance, insulation resistance, Hipot, surge
Test object Stator
Test station Desk type, no test bench
Winding resistance
measuring range and precision 5mΩ～2KΩ ±(0.5%×readinge+2 words) temperature compensation can be set
test time range/resolution 1～300s 1s/step
Insulation resistance
Output voltage setting range DC 500/1000V ±(3%×reading+5 words)
Breakdown current measuring range 1～500MΩ ≤100MΩ:±(5%×setting value+3 words) >100 MΩ:±(8%×display value+8 words)
Breakdown current presetting alarm Max: 0～500MΩ；Min: 1～500MΩ
Test time range/resolution 1～300s 1s/step
Hipot
output voltage setting range/precision AC 200～3000V ±(1.5%×setting value+10V)
breakdown current presetting alarm range Max: 0.10～20.00mA; Min: 0.00～20.00mA
test time range/resolution 0.5～999.9s 0.1s/step
test time range/resolution 0.5～999.9s 0.1s/step
Surge
output voltage setting range/precision 500～3000V ±(3%×display value+8V)
waveform comparison

area, area difference, corona, phase

three waveforms will be displayed on the testing interface
