TUV EN15194 Battery Powered Folding Bike 36V 10Ah Li Ion Battery
TUV EN15194 Battery Powered Folding Bike 36V 10Ah Li Ion Battery
Specifications
Brand Name :
DREAM WHEEL
Model Number :
HP-E052c
Certification :
EN15194 (TUV)
Place of Origin :
CHINA
MOQ :
10 units
Price :
USD400 to 450
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
2000PCS per month
Delivery Time :
35-40days
Packaging Details :
Carton and protecting cover; 245pcs in 40" HQ
Battery :
600-800 times recycle, 36V LI-ION battery
Color :
the colours can be customized
Tire :
20" x2.125, Kenda tire
Speed :
25km/h, EN15194 standard
Package size :
86x46x71.5cm
Fork :
with suspension
Brake system :
Front disc brakes, rear wheel with V brake
Description

TUV EN15194 Standard Folding Battery Powered Bike 36v 10ah Li - Ion Battery

Quick Details

1. Motor power: 36V 250W rear GEAR motor

2. Frame material: Aluminum alloy 6061

3. Lithium battery: 36V 10.4Ah, 374Wh

4. Certification: EN15194 by TUV

5. Wheel size: 20”

6. Brake system: Disc brakes for front wheel

7. Derailleur system: Shimano 7 speed

8. Pedals assisted system: Yes. throttle can be optional

Product Descriptions

HP-E052c is one good design folding electric bike in 2017. 36V 10.4Ah li-ion battey pack in the rear, take away to charge easily.

And this new version bike have certificated by EN15194 TUV test. It's legal for European areas and some countries that accept this standard the same as EU.

Specifications

Model number HP-E052c
Motor 36V 250W rear GEAR motor
Battery 36V 10.4Ah li-ion battery
Charge time 4-6h
Charger 110-240V, 36V 2A, plug can be customized
Controller 36V 14A
Speed 25Km/h
Driving distance 45-55km by PAS
Weight 22.5Kgs
Packing dimension 860x460x715mm
Panel/speedometer LED style
Wheel 20”
Tire 20”x2.125, KENDA
Chain 1/2*3/32*114L
Frame Aluminum alloy 6061
Fork with suspension
Shift lever Shimano 7 speed
Rear derailleur Shimano RD-TX55
Front brake Disc Brake
Rear brake V Brake
Brake levers Aluminum alloy
Rims Aluminum alloy
Spokes Front:13GX176/178; Rear:12GX123/125;
Pedals Folding type
Chainwheel 1/2*3/32*52T, aluminum
Cranks Aluminum, 170L
Freewheel 14-28T
Handlebar Aluminum, black, foldable
Stem Aluminum, black, foldable
Grip 140MM
Seat Classic style, comfortable
Seat tube Steel
Lamp LED for front and rear
Wheel base 1020mm
Min ground clearance 88mm
Saddle ground clearance Max:990mm; Min:790mm
Handlebar ground clearance 1120mm
Licence requirement NO

Pictures Show

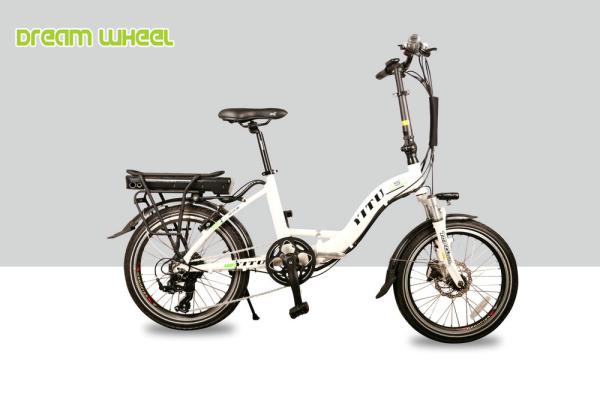

EN15194 TUV certificated 2017 20" folding electric bike Details

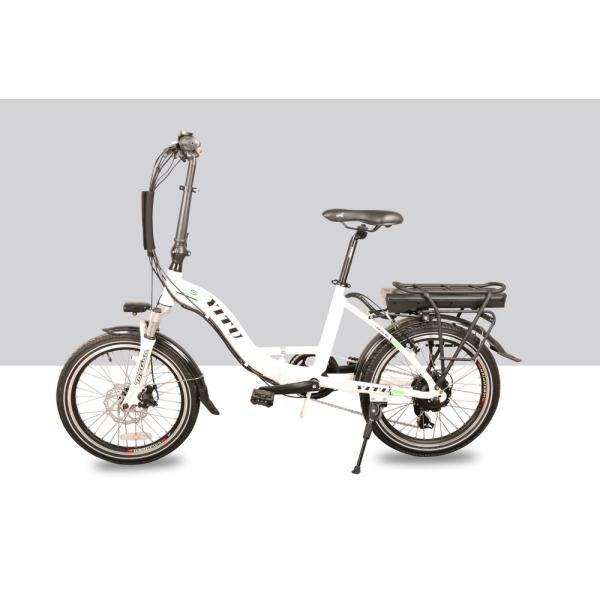

TUV EN15194 Battery Powered Folding Bike 36V 10Ah Li Ion Battery

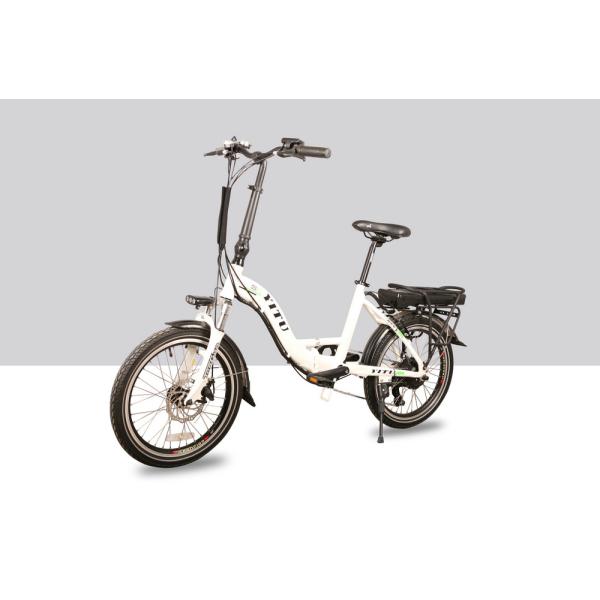

TUV EN15194 Battery Powered Folding Bike 36V 10Ah Li Ion Battery

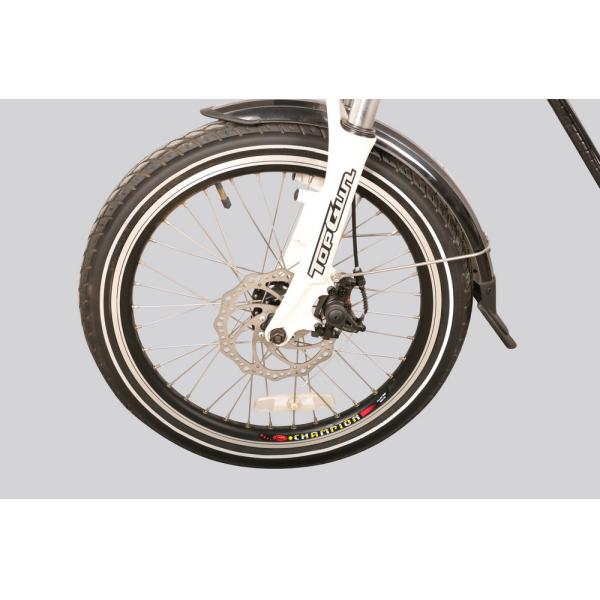

Disc brakes system, and 20" x 2.125 Kenda tire

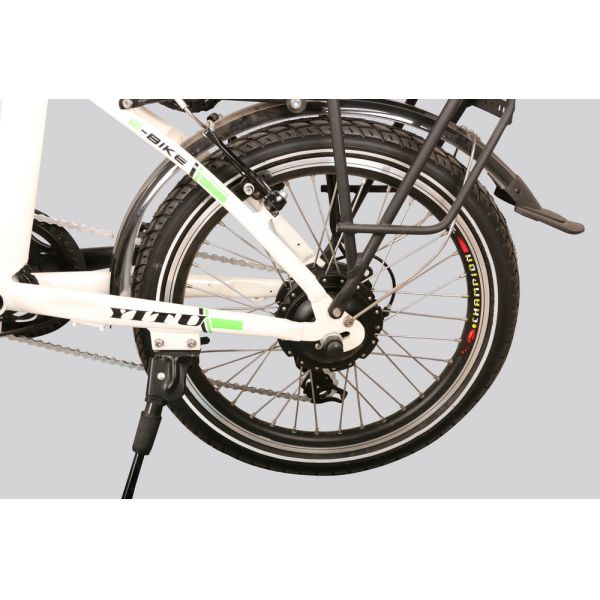

TUV EN15194 Battery Powered Folding Bike 36V 10Ah Li Ion Battery

TUV EN15194 Battery Powered Folding Bike 36V 10Ah Li Ion Battery
