40km/H Motorized Bicycle Scooter 48V 20Ah Lead Acid Gel Battery
40km/H Motorized Bicycle Scooter 48V 20Ah Lead Acid Gel Battery
40km/H Motorized Bicycle Scooter 48V 20Ah Lead Acid Gel Battery
40km/H Motorized Bicycle Scooter 48V 20Ah Lead Acid Gel Battery
40km/H Motorized Bicycle Scooter 48V 20Ah Lead Acid Gel Battery
40km/H Motorized Bicycle Scooter 48V 20Ah Lead Acid Gel Battery
Specifications
Brand Name :
DREAM WHEEL
Model Number :
EBS628-02
Certification :
CE
Place of Origin :
CHINA
MOQ :
2PCS
Price :
USD
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
3500PCS per month
Delivery Time :
20 days
Packaging Details :
Carton+ protecting cover+foam
Name :
Motorized Bicycle Scooter
Speed :
40km/h
Tire :
10"X3.5 tubeless
Motor :
48V 500W
Package :
Carton+protecting cover+steel frame
Battery :
48V 20Ah lead acid gel
Description

Fastest Electric Bike Scooter / 48V 20Ah Powered Scooters 25Km - 40Km/H

Quick Details

1. Motor power: 48V 500W brushless motor

2. Lead Acid Gel battery: 48V 20Ah

3. Tire size: 10"x3.5

4. Brake system: Hydraulic disc brake for both wheels

5. Pedals assisted system and Throttle: YES

6. Max Speed: 40km/h (24.8mi/h)

Product Descriptions

EBS628-02, is one new pedal assist electric scooter in 2015, make with pedals, 500W motor and 32km/h speed limited. So no need Licence and tax. Can share the same rights as normal bicycle. Now they are very popular in North American market.

We install 48V 20Ah battery capacity totally in this scooter, to make drive distance with 55km per charger.

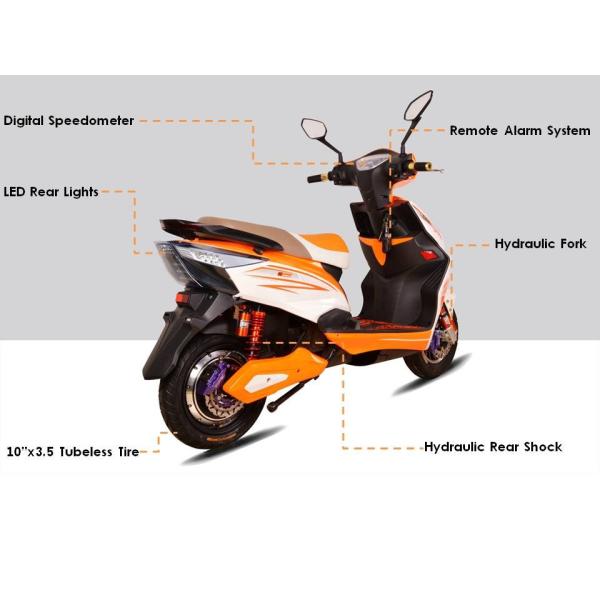

Components

1. Motor and controller. The latest generation power system, three phase motor and controller, offer the model more strong powerful. When drive with high speed, the motor will be more quiet and save electricity.

2. Brake and suspension. 10”x 3.5 inch tire, equipped with 190mm brake disc, let the operation stability is improved. Straight tube shock absorber, make the brake stable and reduce the subduction phenomenon, also enhance the driving safety greatly.

3. Seat. Using the latest technology to improve the foaming material, and the thickness and comfort of the saddle. Make riding more comfortable, not easy to fatigue for long time driving.

Specifications

Model number

EBS628-02

Motor

48V 500W brushless DC hub motor

Battery

48V 20Ah lead acid gel battery

Charge time

4-8h

Charger

48V 2.5A, dual, plug can be customized

Controller

48V 35A

Speed

40Km/h

Speed mode

3 speed

Driving distance

55-60km

Weight

85Kgs

Packing dimension

1770x585x1160mm

Package

95% completed, one piece per carton

Panel/speedometer

Normal style

Driving mode

Pedals assist and throttle

Alarm system

Remote alarm

Wheel

10”

Tire

10"x3.5

Chain

stainless

Frame

Paint with electrophoretic coating

Fork

Hydraulic suspension

Shift lever

--

Rear derailleur

--

Front brake

Hydraulic Disc Brake

Rear brake

Hydraulic Disc Brake

Brake levers

Aluminum

Rims

Aluminum alloy

Spokes

--

Pedals

normal

Chainwheel

28T

Cranks

steel

Freewheel

16T

Handlebar

Steel

Stem

--

Grip

140MM

Seat

Lengthen, comfortable, for two persons

Seat tube

--

Headlamp

Normal, but bright

Fenders

Plastics

Wheel base

1285mm

Min ground clearance

115mm

Saddle ground clearance

780mm

Handlebar ground clearance

980mm

Licence requirement

NO

Key Features

40km/H Motorized Bicycle Scooter 48V 20Ah Lead Acid Gel Battery

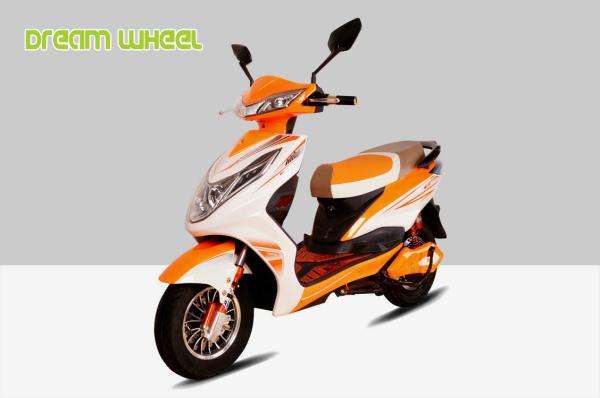

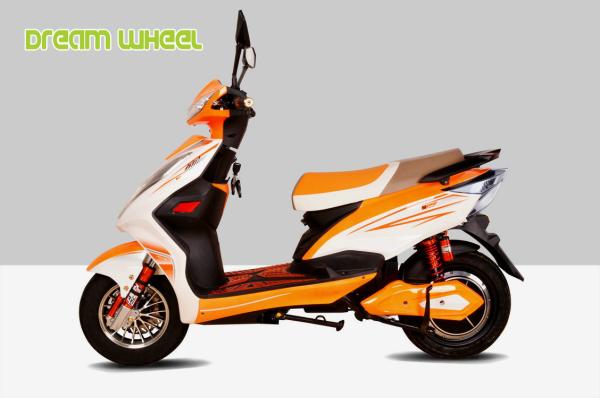

Pictures Show

40km/H Motorized Bicycle Scooter 48V 20Ah Lead Acid Gel Battery40km/H Motorized Bicycle Scooter 48V 20Ah Lead Acid Gel Battery40km/H Motorized Bicycle Scooter 48V 20Ah Lead Acid Gel Battery

40km/H Motorized Bicycle Scooter 48V 20Ah Lead Acid Gel Battery

40km/H Motorized Bicycle Scooter 48V 20Ah Lead Acid Gel Battery

40km/H Motorized Bicycle Scooter 48V 20Ah Lead Acid Gel Battery

40km/H Motorized Bicycle Scooter 48V 20Ah Lead Acid Gel Battery

40km/H Motorized Bicycle Scooter 48V 20Ah Lead Acid Gel Battery

40km/H Motorized Bicycle Scooter 48V 20Ah Lead Acid Gel Battery

40km/H Motorized Bicycle Scooter 48V 20Ah Lead Acid Gel Battery

40km/H Motorized Bicycle Scooter 48V 20Ah Lead Acid Gel Battery

40km/H Motorized Bicycle Scooter 48V 20Ah Lead Acid Gel Battery40km/H Motorized Bicycle Scooter 48V 20Ah Lead Acid Gel Battery
