Specifications
Brand Name :
DREAM WHEEL
Model Number :
HP-E005
Certification :
EN15194
Place of Origin :
CHINA
MOQ :
5 units
Price :
USD
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
2000pcs per month
Delivery Time :
20-25days
Packaging Details :
Carton and protecting cover
Lithium battery :
36V 10.4Ah Samsung cells
Color :
White, Black, Blue, Silver, Grey,Red
Package :
Carton and protecting cover
Have sold in :
Italy, Sweden, Australia, Israel, Colombia, Canada
Delivery time :
25days for LCL
Description

36V 250W Electric City Bike 26 Inch Wheel Urban Commuter Bicycle Aluminum Frame

Quick Details


1. Motor power: 36V 250W BAFANG rear GEAR motor
2. Frame material: Aluminum alloy 6061
3. Lithium battery: 36V 10.4Ah Samsung cells
4. Certification: EN15194
5. Wheel size: 26"
6. Brake system: Disc brake for front wheel; Shimano V brake for rear wheel
7. Derailleur system: Shimano RD-TX55
8. Pedals assisted system: Yes

Product Descriptions

This electric city bike is our classic model, we have sold for 8 years in some countries, have been test by thousands of users. The quality is stable and reliable. It has got CE( EN15914) certification. This electric city bike adopt Shimano out 6 derailleur , and 36V 250W BAFANG classic rear mounted motor, can give driver more help to meet various road condition.

Now only need USD465 FOR LCL order. The cruiser frame design, it’s convenient for both men and ladies. It will be best choice in urban commuter.

Components

1. BAFANG rear Gear motor, China famous electric bike motor supplier. This rear-drive motor, which is compatible with the disc brake, has a rated power of 250-500W, a reduction ratio of 1: 5 and a maximum torque of 48 N.m, providing ideal power for vehicles.

2. Shimano TX rear derailleur

more positive gear-changing due to less flex in the parallelogram

better gear-changing with good cable leverage

better obstruction clearance

less danger of catching spokes.

slight weight savings.

3. Shimano V brake, high efficient brake system and easy to replace.

4. ZOOM fork, city trekking series, made with Spring pressure system, adjustable preload, mechanical easy lock-out.

5. ZOOM disc brake, from TAIWAN high quality brake system supplier.

6. Velo seat, high end seat supplier from TAIWAN, in any case, the wider and more comfortable seat can provide more experiences for riders.

7. SPANNINGA high quality LED headlamp, from Netherlands

Specifications

Model number

HP-E005

Motor

BAFANG, 36V 250W rear GEAR motor

Battery

36V 10.4Ah lithium, SAMSUNG cells

Charge time

4-8h

Charger

110-240V, 36V 2A, plug can be customized

Controller

36V 14A

Speed

25Km/h

Driving distance

55-60km by PAS

Weight

26Kgs

Packing dimension

1700x250x780mm

Panel/speedometer

LED style

Wheel

26”

Tire

26”x1.75, KENDA on road tire

Chain

1/2*1/8*110L, KMC rust-proof

Frame

Aluminum alloy 6061

Fork

26”, travel 100MM, 28.6*25.4*202L*100MM

Shift lever

Shimano 6 speed

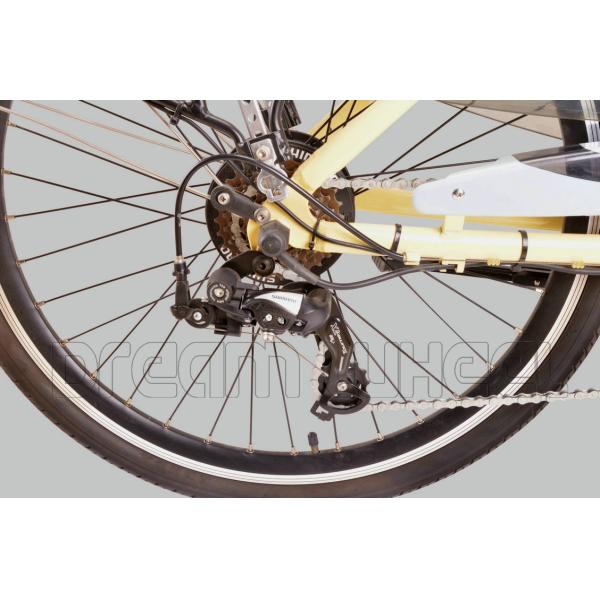

Rear derailleur

Shimano RD-TX55

Front brake

ZOOM Disc Brake

Rear brake

Shimano V Brake

Brake levers

Aluminum

Rims

Aluminum alloy,26”*1.75*36H*13G

Spokes

Front:13GX245/247; Rear:13GX243/242;

Pedals

Wellgo, with ball

Chainwheel

1/2*3/32*44T, aluminum

Cranks

Aluminum, 170L

Freewheel

14-28T

Handlebar

ZOOM Aluminum, W610x2.0T

Stem

ZOOM Aluminum

Grip

140MM

Seat

Velo, city classic bike

Seat tube

Aluminum with suspension, 27.2*300*2.0T

Lamp

LED for front, SPANNINGA

Wheel base

1170mm

Min ground clearance

110mm

Saddle ground clearance

Max:990mm; Min:790mm

Handlebar ground clearance

1150mm

Licence requirement

NO
