Specifications
Brand Name :
DREAM WHEEL
Model Number :
EBS552
Certification :
CE
Place of Origin :
CHINA
MOQ :
2 units
Price :
USD
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
3500pcs per month
Delivery Time :
25 days
Packaging Details :
Carton and protecting cover; 80pcs in 1x20", 198pcs in 1x40HQ
Color :
Blue and white, Yellow and white; Green and white
Frame :
Steel
Brake :
drum brake with lock for rear wheel
Delivery time :
25days for full container
Wheel size :
16"
Weight :
36kgs
Description

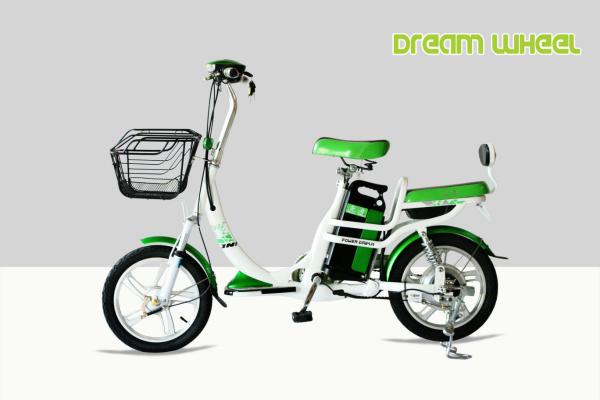

12Ah Lithium 16"Electric Bike Pedal Assist Steel Drum Brake With Lock 36Kgs

Quick Details

1. Motor power: 48V 250W brushless motor

2. Frame material: steel

3. Lithium battery: 48V 12Ah

4. Wheel size: 16”

5. Brake system: drum brake for both wheels

6. Headlamp: LED style

Product Descriptions

EBS552 is one small two wheels pedal assist electric bike with new design in 2015, but install 48V 12Ah lithium battery. The battery weight is only 3.5KGS, and can be removable. Take it to charge at home or any indoor place, so easy. Especially for Lady, take away without any trouble.

The drive distance can reach 55km by Pedals assist sytem. It's very convenient for urban commuter.

This bike colour, Blue, Green and Yellow are available.

Components

1. 48V 12Ah lithium battery, make whole bike as light as we can. 250W motor, European standard.

2. Complete wheel motor, let it use for longer.

3. LED headlamp, turning lights and brake light. Save battery power, make your drive more longer.

4. Comfortable dual seats, for two persons design. Take your children go shopping or go school, very cool. We not only consider for you, also for your child.

5. Rear brake with lock motor function, to make your bike more security. When insert the key in brake hole, and turn right direction, the motor will be Locked, can not move any more.

Specifications

Model number

EBS552

Motor

48V 250W rear brushless motor

Battery

48V 12Ah lithium battery, removable easily

Charge time

4-8h

Charger

48V 1.8A, plug can be customized

Controller

48V 15A

Speed

25Km/h

Driving distance

45-55km by PAS

Weight

37.5Kgs

Packing dimension

1420x280x800mm

Panel/speedometer

--

Driving mode

Pedals assist and Throttle

Wheel

16”

Tire

16”x2.125

Chain

Stainless

Frame

Paint with electrophoretic coating , 16”

Fork

Steel with suspension, 16”

Shift lever

--

Rear derailleur

--

Front brake

Drum Brake

Rear brake

Drum Brake with lock motor function

Brake levers

Aluminum

Rims

Aluminum alloy

Spokes

--

Pedals

Normal

Chainwheel

32T

Cranks

Steel

Freewheel

16T

Handlebar

Steel, W590

Stem

--

Grip

136MM

Seat

dual

Seat tube

--

Headlamp

LED

Fenders

Plastics

Wheel base

1050mm

Min ground clearance

110mm

Saddle ground clearance

Front:770mm; Rear:560mm

Handlebar ground clearance

1000mm

Licence requirement

NO
