14 30km/H 48V Battery Assisted Pedal Cycles With LED Headlamp
14 30km/H 48V Battery Assisted Pedal Cycles With LED Headlamp
14 30km/H 48V Battery Assisted Pedal Cycles With LED Headlamp
14 30km/H 48V Battery Assisted Pedal Cycles With LED Headlamp
Specifications
Brand Name :
DREAM WHEEL
Model Number :
EBS532-02
Certification :
CE
Place of Origin :
CHINA
MOQ :
2 units
Price :
USD
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
3500pcs per month
Delivery Time :
30 days
Packaging Details :
Carton and protecting cover
Color :
Pink and white; Blue and white, Yellow and white
Seat :
dual
Container loading :
80pcs in 1x20"; 198pcs in 1x40"HQ
Delivery time :
30days for full container
Wheel size :
14"
Battery :
48V 12Ah lithium battery
Description

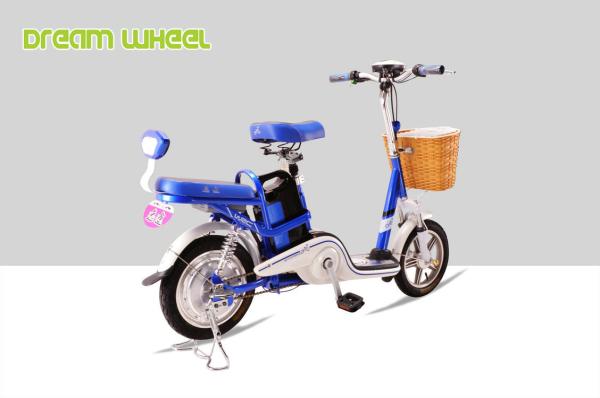

14" 30km / h 48V Battery Electric Bike Pedal Assist With LED Headlamp

Quick Details

1. Motor power: 48V 350W brushless motor

2. Frame material: steel

3. Lithium battery: 48V 12Ah

4. Wheel size: 14”

5. Brake system: drum brake for both wheels

6. Derailleur system: No

7. Pedals assisted system and Throttle: Yes

Product Descriptions

EBS532 is one small city style pedal assist electric bike with new design in 2015, but install 48V 12Ah lithium battery. The battery weight is only 3.5KGS, and can be removable. Take it to charge at home or any indoor place, so easy. Especially for Lady, take away without any trouble.

You can drive it like normal bicycle with pedals, but feel more light, as our bike offer electricity help. So the speed will be faster than normal bike, but with only small human power. When you tired, let you feet on the base, loose yourself to enjoy on the way. This is what we can give you, a better daily transportation solution.

More important, we make the cost as lower as we can, to let more people share them.

Components

1. 48V 12Ah lithium battery, make whole bike as light as we can. 250W motor, European standard.

2. LED headlamp, turning lights and brake light. Save battery power, make your drive more longer.

3. Full Suspension system, make your driving more comfortable.

4. Comfortable dual seats, for two persons design. Take your children go shopping or go school, very cool. We not only consider for you, also for your child.

Key Features

14

Specifications

Model number

EBS532-02

Motor

48V 350W rear brushless motor

Battery

48V 12Ah lithium battery, removable easily

Charge time

4-8h

Charger

48V 1.8A, plug can be customized

Controller

48V 18A

Speed

30Km/h

Driving distance

45-55km by PAS

Weight

38Kgs

Packing dimension

1420x280x800mm

Panel/speedometer

--

Driving mode

Pedals assist and Throttle

Wheel

14”

Tire

14”x2.125

Chain

Stainless

Frame

Paint with electrophoretic coating , 14”

Fork

Steel with suspension, 14”

Shift lever

--

Rear derailleur

--

Front brake

Drum Brake

Rear brake

Drum Brake with lock motor function

Brake levers

Aluminum

Rims

Aluminum alloy

Spokes

--

Pedals

Normal

Chainwheel

32T

Cranks

Steel

Freewheel

16T

Handlebar

Steel, W600

Stem

--

Grip

136MM

Seat

dual

Seat tube

--

Headlamp

LED

Fenders

Plastics

Wheel base

1090mm

Min ground clearance

120mm

Saddle ground clearance

Front:760mm; Rear:560mm

Handlebar ground clearance

1000mm

Licence requirement

NO

Pictures Show

14141414
