48V 20Ah Battery Pedal Assist Electric Scooter 500W With Sine Wave Controller
48V 20Ah Battery Pedal Assist Electric Scooter 500W With Sine Wave Controller
48V 20Ah Battery Pedal Assist Electric Scooter 500W With Sine Wave Controller
48V 20Ah Battery Pedal Assist Electric Scooter 500W With Sine Wave Controller
48V 20Ah Battery Pedal Assist Electric Scooter 500W With Sine Wave Controller
48V 20Ah Battery Pedal Assist Electric Scooter 500W With Sine Wave Controller
48V 20Ah Battery Pedal Assist Electric Scooter 500W With Sine Wave Controller
48V 20Ah Battery Pedal Assist Electric Scooter 500W With Sine Wave Controller
48V 20Ah Battery Pedal Assist Electric Scooter 500W With Sine Wave Controller
48V 20Ah Battery Pedal Assist Electric Scooter 500W With Sine Wave Controller
Specifications
Brand Name :
DREAM WHEEL
Model Number :
EBS664-2
Certification :
CE
Place of Origin :
CHINA
MOQ :
5units
Price :
USD
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
3500 units per month
Delivery Time :
25days
Packaging Details :
7 layer strong carton plus moistureproof bag
Motor :
hub brushless motor
Power :
500W
Speed :
32km/h
Colours :
Red, Black, White
Controller :
Sine wave controller
Climb ability :
15 degree
Description

500w 48v 20ah Battery Pedals Assist Electric Bike Scooter With Sine Wave Controller

Quick Details

1. Motor power: 48V 500W three phase motor

2. Controller: new generation Sine wave controller

3. Lead Acid Gel battery: 48V 20Ah

4. Tire size: 16”X 2.5

5. Brake system: Drum brakes for both wheel

6. Pedals assisted system and Throttle: Yes

7. Max Speed: 32km/h

Product Descriptions

EBS664-2 is one classic pedals assist electric scooter, but use new Sine wave controller. Less noise and save electricity!

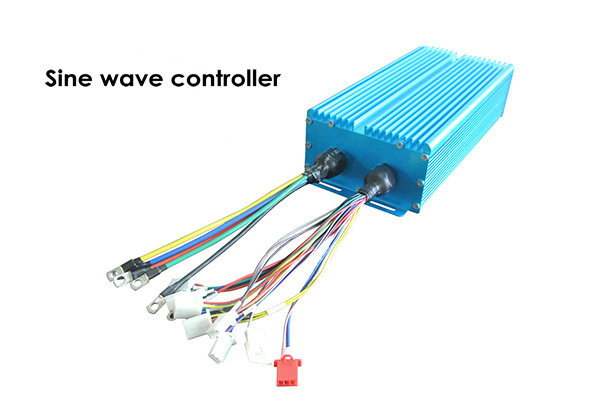

The sine wave controller adopts vector control, which can reduce the noise of the motor effectively, and when start the motor with more smoothly. Especially when the motor work at low speed, the torque utilization rate of the magnetic field is relatively high, so the torque at low speed will get improved. It’s helpful to climb hills and save power.

Components

-Drum brake system. This electric scooter installed drum brakes for front and rear wheel, to make good performance and balance cost.

-LED headlamps design, to make the scooter see longer and clearly. Also save electricity for whole scooter.

-Full suspension system.

-Digital speedometer, to display more information, like battery power, speed, lights.

- Sine wave controller.

48V 20Ah Battery Pedal Assist Electric Scooter 500W With Sine Wave Controller

Specifications

Model number

EBS664-2

Motor

48V 500W hub brushless motor

Battery

48V 20Ah lead acid gel battery, removable

Charge time

4-8h

Charger

48V 2.5A, plug can be customized

Controller

48V 12 tubes sine wave controller

Speed

32Km/h

Speed mode

3 level

Driving distance

50-60km by PAS

Weight

78Kgs

Packing dimension

1600x450x1000mm

Package

90% completed, one piece per carton

Panel/speedometer

Digital display

Driving mode

Pedals assisted and Throttle

Alarm system

Remote alarm

Wheel

16”

Tire

16”x2.5, CST tire

Chain

stainless

Frame

Paint with electrophoretic coating

Fork

Hydraulic suspension

Shift lever

--

Rear derailleur

--

Front brake

Drum Brake

Rear brake

Drum Brake

Brake levers

Aluminum

Rims

Aluminum alloy

Spokes

--

Pedals

Foldable

Chainwheel

28T

Cranks

steel

Freewheel

16T

Handlebar

Steel

Stem

--

Grip

136MM

Seat

Lengthen, comfortable

Seat tube

--

Headlamp

LED

Fenders

Plastics

Wheel base

1245mm

Min ground clearance

120mm

Saddle ground clearance

770mm

Handlebar ground clearance

980mm

Licence requirement

250W no need for EU; 500W no need for North America

Pictures Show

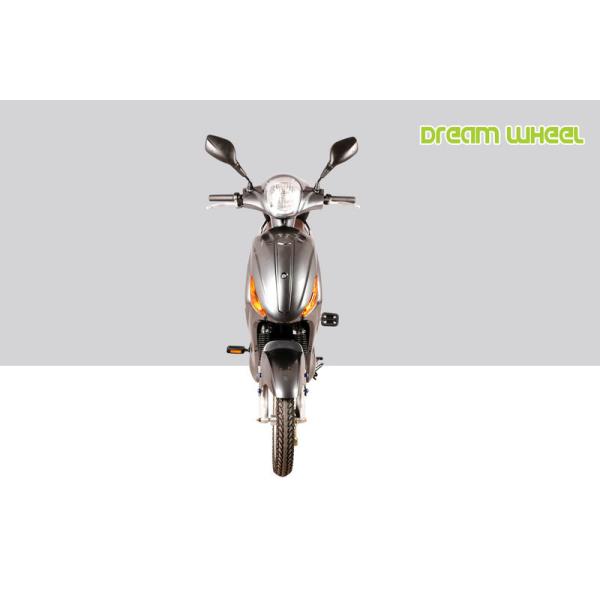

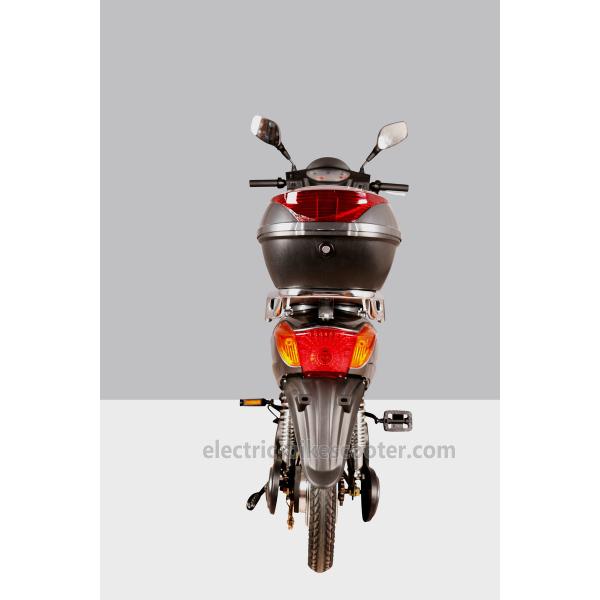

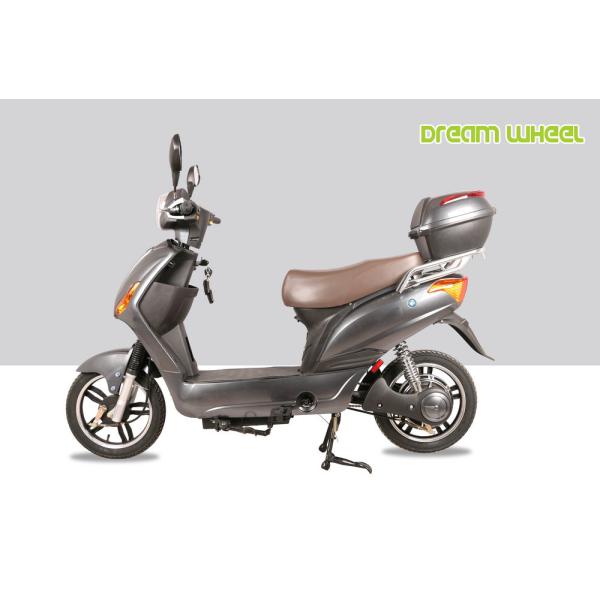

48V 20Ah Battery Pedal Assist Electric Scooter 500W With Sine Wave Controller

48V 20Ah Battery Pedal Assist Electric Scooter 500W With Sine Wave Controller48V 20Ah Battery Pedal Assist Electric Scooter 500W With Sine Wave Controller

48V 20Ah Battery Pedal Assist Electric Scooter 500W With Sine Wave Controller48V 20Ah Battery Pedal Assist Electric Scooter 500W With Sine Wave Controller

48V 20Ah Battery Pedal Assist Electric Scooter 500W With Sine Wave Controller

48V 20Ah Battery Pedal Assist Electric Scooter 500W With Sine Wave Controller

48V 20Ah Battery Pedal Assist Electric Scooter 500W With Sine Wave Controller48V 20Ah Battery Pedal Assist Electric Scooter 500W With Sine Wave Controller48V 20Ah Battery Pedal Assist Electric Scooter 500W With Sine Wave Controller
