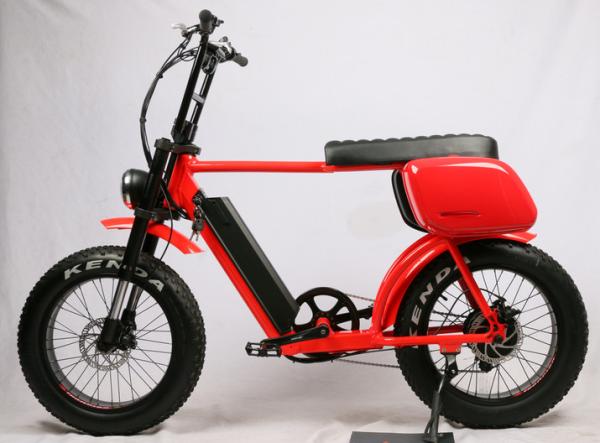

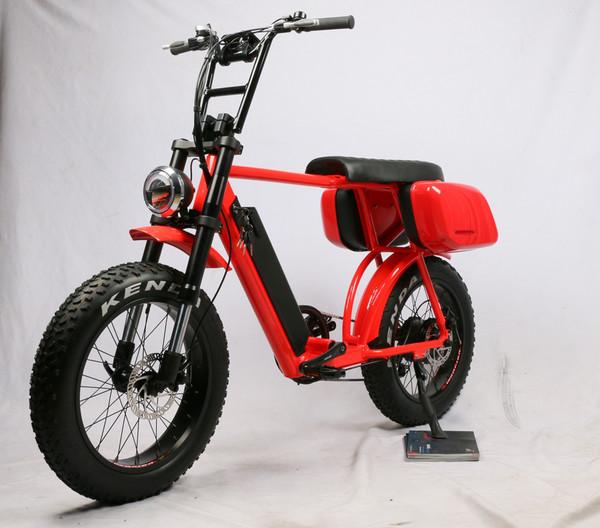

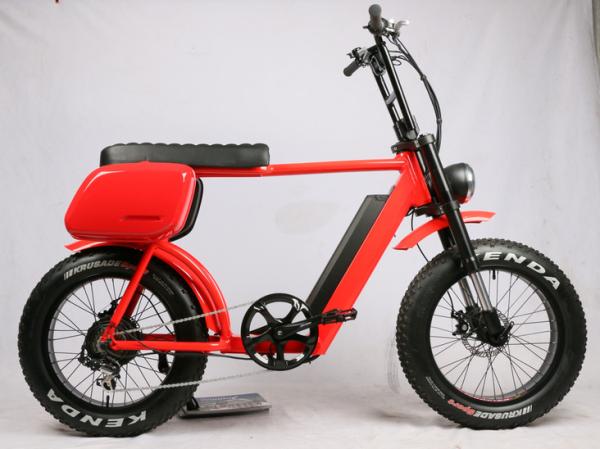

48V 750W New design 2022 Electric Fat Tire Bike , Electric Fat Tire Bicycle EN15194
48V 750W New design 2022 Electric Fat Tire Bike , Electric Fat Tire Bicycle EN15194
48V 750W New design 2022 Electric Fat Tire Bike , Electric Fat Tire Bicycle EN15194
48V 750W New design 2022 Electric Fat Tire Bike , Electric Fat Tire Bicycle EN15194
48V 750W New design 2022 Electric Fat Tire Bike , Electric Fat Tire Bicycle EN15194
48V 750W New design 2022 Electric Fat Tire Bike , Electric Fat Tire Bicycle EN15194
Specifications
Brand Name :
DREAM WHEEL
Model Number :
EBS-76
Certification :
EN15194
Place of Origin :
CHINA
MOQ :
10 units
Price :
USD820-900
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
2500PCS per month
Delivery Time :
60days
Packaging Details :
Carton and protecting cover
Tire :
20" x4.0 Kenda fat tire
Speed :
30-40km/h
Color :
Black, White, Red, grey
Package size :
150x28x90cm
Fork :
alloy aluminum with suspension
Battery :
48V 13AH Samsung cells
Motor :
48V 750W
Description

Electric super bike 73 fat tire bike 48V 750W 2022 new design

Quick Details

1. Motor power: 48V 750W rear motor

2. Frame material: Aluminum alloy 6061

3. Lithium battery: 48V 13Ah Samsung cells

4. Certification: EN15194

5. Wheel size: 20”

6. Brake system: Disc brake for both wheels

7. Derailleur system: Shimano 7 speed

8. Pedals assisted system: PAS and throttle

Product Descriptions

Dream Wheel Technology, offers a state of the art battery and frame design, and artfully combines the highest quality parts from the most competitive manufacturers Shimano, ZOOM, KENDA, KMC and VELO, to make reliable products.

We provide two drive modes on this bike, Pedals Assistant System and Accelerating system. this EBS-73 is our new design electirc fat tire bike. 48V 500W /750W rear motor. 13Ah lithium battery with Samsung/LG cells. the bikemore new colours are optional.

Specifications

Model number

EBS-76

Motor

48V 750W rear hub motor

Battery

48V 13Ah lithium, SAMSUNG cells,624Wh

Charge time

4-6h

Charger

110-240V, 48V 2A with UL standard

Controller

48V 22A

Spee

d1

30-40Km/h

Driving distance

45-55km by PAS

Weight

30Kgs

Packing dimension

1500x280x900mm

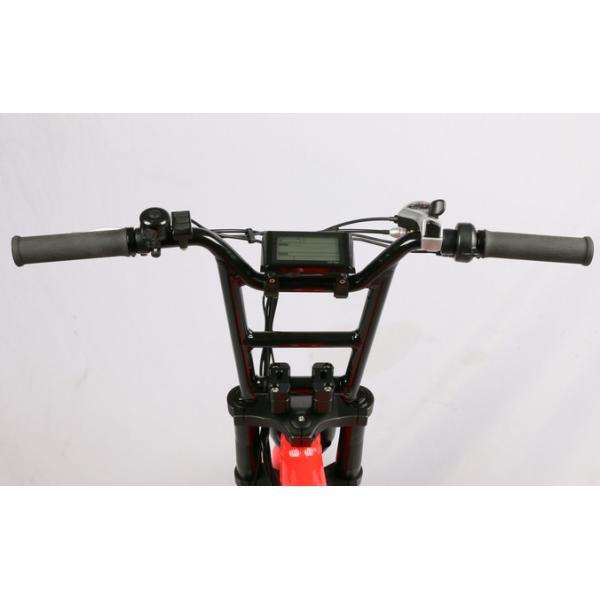

Panel/speedometer

LCD style

Wheel

20”

Tire

20”x4.0, KENDA fat tire

Chain

1/2*3/32*114L, KMC rust-proof

Frame

Aluminum alloy 6061

Fork

20”, travel 100MM

Shift lever

Shimano 7 speed

Rear derailleur

Shimano RD-TX55

Front brake

Mechanical Disc Brake

Rear brake

Mechanical Disc Brake

Brake levers

Aluminum, 47PDD

Rims

Aluminum alloy

Spokes

Front:13GX176/178; Rear:12GX123/125;

Pedals

Wellgo, with ball

Chainwheel

1/2*3/32*52T, aluminum

Cranks

Aluminum, 170L

Freewheel

14-28T

Handlebar

ZOOM Aluminum

Stem

ZOOM Aluminum

Grip

140MM

Seat

Velo

Seat tube

Aluminum, 27.2*300*1.4T

Lamp

LED for front and rear

Wheel base

1090mm

Min ground clearance

90mm

Saddle ground clearance

--

Handlebar ground clearance

1120mm

Licence requirement

NO

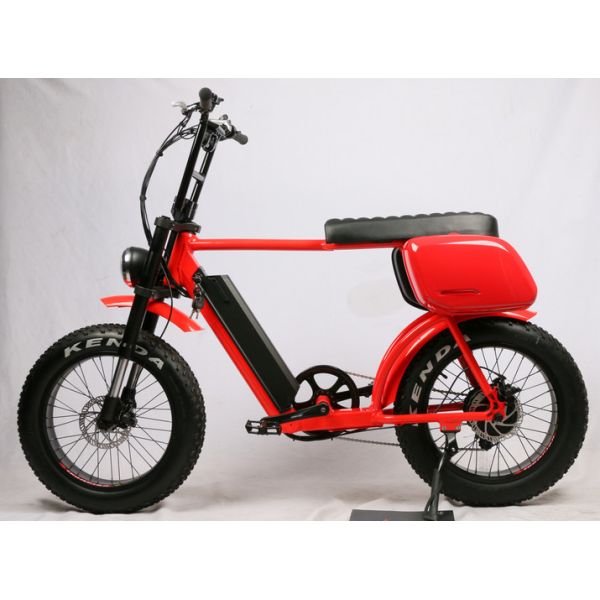

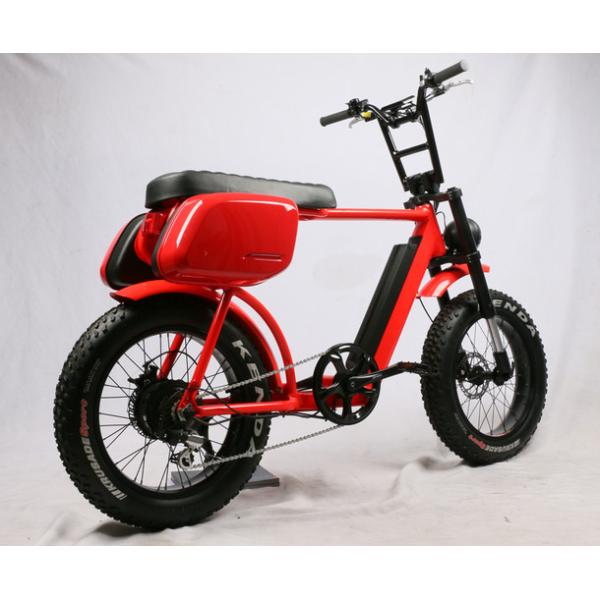

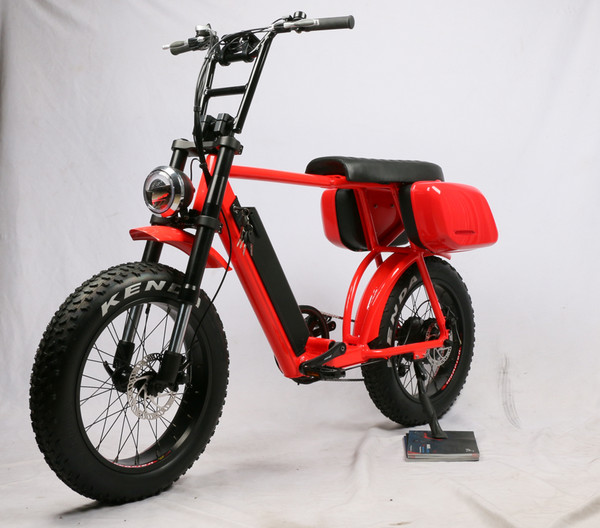

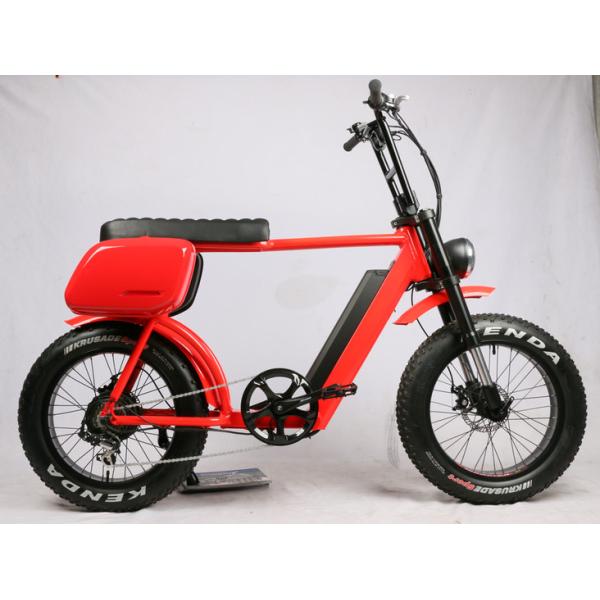

Pictures Show

48V 750W New design 2022 Electric Fat Tire Bike , Electric Fat Tire Bicycle EN1519448V 750W New design 2022 Electric Fat Tire Bike , Electric Fat Tire Bicycle EN1519448V 750W New design 2022 Electric Fat Tire Bike , Electric Fat Tire Bicycle EN1519448V 750W New design 2022 Electric Fat Tire Bike , Electric Fat Tire Bicycle EN15194

48V 750W New design 2022 Electric Fat Tire Bike , Electric Fat Tire Bicycle EN15194

48V 750W New design 2022 Electric Fat Tire Bike , Electric Fat Tire Bicycle EN1519448V 750W New design 2022 Electric Fat Tire Bike , Electric Fat Tire Bicycle EN1519448V 750W New design 2022 Electric Fat Tire Bike , Electric Fat Tire Bicycle EN1519448V 750W New design 2022 Electric Fat Tire Bike , Electric Fat Tire Bicycle EN15194
