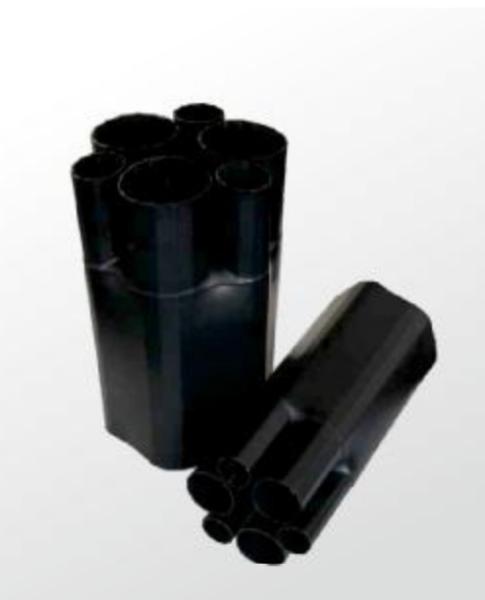

RoHS Insulated Waterproof Heat Shrinkable 6 Core Breakout Moulded Shapes
RoHS Insulated Waterproof Heat Shrinkable 6 Core Breakout Moulded Shapes
RoHS Insulated Waterproof Heat Shrinkable 6 Core Breakout Moulded Shapes
RoHS Insulated Waterproof Heat Shrinkable 6 Core Breakout Moulded Shapes
Specifications
Brand Name :
KORE
Model Number :
KR-WRSZT6
Certification :
ISO9001
Place of Origin :
JIANGSU, CHINA
MOQ :
1 piece
Price :
USD 0.1/pcs
Payment Terms :
T/T
Supply Ability :
10000pcs / day
Delivery Time :
1-7 days
Packaging Details :
Bag
Material :
Cross Linked Polyolefin
Insulator Type :
Heat Shrink Cable Breakout
Mix Order :
Yes
Origin :
CN(Origin)
Custom Pack :
Can Do
Lead Time :
3-7Days
Support :
Dropshipping
Environmental Standards :
RoHS
Description

Moulded Shapes RoHS Insulated Waterproof Splitter Heat Shrinkable 6-Core Breakout

Product Description:

Heat shrink molded shapes are specialized heat shrinkable products designed to sealing protection over 6-core cable crutch,such as trailing cable,variable frequency drive cable,telecommunication cables,control cable,etc.

These molded shapes are typically made from a durable polymer material, such as polyolefin, that has excellent heat shrink properties.

Features:

• Manufactured from cross-linked polyolefin

• Provide sealing protection over 6-core cable crutch,such as trailing cable,variable frequency drive cable,telecommunication cables,control cable,etc.

• Shrink temperature: start at 90°C, and fully recovered at 130°C.

• Flame-retardant breakouts are available upon customer request


• Inner coated with adhesive on the body and the fingers to form a durable watertight seal

Applications:

It is suitable for sealing insulation protection at the branch of multi-core cable, easy operation, reliable performance and long service life. It is generally used with 1KV, 10KV, 35KV heat shrinkable indoor cable terminals or outdoor cable terminals.

Technical Parameters:

Property Test Method Standard Value
Tensile Strength ASTM-D-638 ≥12MPa
Elongation at Break (120℃ ,168 hrs) ASTM-D-638 ≥300%
Tensile Strength after Aging (120℃,168 hrs) ASTM-D-638 ≥10MPa
Elongation at Break after Aging ASTM-D-638 ≥230%
Dielectric Strength IEC 60243 ≥15kV/mm
WaterAbsorption ISO 62 ≤0.5%
Volume Resistivity IEC 60093 ≥1 x 10^13Ω • cm

Select Table:

Product No ID As Supplied/mm ID After Recovered/mm
Body Diameter(D) Finger Diameter Full Length Finger Length Body diameter(D) Finger Diameter
Big finger(D2) Small finger(D1) (L)(±5) (FL)(±5) Big finger(D2) Small finger(D1)
WRSZT6-86/40(1#) ≥86 ≥32 ≥20 220 55 ≤40 ≤11 ≤8
WRSZT6-133/53(2#) 2133 255 ≥3 220 55 ≤53 ≤16 ≤11

Customization:

Customized logo
Min. order: 100
Customized packaging
Min. order: 100
Graphic customization
Min. order: 100
For more customization details, message supplier
Packaging and delivery
Packaging Details: According to the tubing's size
Packing size:46*46*45cm
Port: Any port in China

FAQ:

Professional Production Quality is Reliable
Q1 . Which certifications or test reports do you have?
A : We have UL,ROHS and REACH.

Q2 . How to ship my order? Is it safe?
A : For small package, we will send it by Express,such as Fedex, UPS,TNT, DHL and so on.
For big packages, we will send them by Air or By sea or by Train. We will use good packing and ensure the safety. We will be responsible to any product damage caused on delivery.”

Q3 . What about your delivery time?
A : We have a lot of products in stock. We can send the stock products in 3 work days.
If without stock,or stock is not enough, we will check the delivery time with you.” (Usually is 3-7days).

Q4 . Can you provide samples? Are the samples free?
A : Yes. We can provide samples.
Usually for our standard products with stock, we can supply samples free for testing.

Q5 . Could I put my own logo on it?
A : Sure, of course, we are a professional manufacture and have over 10 years OEM experience.
