Heat Shrink Semi Conductive Tube For MV Cable Joints Up To 42KV
Heat Shrink Semi Conductive Tube For MV Cable Joints Up To 42KV
Specifications
Brand Name :
WOER
Model Number :
WRSBG
Certification :
ISO9001
Place of Origin :
JIANGSU, CHINA
MOQ :
1 piece
Price :
USD 0.1/pcs
Payment Terms :
T/T
Supply Ability :
10000pcs / day
Delivery Time :
1-7 days
Packaging Details :
Bag
Flame-retardant :
Yes
Protective :
Cable Joints / Cable Teminations
Origin :
CN(Origin)
Logo :
Custom Can Do
Material :
Cross Linked Polyolefin
Lead Time :
3-7Days
Insulator Type :
Heat Shrink Tubing
UV Resistant :
Yes
Description

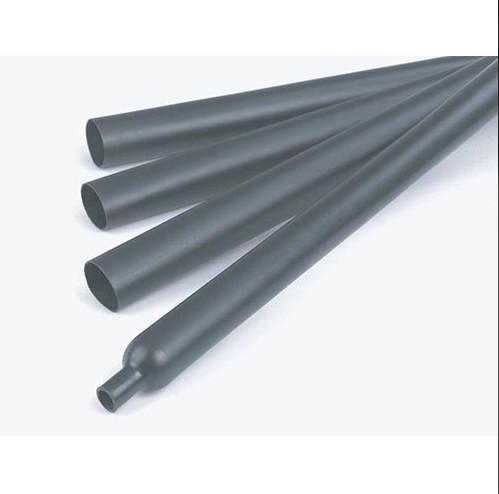

Heat Shrink Semi-conductive Tube For MV Cable Joints Up to 42KV

Product Description:

Manufactured from cross linked polyolefin. Providing effective electrical stress control for MV cable terminations and joints up to 42 kV

Features:

• Manufactured from cross-linked polyolefin
• Providing effective electrical stress control for MV cable terminations and joints up to 42 kV

• Shrink temperature: start at 90°C, and fully recovered at 130°C.

• Color:black.

Selection Table:

Product No Inner Diameter/mm After Recovered Wall
Thickness(±0.2)/mm		 Standard
Cut Length/mm		 Standard Continuous
Length(m/roll)
As supplied(Min) After Recovered(Max)
WRSBG-45/17 45 17 2.3 400-1200 25
WRSBG-50/17 50 17 2.3 400-1200 25
WRSBG-50/19 50 19 2.3 400-1200 25
WRSBG-55/19 55 19 2.3 400-1200 25
WRSBG-55/23 55 23 2.3 400-1200 25
WRSBG-60/23 60 23 2.3 400-120C 25
WRSBG-60/25 60 25 2.3 400-1200 25
WRSBG-65/25 65 25 2.3 400-1200 25
WRSBG-75/29 75 29 2.8 400-1200 25
WRSBG-80/29 80 29 2.8 400-1200 25
WRSBG-85/29 85 29 2.8 400-1200 15
WRSBG-100/29 100 29 2.8 400-1200 15
WRSBG-100/35 100 35 2.8 400-1200 15
WRSBG-120/35 120 35 2.8 400-1200 15

Technical Data:

Property Test Method Standard Value
Tensile Strength ASTM-D-638 ≥13MPa
Elongation at Break ACTM-D-638 ≥300%
Tensile Strength after Aging ASTM-D-638 ≥10.5MPa(130℃,168 hrs)
Elongation at Break after Aging ASTM-D-638 ≥240%(130℃,168 hrs)
Eccentricity ASTM-D-2671 ≤30%
Volume Resistivity EC 60093 ≥1×10^5Ω·cm
Water Absorption ISO 62 ≤0.5%
Longitudinal Shrinkage ASTM-D-2671 ≤10%

Customization:

Customized logo
Min. order: 10
Customized packaging
Min. order: 10
Graphic customization
Min. order: 10
For more customization details, message supplier
Packaging and delivery
Packaging Details: According to the tubing's size
Packing size:46*46*45cm
Port: Any port in China
FAQ

Professional Production Quality is Reliable
Q1 . Which certifications or test reports do you have?
A : We have UL,ROHS and REACH.

Q2 . How to ship my order? Is it safe?
A : For small package, we will send it by Express,such as Fedex, UPS,TNT, DHL and so on.
For big packages, we will send them by Air or By sea or by Train. We will use good packing and ensure the safety. We will be responsible to any product damage caused on delivery.”

Q3 . What about your delivery time?
A : We have a lot of products in stock. We can send the stock products in 3 work days.
If without stock,or stock is not enough, we will check the delivery time with you.” (Usually is 3-7days).

Q4 . Can you provide samples? Are the samples free?
A : Yes. We can provide samples.
Usually for our standard products with stock, we can supply samples free for testing.

Q5 . Could I put my own logo on it?
A : Sure, of course, we are a professional manufacture and have over 10 years OEM experience.
