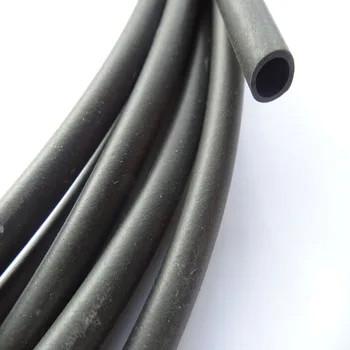

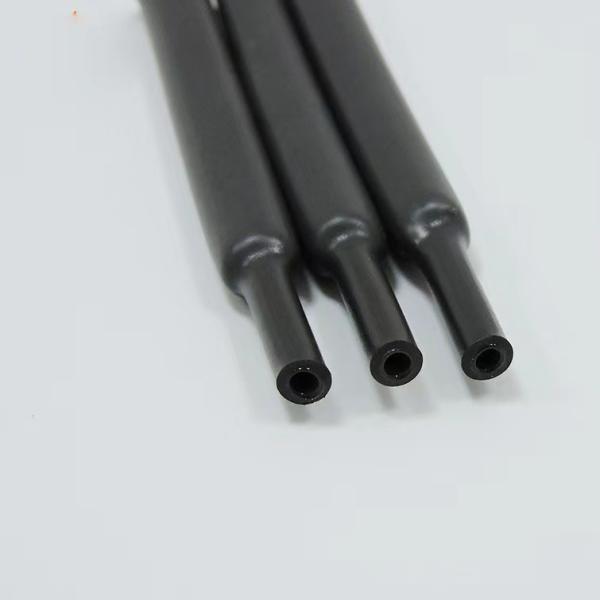

Heat Shrink Protective Tube For LV Cable Joints and Teminations
Heat Shrink Protective Tube For LV Cable Joints and Teminations
Heat Shrink Protective Tube For LV Cable Joints and Teminations
Heat Shrink Protective Tube For LV Cable Joints and Teminations
Specifications
Brand Name :
WOER
Model Number :
WRSHG
Certification :
ISO9001
Place of Origin :
JIANGSU, CHINA
MOQ :
1 piece
Price :
USD 0.1/pcs
Payment Terms :
T/T
Supply Ability :
10000pcs / day
Delivery Time :
1-7 days
Packaging Details :
Bag
Flame-retardant :
Yes
Protective :
Cable Joints / Cable Teminations
Origin :
CN(Origin)
Logo :
Custom Can Do
Material :
Cross Linked Polyolefin
Lead Time :
3-7Days
Insulator Type :
Heat Shrink Tubing
UV Resistant :
Yes
Description

Heat Shrink Protective Tube For LV Cable Joints and Teminations

Product Description:

Manufactured from cross linked polyolefin. Providing outer sealing protection for power cable joints up to 42kV. Used in 1kV cable joints and terminations to provide electrical insulation (φ50 and below)

Features:

• Manufactured from cross-linked polyolefin
• Providing outer sealing protection for power cable joints up to 42kV.
• Used in 1kV cable joints and terminations to provide electrical insulation (φ50 and below)

• Outstanding abrasion and chemical resistance

• Inner coated with adhesive at both ends.Tubes inner coated with adhesive at full length are available upon customer request.
• Shrink temperature: start at 90°C, and fully recovered at 130°C.

• Color:black,red,yellow,blue,green(∅50 and below;black only above ∅50).Other colors are available upon customer request.

Selection Table:

Product No Inner Diameter/mm After Recovered Wall
Thickness/mm		 Standard
Cut Length/mm		 Standard Continuous
Length(m/roll)
As supplied(Min) After Recovered(Max)
WRSHG-10/5 10 5 1.3±0.2 275-1000 25
WRSHG-15/6 15 6 1.2±0.2 275-1000 25
WRSHG-20/8 20 8 1.7±0.2 275-1000 25
WRSHG-30/11 30 11 1.8±0.2 275-1000 25
WRSHG-35/13 35 13 2.0±0.2 275-1000 25
WRSHG-40/17 40 17 2.2±0.2 275-1000 25
WRSHG-45/17 45 17 2.2±0.2 275-1000 25
WRSHG-50/22 50 22 2.6±0.2 800-1200 25
WRSHG-60/22 60 22 2.6±0.2 800-1200 25
WRSHG-80/29 80 29 2.9±0.2 800-1200 25
WRSHG-85/29 85 29 2.9±0.2 800-1200 25
WRSHG-100/38 100 38 3.1±0.2 800-1200 15
WRSHG-120/45 120 45 3.1±0.2 800-1200 15
WRSHG-140/49 140 49 3.6±0.3 800-1200 15
WRSHG-160/56 160 56 3.6±0.3 800-1200 15
WRSHG-180/61 180 61 3.9±0.3 800-1200 15
WRSHG-200/70 200 70 4.4±0.3 800-1200 15
WRSHG-225/70 225 70 4.4±0.3 800-1200 15
WRSHG-240/89 240 89 4.4±0.3 800-1200 15
WRSHG-290/100 290 100 4.4±0.3 800-1200 15
WRSHG-350/152 350 152 3.0±0.4 800-1200 15
WRSHG-400/171 400 171 3.0±0.4 800-1200 15
WRSHG-450/210 450 210 3.2±0.4 800-1200 15
WRSHG-500/210 500 210 3.2±0.4 800-1200 15
WRSHG-600/210 600 210 3.9±0.4 800-1200 15

Technical Data:

Property Test Method Standard Value
Tensile Strength ASTM-D-638 ≥12MPa
Elongation at Break ACTM-D-638 ≥400%
Tensile Strength after Aging ASTM-D-638 ≥10MPa(130℃,168 hrs)
Elongation at Break after Aging ASTM-D-638 ≥250%(130℃,168 hrs)
Dielectric Strength IEC 60243 ≥25kV/mm
Eccentricity ASTM-D-2671 ≤30%
Volume Resistivity EC 60093 ≥1×10^14Ω·cm
Dielectric Constant EC 60250/ASTM-D-150 ≤3.0
Water Absorption ISO 62 ≤0.5%
Longitudinal Shrinkage ASTM-D-2671 ≤10%
Copper Corrosion ASTM-D-2671 No corrosion (130℃,168 hrs)
Low Temnerature Flexiblit ASTM-D-2671 No cracking(-40℃,4 hrs)

Customization:

Customized logo
Min. order: 10
Customized packaging
Min. order: 10
Graphic customization
Min. order: 10
For more customization details, message supplier
Packaging and delivery
Packaging Details: According to the tubing's size
Packing size:46*46*45cm
Port: Any port in China
FAQ

Professional Production Quality is Reliable
Q1 . Which certifications or test reports do you have?
A : We have UL,ROHS and REACH.

Q2 . How to ship my order? Is it safe?
A : For small package, we will send it by Express,such as Fedex, UPS,TNT, DHL and so on.
For big packages, we will send them by Air or By sea or by Train. We will use good packing and ensure the safety. We will be responsible to any product damage caused on delivery.”

Q3 . What about your delivery time?
A : We have a lot of products in stock. We can send the stock products in 3 work days.
If without stock,or stock is not enough, we will check the delivery time with you.” (Usually is 3-7days).

Q4 . Can you provide samples? Are the samples free?
A : Yes. We can provide samples.
Usually for our standard products with stock, we can supply samples free for testing.

Q5 . Could I put my own logo on it?
A : Sure, of course, we are a professional manufacture and have over 10 years OEM experience.
