48V 2A E Bike Connector Waterproof 3 Pin Male Connector Cable
48V 2A E Bike Connector Waterproof 3 Pin Male Connector Cable
Specifications
Brand Name :
YIDE
Model Number :
YIDE-303
Place of Origin :
China
MOQ :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Delivery Time :
Negotiation
Price :
Negotiable
Function :
Airtight,Waterproof,Dustproof
Product name :
Waterproof Connector
product name :
E-Bike Connector
material :
PVC plastic / 66%PA+30%GF / Brass / Red copper
feature :
Durable / temperature resistance /freeze-proofing
Product Spec :
3PIN Male
serivce :
ODM&OEM
Sample :
Application: Automobile
Description

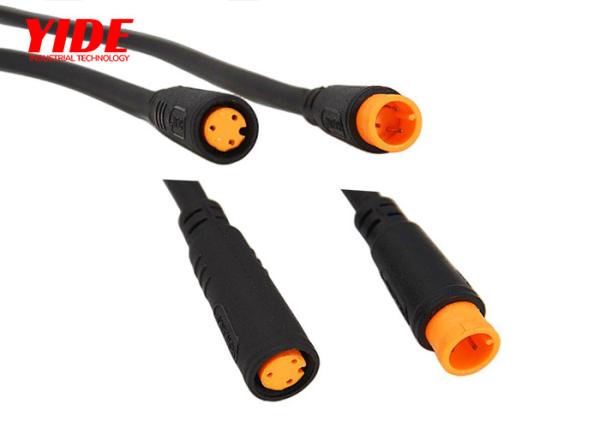

3 Pin Male 2A 48V Ebike Motor Extension Cable Waterproof Connector

1. product description

Cables and Connectors Complete Variety,wide Range of Applications;
More Secure and Reliable;
Solid Brass Nickel Plated Screws with Anti-vibration Loose Design, 48 Hours Salt Spray Tested;
Excellent Core Wire Cutting, Core Stripping and Welding Process;
the Special Flexible Material Cable Meets the Requirements of Mobile Wiring Drag Chain, Such As Bending Resistance and Abrasion Resistance;
Connector Assembly Method and Cable Length Can Be Customized.

2. application

Signal&power contal ans transmission of E-motorcycle

3. advantages

1) Using safer and more environmentally friendly materials

2) Adopt high quality brass, copper, brass lead-free alloy

3) Small resistance, fast current

4) Oxidation resistance, waterproof, high and low temperature resistance

5) More than 10 years of quality assurance for brand manufacturers' direct sales

2. specification

Brand: YIDE
P/N: YIDE-303
MOQ: 500PCS/PER
Place of Origin: Kunshan City,China
Delivery Time: 1 week
Start Port: Shanghai
General features:
Product Name M8 Series
Product Spec 3PIN Male
Connector locking system N/A
Degree of protection IP67
Ambient temperature(operation) -25°C~+85°C
Customs tariff number 8536901900
Environmental compliance RoHs, Reach
Electrical parameters:
Rated voltage 48V
Rated current(25°C) 2A
Withstand voltage 500V
Contact resistance ≤10mΩ
Insulation resistance ≥20MΩ
Mechanical performance:
Mechanical operation ≤200 mating cycles
Insertion force ≤20N
Pull out force ≥3N
Wiring range 0.14mm2-0.2mm2
Application Area
Signal contal and transmission of electric bicycles, balance bikes ans sooter

5. more picture

48V 2A E Bike Connector Waterproof 3 Pin Male Connector Cable

6. company profile

Jiaxing Yide Industrial Technology Co., Ltd was founded in 2011. The production base is located in the German Industrial Park, Zhangpu Town, Kunshan City, Suzhou, east of Shanghai, west of Suzhou, convenient transportation, beautiful environment. It is a comprehensive enterprise integrating research and development, production and export..Our products are popular in domestic and European and American markets.

Yide is a Chinese enterprise specializing in the production of high-power waterproof connector + wiring harness components, providing one-stop solutions for customers and Oems. Also is a leading provider of new energy charging pile related products.

Customized Service:


We provide flexible customized services with our abundant experiences in kinds of OEM and ODM projects.
OEM includes color, length, logo, packaging, etc.
ODM includes product appearance design, function setting, new product development, etc.
MOQ is depend on different customized requests.
