Battery Connectors 2+5pin Female Waterproof Connectors For E-Motorbike System
Battery Connectors 2+5pin Female Waterproof Connectors For E-Motorbike System
Battery Connectors 2+5pin Female Waterproof Connectors For E-Motorbike System
Battery Connectors 2+5pin Female Waterproof Connectors For E-Motorbike System
Specifications
Brand Name :
YIDE
Model Number :
YIDE -524
Place of Origin :
China
MOQ :
MOQ：500PCS/CTN
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Delivery Time :
Negotiation
product name :
Motorcycle Electrical Connector
material :
PVC plastic / NL66%PA+30%GF / Brass / Red copper
feature :
Durable / temperature resistance /freeze-proofing
Product Spec :
90A 2+5Pin Charge connector
color :
customized
packing :
100/200/500/1000PCS per bag with label, export standard carton
serivce :
ODM&OEM
Sample :
Free
certification :
UL，SGS，CE，MSDS，ISO9001，ROHS REACH，ETC.
Market :
Asia，America，EU，US， Mid East Africa
Description

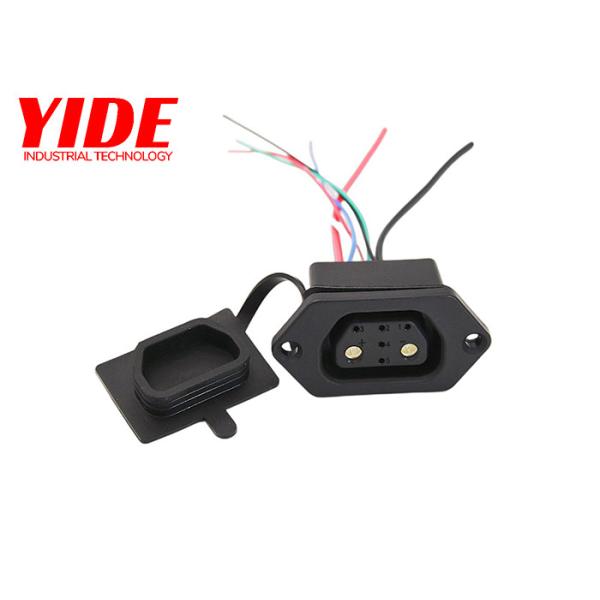

Battery Connectors 2+5pin Female Waterproof Connectors For E-Motorbike System

1. product description

This is 2+5pin famale waterproof connectors for E-Motorbike system can Signal & power contal and transmission of E-motorcycle,

The material are PVC plastic / NL66%PA+30%GF / Brass / Red copper etc.

IP65 connector.
Cable joint material: PVC, nylon PP, rubber.
You can connect male and female.
We Can provide you with customized solutions.
We Can provide colors and materials, and terminal processing.
Professional R & D team can help customize the project.

2. specification

Brand: YIDE
P/N:

YIDE-524
MOQ: 500PCS/PER
Place of Origin: Kunshan City,China
Delivery Time: 1 week
Start Port: Shanghai
General features:
Product Name

90A 2+5PIN charge connector
Product Spec

2 + 5Pin Famale
Connector locking system N/A
Degree of protection IP65
Ambient temperature(operation) -25°C~+85°C
Customs tariff number 8536901900
Environmental compliance RoHs, Reach
Electrical parameters:
Rated voltage 96V
Rated current(25°C) 90A
Withstand voltage 500V
Contact resistance ≤10mΩ
Insulation resistance ≥20MΩ
Mechanical performance:
Mechanical operation ≤5000 mating cycles
Insertion force ≤20N
Pull out force ≥3N
Wiring range

0.2m2 -- 10.0m2
Application Area

Signal & power contal and transmission of E-motorcycle

3. application

E-motorcycle,battery cable,lithium battery connector ETC.

Signal & power contal and transmission of E-motorcycle

4. advantages

Durable / temperature resistance /freeze-proofing

High current / low resistance

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

5. more picture

Battery Connectors 2+5pin Female Waterproof Connectors For E-Motorbike System

6. company profile

We are committed to providing customers with high quality products and services. We have a complete quality control system and advanced testing equipment to ensure the quality of our products. We also provide professional after-sales service to ensure the normal operation of our products.

Our mission is to live for safer and more efficient connectivity.

Fill the world with love and sunshine.

Yide Industrial Technology Co., Ltd. is dedicated to providing customers with high-quality and cost-effective connector and new energy charging pile solutions. We look forward to cooperating with you to create a better future.

7. FAQ

Why choose us?

1.Manufacturing experience: more then 10 years
2.Connectors passed UL,ROHS,REACH, and CE
3.Inspection:100% tested before delivery
4.For the term of trade,we accept EXW,FOB,CIF,CPT ect
5.We have good cooperation with the famous company
