50HZ/60HZ Portable EV Charger EVSE Box Type 1 Type 2 Mode 2
50HZ/60HZ Portable EV Charger EVSE Box Type 1 Type 2 Mode 2
50HZ/60HZ Portable EV Charger EVSE Box Type 1 Type 2 Mode 2
50HZ/60HZ Portable EV Charger EVSE Box Type 1 Type 2 Mode 2
50HZ/60HZ Portable EV Charger EVSE Box Type 1 Type 2 Mode 2
50HZ/60HZ Portable EV Charger EVSE Box Type 1 Type 2 Mode 2
50HZ/60HZ Portable EV Charger EVSE Box Type 1 Type 2 Mode 2
50HZ/60HZ Portable EV Charger EVSE Box Type 1 Type 2 Mode 2
50HZ/60HZ Portable EV Charger EVSE Box Type 1 Type 2 Mode 2
50HZ/60HZ Portable EV Charger EVSE Box Type 1 Type 2 Mode 2
Specifications
Brand Name :
Ruicheng EV Charger
Model Number :
Portable EV Charger
Certification :
CE, TUV, FC
Place of Origin :
China
MOQ :
1
Price :
$110-130
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1-100 units 15 - 20 working days,100-300 units 20-30 working days,300-500 units ≥30 working days
Delivery Time :
7 working days
Packaging Details :
by sea, by trailer, by containers, and by RO-RO ship
Type :
EV Charger
Application :
Electric Vehicle Charging
Operating Temperature :
-30℃ to +55℃
Standard :
IEC 62196-2 Type2/SAE J1772
Output Power :
50HZ/60HZ
Cable Length :
400cm
LED indicator :
Green
Weight :
2.1kg
Color :
Black
Description

Portable EV Charger Type 1 Type 2 Mode 2 10A 16A 32A Adjustable EVSE Small Charging Box For Electric Vehicle

Portable EV Charger

Product Configuration

Standards
Type 1, Type 2, GB/T
Rated Voltage
200V-450V (AC)
Rated Current
8A, 10A, 13A, 16A (AC)
Rated Frequency
50 HZ/ 60 HZ
Insulation Resistance
＞1000MΩ (DC500V)
Operating Temperature
-30℃ to +55℃
Storage Temperature
-40℃ to +80℃
Operating Humidity
5%-95%RH (Non-condensing)
Enclosure
In-cable box: IP65
Body Structure
Charging connector: IP54
Body Structure
Lithium Iron Phosphate Battery
Weight
2.1 Kg

Product Description

50HZ/60HZ Portable EV Charger EVSE Box Type 1 Type 2 Mode 2

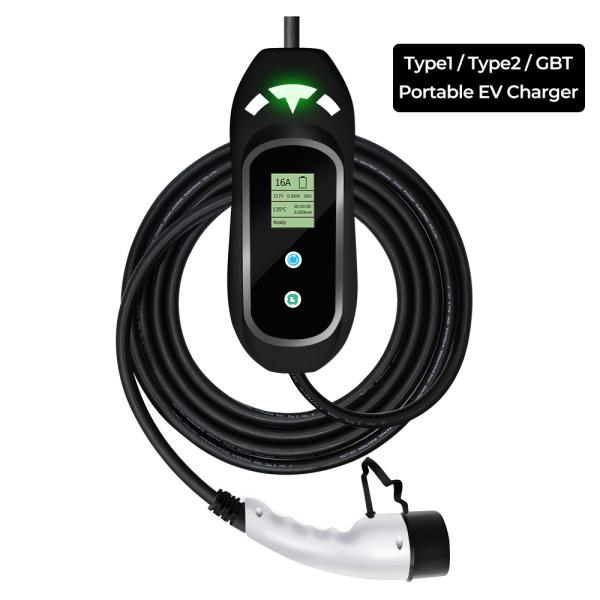

Portable EV Charger
  • 1-10 hours delay charging
  • Rated current: 8A, 10A, 13A, 16A​

​

50HZ/60HZ Portable EV Charger EVSE Box Type 1 Type 2 Mode 2

EV Charger For Electric Cars
  • 8A, 10A, 13A, 16A adjustable current

​

​50HZ/60HZ Portable EV Charger EVSE Box Type 1 Type 2 Mode 2

Real-time monitoring and protection
  • Full link temperature monitoring system
  • When the temperature is higher than 85℃, the EV charger will be cut off within 0.2s

​

​50HZ/60HZ Portable EV Charger EVSE Box Type 1 Type 2 Mode 2

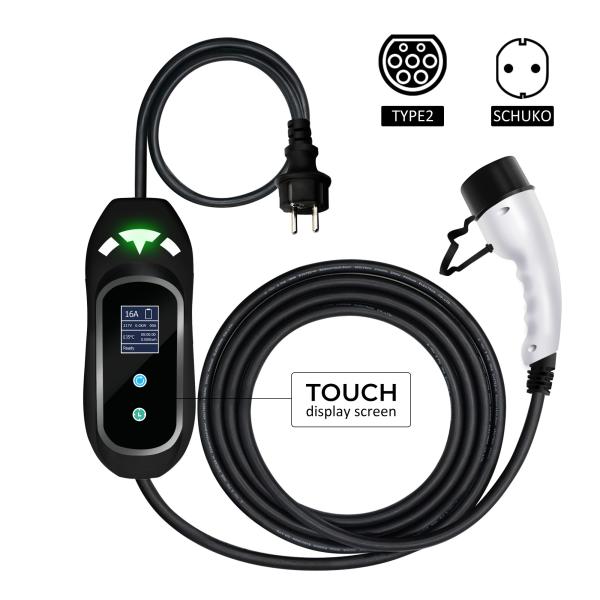

Details Show Of EV Chargers
  • Specializing in the production of EV chargers
  • Length of the cable -- 400cm, length of the control box -- 22.5cm, length of the plug -- 24cm

​

​

50HZ/60HZ Portable EV Charger EVSE Box Type 1 Type 2 Mode 2

Details Show Of EV Chargers

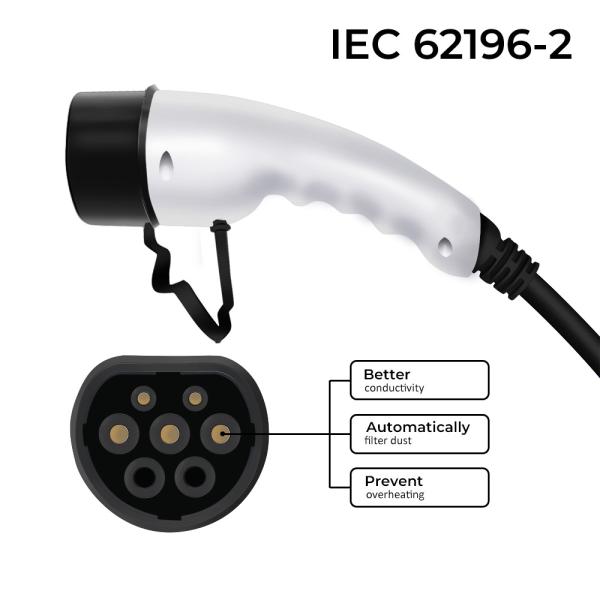

  • Plug -- Sliver plated terminal, special reed structure, integrated design

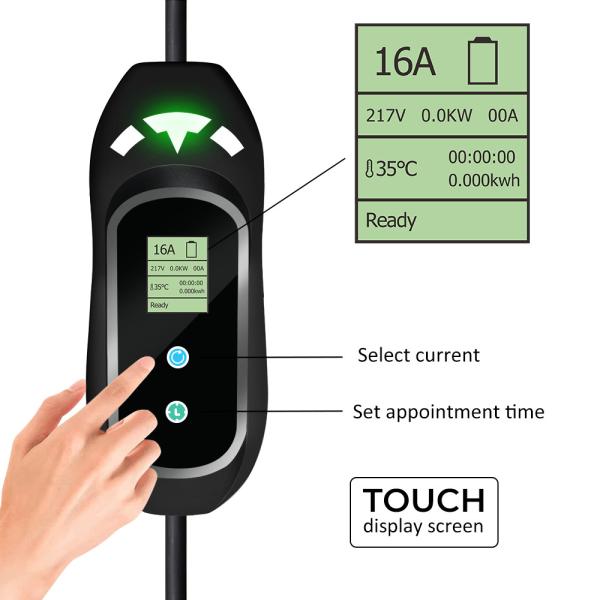

  • Control box -- LED display, automatic error correction, automatic reconnection, strong case, temperature monitoring, waterproof IP65
  • Cable -- International enviornment standards, long service life, low and high temperature resistant

​

50HZ/60HZ Portable EV Charger EVSE Box Type 1 Type 2 Mode 2

Fast Charging
  • Compatible with 99% new energy vehicles

50HZ/60HZ Portable EV Charger EVSE Box Type 1 Type 2 Mode 2

Multiple Safety Protection
  • Temperature protection, lightning protection, short cricuit protection, leakage protection, overload protection, voltage protection, compression protection, protection level IP54, intelligent vehicles matching
