Specifications
Brand Name :
Seagull
Model Number :
DHQ
Certification :
CE
Place of Origin :
CHINA,Jiangsu
MOQ :
100pcs
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
10000
Delivery Time :
30 days
Packaging Details :
High quality double wall carton and steel pallets outside.
Material :
steel
Warranty :
1 year
Condition :
New
Usage :
Construction hoist
Color :
Optional
Description


Varied Specifications Alloy Steel Lifting Clamp DHQ Series Steel Hanging Clamp

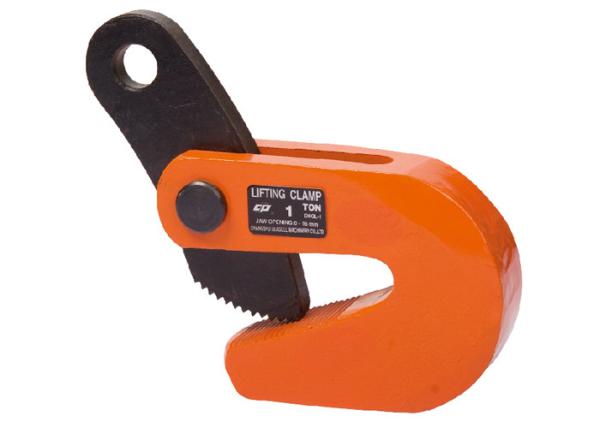

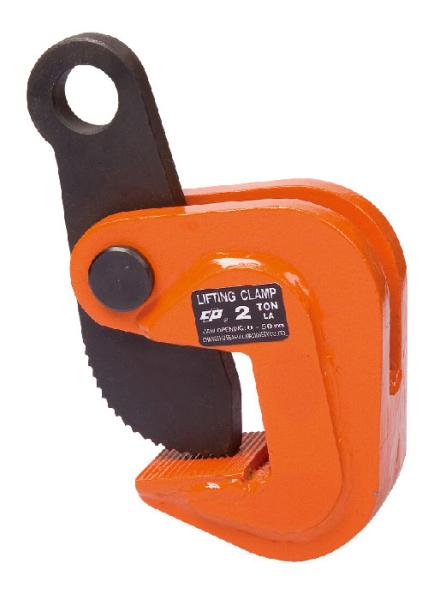

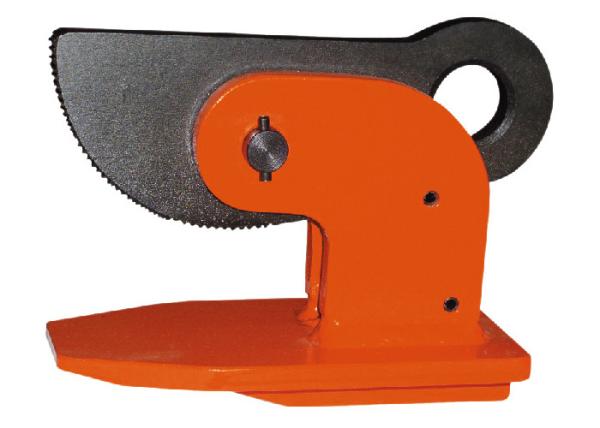

A tool for lifting plate type items. Usually used for clamping and lifting of steel plate.
Varied Specifications Alloy Steel Lifting Clamp DHQ Series Steel Hanging Clamp
Varied Specifications Alloy Steel Lifting Clamp DHQ Series Steel Hanging Clamp
Varied Specifications Alloy Steel Lifting Clamp DHQ Series Steel Hanging Clamp

ModelDHQ-0.8DHQ-1DHQ-1.6DHQ-2DHQ-3DHQ-4DHQ-5DHQ-6DHQ-6(B)DHQ-8DHQ-10
Rated capacity(t)0.81.01.62.03.04.05.06.06.08.010.0
Test load1.62.03.24.06.08.010.012.012.016.020.0
Jaw opening(mm)0-250-300-300-400-450-500-550-650-1300-1000-125
Net Weight(mm)2.53.54.05.06.06.57.510.522.022.033.0


Varied Specifications Alloy Steel Lifting Clamp DHQ Series Steel Hanging Clamp

ModelDHQA-1DHQA-2DHQA-3DHQA-5DHQA-6DHQA-10
Rated capacity(t)1235610
Test load246101220
Jaw opening(mm)0-300-500-6010-8010-10020-120
Net Weight(mm)45.5811.514.530

Varied Specifications Alloy Steel Lifting Clamp DHQ Series Steel Hanging Clamp

ModelDHQL-0.8DHQL-1DHQL-1.6DHQL-2.5DHQL-2.5(B)DHQL-3DHQL-3(B)DHQL-5DHQL-5(B)
Rated capacity(t)0.81.01.62.52.53.03.05.05.0
Test load1.62.03.25.05.06.06.010.010.0
Jaw opening(mm)0-150-200-250-3025-500-4030-600-5050-80
Net Weight(mm)246.5111112.512.51920











Varied Specifications Alloy Steel Lifting Clamp DHQ Series Steel Hanging Clamp

ModelDHQK-3DHQK-4.5DHQK-6DHQK-8DHQK-15
Rated capacity(t)3.04.56.08.015.0
Test load6.09.012.016.030.0
Jaw opening(mm)0-1800-2400-2400-2400-240
Net Weight(mm)1926405172

Varied Specifications Alloy Steel Lifting Clamp DHQ Series Steel Hanging Clamp

ModelDHQP-1.5DHQP-3DHQP-5
Rated capacity(t)1.53.05.0
Test load3.06.010.0
Jaw opening(mm)0-500-500-60
Net Weight(mm)4.3612


Varied Specifications Alloy Steel Lifting Clamp DHQ Series Steel Hanging Clamp
Steel plate clamp type has a lot of, the applicable scope is very wide ,for example, shipyard , installation of steel structure , steel market, machining, cutting steel, steel plate handling, etc.
Varied Specifications Alloy Steel Lifting Clamp DHQ Series Steel Hanging Clamp


Varied Specifications Alloy Steel Lifting Clamp DHQ Series Steel Hanging Clamp
Steel plate clamp light weight, simple structure, easy to use. These products made from low carbon alloy steel forging quality. Ensure the impact resistant capacity, bearing capacity, ductility, and elongation of such tools.


Varied Specifications Alloy Steel Lifting Clamp DHQ Series Steel Hanging Clamp
These products made from low carbon alloy steel forging quality. Ensure the impact resistant capacity, bearing capacity, ductility, and elongation of such tools.
