All Steel Construction Manual Chain Pulley Block Hoist Capacity 500kg Standard Lift 10ft
All Steel Construction Manual Chain Pulley Block Hoist Capacity 500kg Standard Lift 10ft
All Steel Construction Manual Chain Pulley Block Hoist Capacity 500kg Standard Lift 10ft
All Steel Construction Manual Chain Pulley Block Hoist Capacity 500kg Standard Lift 10ft
All Steel Construction Manual Chain Pulley Block Hoist Capacity 500kg Standard Lift 10ft
All Steel Construction Manual Chain Pulley Block Hoist Capacity 500kg Standard Lift 10ft
Specifications
Brand Name :
SEAGULL
Model Number :
HSZ-A
Certification :
CE,GS
Place of Origin :
China
MOQ :
100pcs
Price :
Usd27-Usd1000
Payment Terms :
L/C, D/P, T/T, Western Union
Supply Ability :
12000Pcs/Month
Delivery Time :
30 Days After Confirm The Pi
Packaging Details :
Double Wall Carton&Steel pallet
construction :
For lifting use
condition :
new
rated load :
500kg
NO. of load chain :
1
package :
carton or wooden case
Description

All Steel Construction Manual Chain Pulley Block Hoist Capacity 500kg Standard Lift 10ft

Production Description

*Strong design, all steel construction

*Open frame design for self-cleaning,

*quick load sheave inspection and easy hoist maintenance

* Load chain sprocket with precision machining has been got well heat-treatment

All Steel Construction Manual Chain Pulley Block Hoist Capacity 500kg Standard Lift 10ft
Technical Parameters

KEY SPECS
Model HSZ-0.5K HSZ-1K HSZ-1.5K HSZ-2K HSZ-2K HSZ-3K HSZ-5K HSZ-10K HSZ-20K HSZ-30K
Rated load (T) 0.5 1 1.5 2 2 3 5 10 20 30
Standard lift (m) 2.5 2.5 2.5 2.5 2.5 3 3 3 3 3
Test load (T) 0.75 1.5 2.25 3 3 4.5 7.5 12.5 25 37.5
Efforts required at capacity (N) 262 324 395 380 330 402 430 438 438 442
Diameter of load chain (mm) 5 6 7.1 8 6 7.1 10 10 10 10
No. of load chains 1 1 1 1 2 2 2 4 8 10

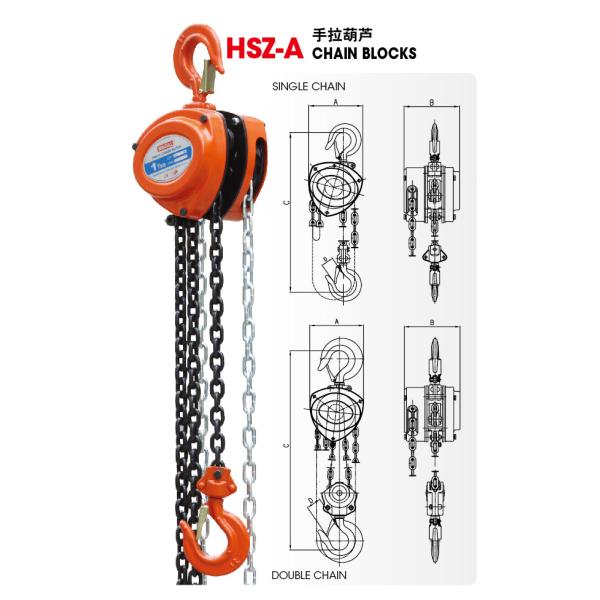

Dimensions (mm) A 127 156 180 181 156 180 230 410 645 710
　 B 115 131 142 148 131 142 171 171 215 398
　 C 288 334 415 435 459 536 660 738 1002 1050
Net weight (kg) 7 10.5 15.5 18.5 16 23 39 69 155 237
Extra weight per meter of extra lift (kg) 1.5 1.8 2 2.4 2.7 3.2 5.3 9.8 19.6 23.9
