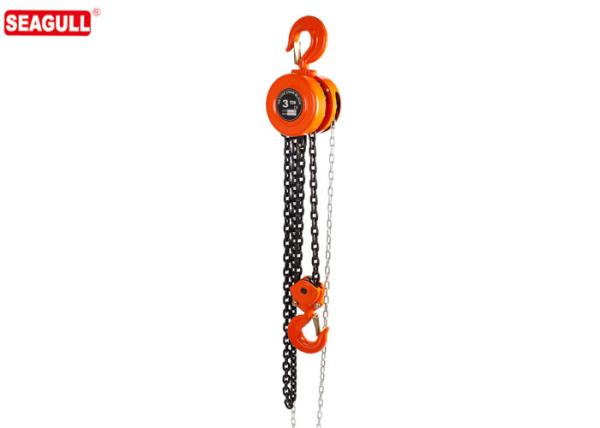

Rated Capacity 3 Ton Manual Hoist Chain Pulley Block With Drop Forged Hooks
Rated Capacity 3 Ton Manual Hoist Chain Pulley Block With Drop Forged Hooks
Rated Capacity 3 Ton Manual Hoist Chain Pulley Block With Drop Forged Hooks
Rated Capacity 3 Ton Manual Hoist Chain Pulley Block With Drop Forged Hooks
Rated Capacity 3 Ton Manual Hoist Chain Pulley Block With Drop Forged Hooks
Rated Capacity 3 Ton Manual Hoist Chain Pulley Block With Drop Forged Hooks
Specifications
Brand Name :
SEAGULL
Model Number :
HSZ-E
Certification :
CE GS
Place of Origin :
China,Jiangsu
MOQ :
100pcs
Price :
Negotiable
Supply Ability :
150000 pcs per year
Delivery Time :
30 days
Packaging Details :
High quality double wall carton and steel pallets outside.
Material :
Alloy steel
Condition :
New
Usage :
Construction hoist
Color :
Optional
Warranty :
1 year
CAPICITY :
2 ton
chain :
G80
Description

Rated Capacity 3 Ton Manual Hoist Chain Pulley Block With Drop Forged Hooks

features:

  • Capacity from 0.5T to 30T
  • Got certificate of ISO9001
  • Automatic double-pawl braking system.
  • Asbests-free brake discs.
  • Drop forged hooks and hook holders to ensure superior quallity and safety
  • More thickness of sheet cover,gear cover and side plates for good quality.
  • The static test is 4 times of capacity,and running test is 1.5 times of capacity one by one


technical parameters

HSZ-E CHAIN BLOCKS 0.5Ton-30Ton
ModelHAS-0.5EHSZ-1EHSZ-1.5EHSZ-2EHSZ-3EHSZ-5EHSZ-10EHSZ-20EHSZ-30E
Rated load(T)0.511.5235102030
Standard lift(m)2.52.52.52.533333
Test load(T)0.751.52.2534.57.512.52537.5
Efforts required at capacity(N)262314343318347382390390394
Diameter of load chain(mm)6686810101010
No. of load chains1112224810

Dimensions (mm) A
B
C
D

142
126
280
28

142
126
300
32

178
142
360
38

142
126
380
40

178
142
470
44

210
165
600
50

358
165
730
64

580
195
1000
82

688
394
1050
82

Net weight (kg)9.510.517.514.5233568155233
Extra weight per meter of extra lift(kg)1.71.72.42.53.75.39.719.423.9
