Aluminium Hand Winch 800kg-5400kg , wire rope pulling hoist, length 20 M, CE/GS certified
Aluminium Hand Winch 800kg-5400kg , wire rope pulling hoist, length 20 M, CE/GS certified
Aluminium Hand Winch 800kg-5400kg , wire rope pulling hoist, length 20 M, CE/GS certified
Aluminium Hand Winch 800kg-5400kg , wire rope pulling hoist, length 20 M, CE/GS certified
Aluminium Hand Winch 800kg-5400kg , wire rope pulling hoist, length 20 M, CE/GS certified
Aluminium Hand Winch 800kg-5400kg , wire rope pulling hoist, length 20 M, CE/GS certified
Specifications
Brand Name :
SEAGULL
Model Number :
ZNL
Certification :
CE/GS TUV RHEINLAND
Place of Origin :
CHINA
MOQ :
100pcs
Payment Terms :
L/C, T/T
Supply Ability :
3000PCS PER MONTH
Delivery Time :
35DAYS
Packaging Details :
CARTONS, POLYWOOD CASE
Description

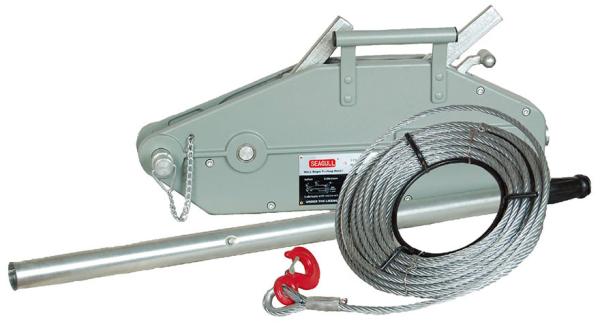

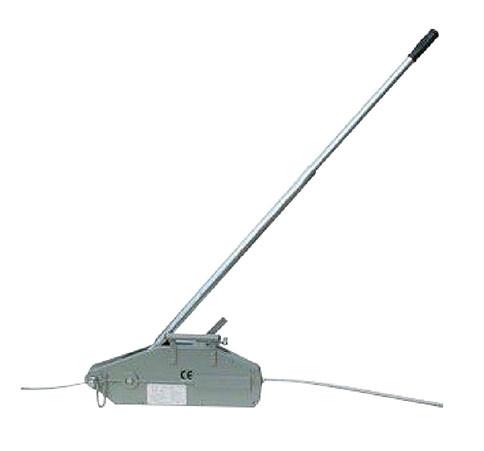

Aluminium Hand Lifting Winch 800kg - 5400kg Wire Rope Pulling Hoist

DESCRIPTION

1. Capacity from 0.8T to 5.4T

2. High quality aluminium body

3. Lifting Height : 20 m (standard)

* Hight Quality Aluminum Body.

* Capacity range: 0.8t,1.6t,3.2t, 5.4t

* Wire rope length:20m.

* CE/GS approved.

* One year warranty

KEY SPECS

Model

ZNL-800

ZNL-1600

ZNL-3200

ZNL-5400

Rated forward hand power (N)

341

438

438

745

Rated capacity (kg)

800

1600

3200

5400

Rated forward travel (Swing it forward and backward)

≥52

≥55

≥28

≥30

Rope diameter (mm)

8.3

11

16

20

Wire rope safety factor load capacity (times)

5

5

5

5

Safety factor & static load capacity (times)

4

4

4

4

Max. travelling load (kg)

1200

2400

4000

8000

Max. outer size(mm)

A

426

545

660

930

B

238

284

325

480

C

64

97

116

152

L1(cm)

80

80

80

80

L2(cm)

80

120

120

120

Net weight (kg)

14.6

26.4

49.3

98
