1T - 10T Steel Plate Lifting Clamps With Forged Head And Forged Gear Set
1T - 10T Steel Plate Lifting Clamps With Forged Head And Forged Gear Set
1T - 10T Steel Plate Lifting Clamps With Forged Head And Forged Gear Set
1T - 10T Steel Plate Lifting Clamps With Forged Head And Forged Gear Set
Specifications
Brand Name :
SEAGULL
Model Number :
DHQA
Certification :
GS/CE
Place of Origin :
CHINA
MOQ :
100pcs
Price :
Negotiation
Supply Ability :
8,000pcs per month
Delivery Time :
30 working days after received your down payment
Packaging Details :
Packed in carton firstly,and then reinforced with steel case for outer packing
Payment Terms :
LC, TT
Product Name :
Horizontal Plate Clamp
Application :
Warehouse, Building, Wharf, Ect.
Capacity :
1t - 10t
Surface :
Painting, Chorme
Standard :
GS/CE
Type :
Manual
Description

Product Description

1T - 10T HORIZONTAL PLATE CLAMP

Vertical plate clamp features pivoting bale for easier and more versatile operation. Not designed for use on stainless steel or aluminum plates. For use with materials with a

surface hardness to 30 RC (300 HB).

Advantages

• Pivoting bale for easier and more versatile operation
• Automatic serrated hardened steel cams and pads
• Drop-forged steel case for maximum strength
• Warning: Do not exceed the working load limit. Serious bodily injury or property damage may result
• Do not use plate clamps to lift loads less than 20% of rated capacity. Lift only one plate at a time.

Plate must be clean and free of oil

* Capacity from 2T to 6T.

* Forged head and forged gear set ensure the durability and safety.

* Gripper is HRC 52-57 for longlife use.

* More thickness of the steel plates to ensure the good safety.

* One year guarantee.

Technical Parameters

Model DHQA-1 DHQA-2 DHQA-3 DHQA-5 DHQA-6 DHQA-10
Rated capacity(T) 1 2 3 5 6 10
Test load 2 4 6 10 12 20
Jaw opening(mm) 0-30 0-50 0-60 10-80 10-100 20-120
Net Weight(kg) 4 5.5 8 11.5 14.5 30

Application

Applicable to construction, industrial, commercial, vertical lifting work

Product instructions

To a single test for the rated load, lifting operations in a single or two groups of use, lifting the factory may not be hit by hanging objects, the test load of 2 times the maximum working load, is strictly prohibited overload

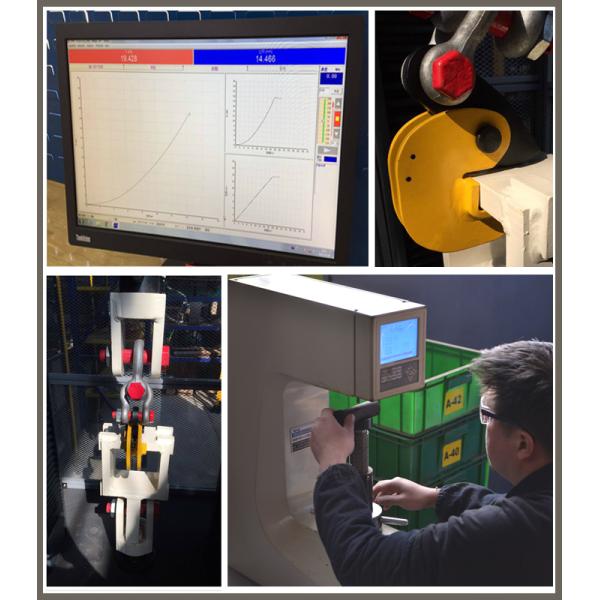

Test

1T - 10T Steel Plate Lifting Clamps With Forged Head And Forged Gear Set

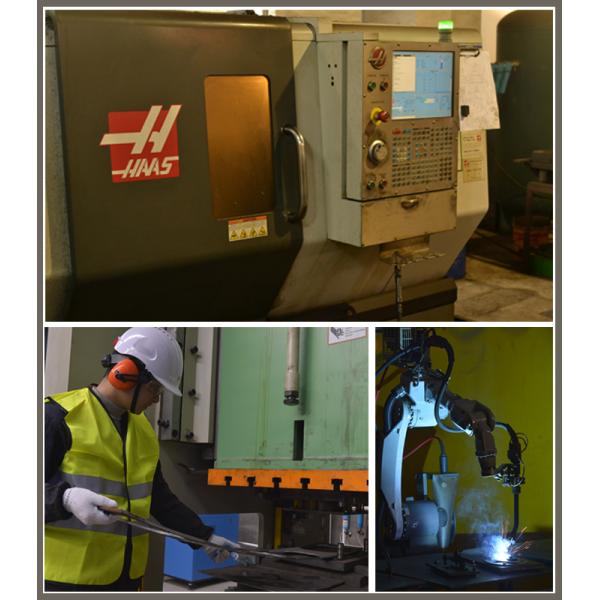

Product line

1T - 10T Steel Plate Lifting Clamps With Forged Head And Forged Gear Set

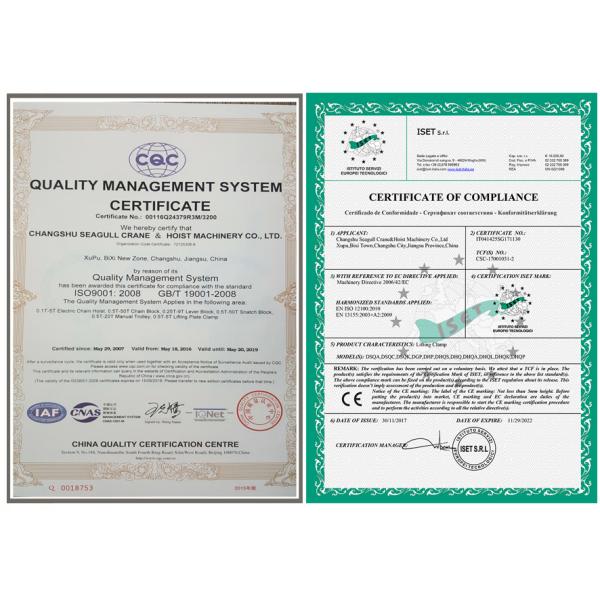

Certificate

1T - 10T Steel Plate Lifting Clamps With Forged Head And Forged Gear Set
