Electric Hydraulic Tilting Lift Tables, Tilting Lift Platforms Are In Industrial Applications

Description:

• The Tilting Lift Table allows independent control of lift and tilt to precisely position containers or other items at the optimum height and tilt angle. Tilting Tables with their exclusive Universal Tilter Base (UTB) compensate for the shifting center of gravity as loads are tilted. The open frame top allows the tilting hydraulics to retract within the frame resulting in a lower profile when in the full down position. Lift and Tilt Tables with UTB also feature a shorter but wider stance for improved stability in a small footprint.

Noted: Usually Hydraulic Tilting Lift Tables width is 2000mm, if over 2000mm width, it will need to spliced platform. And also can be custom as your requirements!

Main Features:

• 1. Reinforced anti-skid diamond work table
• 2. Heavay duty & high strong deck construction
• 3. Anti-skid high-strength chequered platform, and lip for optional, need or not.
• 4. Full width one -piece lip option (hinges pin type or sleeve type)
• 5. Heavy duty high pressure cylinders
• 6. First class hydraulic power unit, good seal capacity and long life
• 7. Safety protected 1, with Explosion Proof Lock Valve
• 8. Safety protected 2 for optional, with Safety toe guard to protect users

Parameters & Details:

• Electric system: Schneider contactor, CHINT electrical components ( Made In China)
• Hydraulic System: Hycman brand power pack(Made In China) , Oiltec (Import brand) or as requirements
• Scissor Arm Support: Hi-strength Manganese steel rectangle tube Q345 B
• Platform Surface : Antiskid checkered plate steel
• Main Support: 10# I beam
• Deck lip platform steel thickness:6mm/8mm/10mm checkered plate(If need lip)
• High-pressure Oil Pipe: Double wire-steel mesh in hydraulic rubber hose

Optional Configuration:

• Hydraulic Power Pack: China power pack or imported power pack as your requirements

Applications:

1. Site: Work Shop, logistic center, warehouse loading bay, etc.

2. Hydraulic Tilting Lift Tables Application: Lifting and Loading/unloading Cargo etc.

Hydraulic Tilting Lift Tables Safety precautions:

1. Emergency valves

2. Anti- Explosion safety valves between oil cylinder and oil tube.

3. Number of floor layers indicator

4. Door inter-locking device if indeed need.

5. Over height protect

6. Running indicator

7. Over load alarm

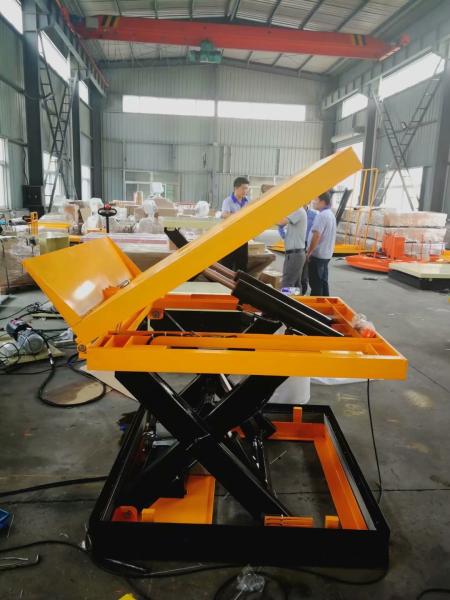

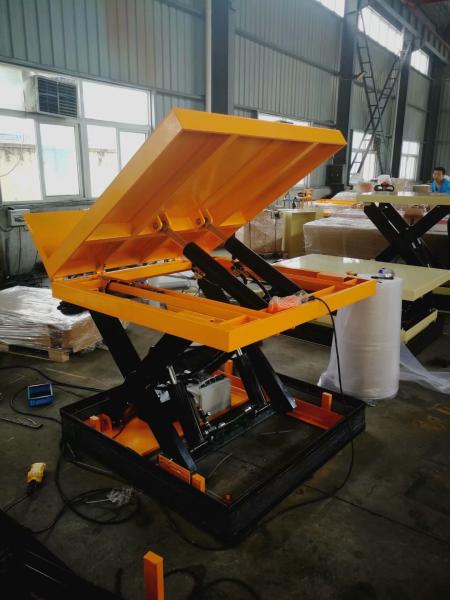

Hydraulic tilt table pictures:
