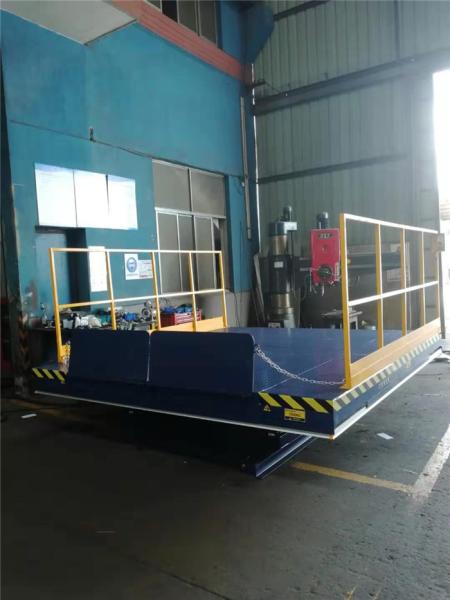

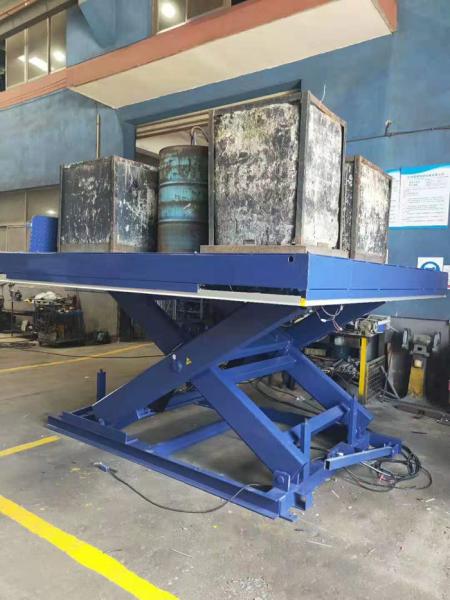

Hydraulic Electric Scissor Lift , Dock Lift With Non Skid Checkered Plate And Manual Lap-jointed Plate

Hydraulic Electric Dock Lift Description:

• Hydraulic Electric Dock Lift can be totally customized according to different load capacity, platform size, and lifting height.It is used to lifting goods between the ground floor and other floors. It is widely used in factory, warehouse, logistic center, airport and so on.

• In many cases, Hydraulic Electric Dock Lift represent the best solution for the manual load handling, in full observance of the safety standards with regards to functioning, cost-saving, safety and health of operators during work.

• The standard Hydraulic Electric Dock Lift is one of the "King Lift" featured products with standard travel height, platform size, and load capacity.This product can be manufactured in an advanced large-scale production line. Good quality and high safety performance contribute "King Lift" standard hydraulic electric scissor lift to become popular lift equipment in many countries.

Noted: Usually dock elevator width is 2000mm, if over 2000mm width, it will need to spliced platform. And also can be custom as your requirements!


Main Features:

• 1. Reinforced anti-skid checkered surface material, which can prevent people and goods slipping down, more safety
• 2. Heavy duty & high strong manganese steel structure
• 3. Anti-skid high-strength chequered platform, and lip for optional, need or not.
• 4. Full width one -piece or two lip for option
• 5. Heavy duty high pressure cylinders
• 6. First class hydraulic power unit, good seal capacity and long life
• 7. Safety protected 1, with Explosion Proof Valve
• 8. Safety protected 2 for optional, with full toe guard to protect users if need
• 9. Application:forklift loading hydraulic dock lift

Parameters:

• Electric system: Schneider contactor, CHINT electrical components ( Made In China)
• Hydraulic System: Hycman brand power pack(Made In China) , Oiltec (Import brand) or as requirements
• Scissor Arm Support: Hi-strength Manganese steel rectangle tube Q345 B
• Platform Surface : Antiskid checkered plate steel
• Main Support: 10# I beam
• Deck lip platform steel thickness:6mm/8mm/10mm checkered plate(If need lip)
• High-pressure Oil Pipe: Double wire-steel mesh in hydraulic rubber hose

Hydraulic Electric Dock Lift Precautions:
1. Manual decline valve
2. Explosion proof valves between oil cylinder and oil tube.
3. Number of floor layers indicator
4. Door inter-locking device if indeed need.
5. Over height protect
6. Running indicator
7. Over load alarm system if need

Optional Configuration:

• Hydraulic Power Pack: China power pack or imported power pack as your requirements

Applications:
1. Site: Work Shop, logistic center, warehouse loading bay system, etc.
2. Dock elevator application: Lifting and Loading/unloading Cargo as dock leveler function, etc.


Hydraulic Electric Dock Lift Sketch:
