Scissor Mechanism Hydraulic Dock Lift , Electric Dock Lift Lifting And Lowering Goods

Scissor Hydraulic Dock Lift Description:

• Hydraulic dock lift with scissor mechanism line up a load to any truck bed height with the push of a button. Designed for permanent installation or portable use.Hydraulic dock lift with a heavy-duty, solid-steel scissor construction and powerful hydraulics system make its running safely and efficiently.Also accommodate even the highest trucks.

Noted: Usually Scissor Hydraulic Dock Lift width is 2000mm, if over 2000mm width, it will need to spliced platform. And also can be custom as your requirements!


Main Features:

• 1. Reinforced anti-skid checkered surface material, which can prevent people and goods slipping down, more safety
• 2. Heavy duty & high strength manganese material construction
• 3. Anti-skid high-strength chequered platform, and lip for optional, need or not.
• 4. Full width one -piece or two lip for option
• 5. Heavy duty high pressure cylinders
• 6. First class hydraulic power unit, good seal capacity and long life
• 7. Safety protected 1, with Explosion Proof Valve
• 8. Safety protected 2 for optional, with Safety toe guard to protect users if need
• 9. Scissor lift mechanism

Parameters:

• Electric system: Schneider contactor, CHINT electrical components ( Made In China)
• Hydraulic System: Hycman brand power pack(Made In China) , Oiltec (Import brand) or as requirements
• Scissor Arm Support: Hi-strength Manganese steel rectangle tube Q345 B
• Platform Surface : Antiskid checkered plate steel
• Main Support: 10# I beam
• Deck lip platform steel thickness:6mm/8mm/10mm checkered plate(If need lip)
• High-pressure Oil Pipe: Double wire-steel mesh in hydraulic rubber hose

Scissor Hydraulic Dock Lift Precautions:
1. Emergency valves
2. Anti- Explosion safety valves between oil cylinder and oil tube.
3. Number of floor layers indicator
4. Door inter-locking device if indeed need.
5. Over height protect
6. Running indicator
7. Over load alarm

Optional Configuration:

• Hydraulic Power Pack: China power pack or imported power pack as your requirements

Applications:
1. Site: Work Shop, logistic center, warehouse loading bay, etc.
2. Scissor Hydraulic Dock Lift application: Lifting and Loading/unloading Cargo as dock leveler function, etc.

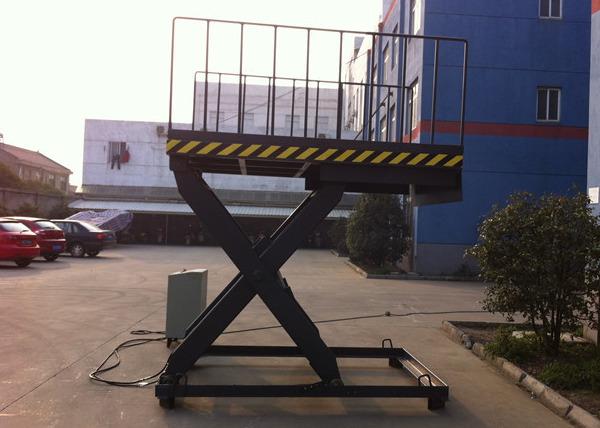

Scissor Hydraulic Dock Lift & Sketch:
