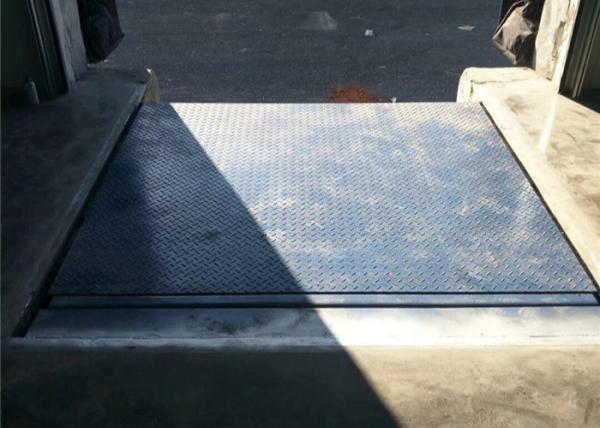

Electric Telescopic Dock Levelers With Retractable Lip Extend Utmost Range To Truck Bed

Electric Telescopic Dock Leveler Description:

• The hydraulic dock leveller with telescopic lip (800/900/1000 mm) offers optimum flexibility for handling all loading situations including end loads. The retractable lip can be extended onto the vehicle bed with the utmost precision.The electric telescopic dock leveler is supported by 8-10 reinforcement beams which provide the dock with greater strength and durability. They also prevent the bed from becoming deformed after a constant passage of vehicles and therefore.A retractable lip reinforced by side guides that ensure uniform sliding.

Noted: Usually the electric telescopic dock leveler width is 2000mm, it also can be custom as your requirements!.The lip can be extended retractable reached to 800mm/900/1000mm different size

Main Features:

• 1. 20mm thickness milling flute plate make the telescopic lip
• 2. 8-10 pieces "C" or "H" beam to support heavay duty deck.
• 3. Anti-skid high-strength chequered steel on the top face of the platform.
• 4. Full width one -piece retractable lip is movement by hydraulic electric oil cylinder.
• 5. Heavy duty high pressure hydraulic cylinders
• 6. First class imported hydraulic power pack, good seal capacity and long lifespan.
• 7. Rubber Bumpers to protect machine-self when the truck back up to dock platform.
• 8. Full range toe guard to protect user when operater use it.

Configurations:

• Electric system: Schneider contactor, CHINT electrical components
• Hydraulic System: ARGO-HYTOS Switzerland brand power pack
• Platform Surface : 6mm/8mm/10mm Antiskid checkered plate
• Main Support: 8-10 pieces" C" type "H" beam under the deck to supporting.
• Deck lip platform thickness: 20mm milling flute plate
• High-pressure oil hose: Double steel mesh in the rubber hose.

Optional Configuration:

• Hydraulic Power Pack:ARGO-HYTOS Swiss brand.
• Electric controller with emergency or without emergency.

Applications:

1. Site: Work Shop, logistic center, big cold storge centre etc.

2. Electric telescopic dock leveler use: Loading/unloading Cargo etc.

Electric Telescopic Dock Leveler​ Sketch:

Electric Telescopic Dock Leveler Safety Precaution:

1. Emergency button

2. Toe guards on both side to protect operation worker feet.

3. Maintaince rod break though the lip fully protect the safety of the serviceman.

4. Bumper block protect the dock leveler it-self when truck reverse to th.

5. Oil tube with steel mesh structure . Max oil pressure 48MPA.

6. Double cylinders support the lip telescopic that so stable and reliable.
